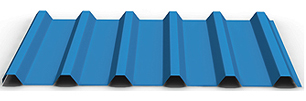

Trapezoidal profile sheet

SUBSTRATE :

Pre painted Galvanised steel sheets.
Pre painted Al- Zn alloy coated steel sheets.
Al- Zn alloy coated natural steel sheets.

AVAILABLITY

THICKNESS : Standard thickness is available in 0.50mm (TCT) it is also available in thickness of 0.60mm (TCT) in pre-painted galvanise subject to quantity.

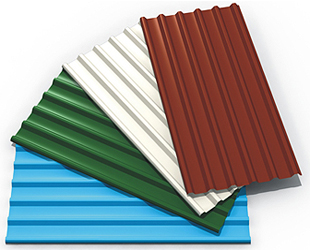

COLOUR : Available in aesthetically pleasing colours along with matching Accessories.
LENGTH: Supplied in cut to required length minimum 600 mm to maximum 7500mm.
APPLICATION : Roof and Wall cladding.

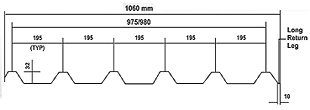

PROFILE

The bureau of Indian Standards has concluded and recommended roof pitch of 18.3 degree as best suited for Indian conditions .The profile is suitable for adaptation to slop as designed .Strong and Economical profile with covering more area per meter square.

TECHNICAL DATA

OVER ALL WIDTH
COVER WIDTH
PITCH
CREST
STANDARDS

- 1060mm
- 975/980mm.
- 195mm.
- 32mm.
- IS14246 -1995 (Pre painted
