IPC supplies high performance VIRGO (Emerson) make Quarter-Turn Ball Valves, which are most commonly used in all the industries. These soft seated Valves provide 100% Leak Proof tight shut off. These Ball Valve are designed to withstand temprature ranging from 200C to 2000C.IPC has supplied ball valves to various industries including Refineries, Fertilizers, Petro-chemicals, Pharma, Food etc. Available in two piece and three piece design, these ball valves are known for their sturdy construction and higher degree of sealing.
Features

• Sturdy Construction, easy to assemble and Install
• Available in standard as well as customized configurations

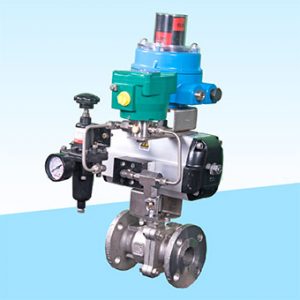

Floating Ball Valve (Virgo-Emerson)

Floating ball valves come in two and three piece design. Available in standard as well as customized configurations. These ball valves are ideal for economical automation. Floating ball valves are easy to install and maintain, combine superior performance and fast maintenance.
Floating ball valves are widely used across many industries and are considered as one of the most trusted valves.

• Low torque design of ball valves make them very easy to operate with minimum effort
• Sturdy Construction, easy to assemble and Install
• MOC - WCB, CF8, CF81X, CF3, CF3M, WGC, wCG, Class II 400 & Class #8

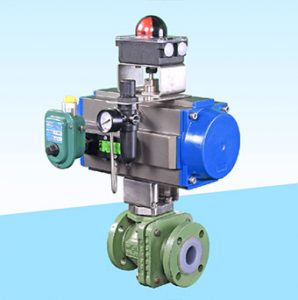

Pfa Lined Ball Valve

PFA Line ball valves are ideal for processes where very corrosive or reactive materials are handled. PFA Lined Ball Valves provide a trusted solution for majority of chemical applications while maintaining highest level of performance. These valves are widely used in industries like chemical, minerals, fertilizers, pharma etc.

• IPC offers all metal components in investment castings, ensuring intact and homogeneous lining and having an overall even thickness of lining at intricate contours
• IPC can offer flange dimensions in DIN, ANSI and JIS standards
• IPC Valves are all with ISO mounting pad design, enables mounting of actuators very easy
• IPC provides all lining materials for corrosive applications such as PFA, FEP, PVDF, ETFE, ECTFE and PPH
• IPC standard body casting material is ASTM A 216 GR. WCB and upon requirement can also provide ASTM A 351 GR. CF 8 or CF 8 M / ASTM A 890 GR. 4A (CD3MN) / Super Duplex
• Bubble-tight shutoff
• Low maintenance & low emission

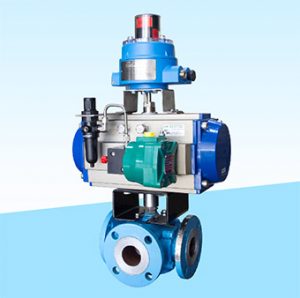

3 Way Ball Valve (L Port/T Port)

IPC Supplies 3 way Ball Valves in two designs, L Port & T Port. L Port ball valves are valves with L shaped opening. Here the ball is drilled from two different sides exactly at 90° to each other. This three way type ball valve is one of the most commonly used. In case of T port ball valve, valve opening resembles T shape. I have pressure drop is relatively closs a compared L Port when flow is in straight direction. Manufactured with high quality material, Way Valves are ideal for applications like diversion of a flow from one tank to another tank, Switching between the pumps, mixing etc. These Valves offer versatile configurations, easy automation and cater to various pressures and temperatures.

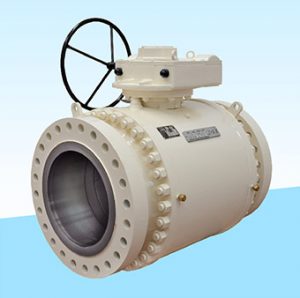

Trunnion Mounted Ball Valve (Virgo-Emerson Make)

IPC offers Trunnion Mounted Ball Valve in Two piece and Three piece design and full bore and reduced bore option. The trunnion ball valve is a form of quarter-turn valve which uses supported ball to allow or stop flow through it. Trunnion ball Valves offer lower operating torque, ease of operation and minimized seat wear. These Trunnion mounted Ball Valves come with blowout proof stem design to avoid sudden dislodging of stem due to abnormally high pressure. These valves have a fire safe design by default.

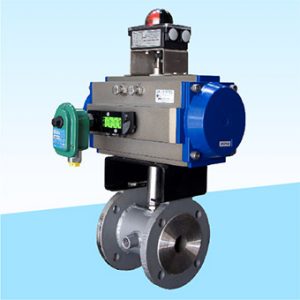

Jacketed Ball Valve

IPC manufactures jacketed ball valve with options of full bore and reduced bore. These type of ball valve are ideal where temperature of media through the valve is required to be maintained at specific levels. IPC's Jacketed ball valves are designed to provide maximum safety, sealing integrity and reliability.

• High quality packing rings to ensure superior performance
• Designed to avoid seat deformation and cold flow
• Fully welded jacket in carbon steel covering from flange to flange

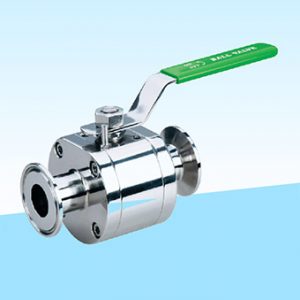

Cavity Filled Ball Valve

Cavity filled ball valves are ideal for materials like Polymer, Monomer, slurries etc where media is in form of fluids, semi solids and high viscosity. When media contains high sticking properties Cavity Free Ball Valve is an only solution to ensure valve's longer life and consistent performance. Cavity free Ball Valves are designed in such a manner that the cavities between the ball, body and stem are totally eliminated, thereby stopping process of media sediment build up inside the valve.

• IPC's Cavity filled ball valves are capable to handle all sorts of media
• Contamination and cavity free valve with assured 100% tight shut off
