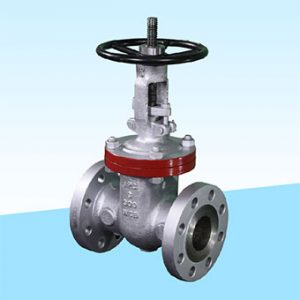

IPC manufactures the full range of Gate Valves, which are ideal for bi-directional, low friction flow and shut-off as per international standards. Due to the flow characteristics of the wedge to seat design, Gate Valves are always operated in the full close or full open position.

IPC offer wide range of sizes in gate valve right from 2" to 24" (DN- 50 to DN -600) and pressure rating ranges from #150 to #2500. Higher pressure rating and bigger sizes can also be provided.
Pressure Rating : #150 Through #2500 (Higher Pressure classes available on request)
Sizes : 2" TO 24" (DN-50 TO DN-600) (Bigger sizes available on request)
MFG Standards BS 1883 / ASME B16.34
Standard Connections : Flanged / Buttweld

Forged Steel Gate Valve

Globe Valves from IPC are ideally unidirectional. These can be utilized for isolation as well as for flow control. The flow characteristics of a Globe Valve are easy to control hence flow control can be achieved at any open position. This makes the design suitable for throttling application. Globe valves have superior strength and long cycle life. Pillar yoke construction provides easy access to bonnet & packing rings for maintenance. All valves are manufactured in accordance with the latest industry standards.

Category: Gate Valves

Product line:Standard & Pressure seal Gate Valve

• Seat is hard faced, ground and lapped to a very smooth finish.
• Wedge is ground and lapped to a very smooth finish and optimally guided to prevent dragging and seat damage
• Rising stem with trapezoidal treads and burnished finish for best in class gland sealing
• Body and bonnet joint accurately machined
• One-piece bonnet up to DN 300 for better alignment and fewer parts

Features

• Flanges: Standard as per B16.5, and others as per BS, AWWA, EN, DIN Etc
• Raised face with serrated finish (125-250 AARH) – Other options available
• Seat rings are seal welded with body to eliminate leakage and accidental loosening of the seat ring
• One piece bonnet design
• Flexible wedge/Split wedge with balanced design to minimize vibrations due to flow
• Highly finished seat face with lapping
• Rising stem – trapezoidal threads and burnished finish
• Pillar yoke construction for easy access to bonnet & packing rings for maintenance
• One piece cast flexible wedge that minimizes stress concentration

Benefits

• Thoughtful design delivers accurate performance
• Automatically adjusts the slight misalignments caused by pipeline deflections & thermal deformation
• Manufacturing with advanced processes for best results and longevity
• Superior strength due to Single piece forged Stem
• Minimum torque due to flexible wedge/Split wedge construction
