It is the equipment for flow control of material solid material.

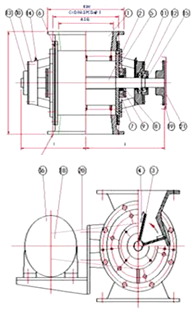

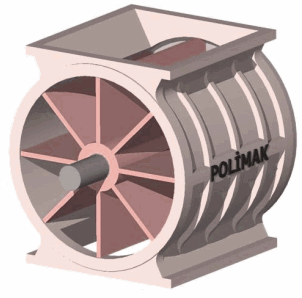

Avail from us an efficient range of Rotary Airlock Valves that is also referred as Rotary Air Feeder and is extremely used for dust discharge device. It is better than gravity operated Double Flap Valve as it gives continuous discharge and has a better air tightness. While discharging dust, the valve prevents gas leakage through the inlet opening. This valve consists of a cast or fabricated housing that is provided with a rotor and a shaft. The fins of the rotor are welded to the shaft. The volume of rotor is determined by the empty space between the two fins. On each rotation, dust that is held in the pocket is discharged. And depending on the applications, material of constructions are decided whether cast iron mild steel fabrication should be used or stainless steel.

Our range of Drop Thru Rotary Airlock Valve is the standard unit and used in most applications. These Rotary Airlock Valves is designed with thick Housing, thick Blades with Out-Board mounted Bearings so that these Valves work in high temperature applications.

Uses : Ash handling company, Coal handling company, Insecticide /Pesticide Company, Chemical company.

Application Areas

• Conveying systems
• Pneumatic Conveying Systems
• Air Pollution Systems, Powder
• CE Marked

Some of the industries to which our screw conveyor caters to include the following:

• High performance
• Corrosion resistance
• Durability
• CE Marked Components and Entire System
