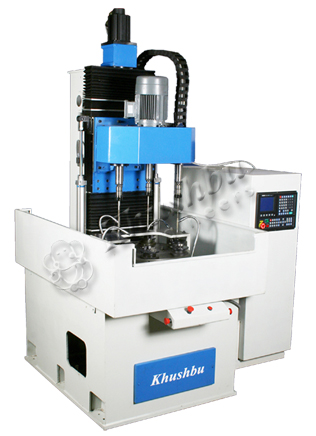

Single Pass Honing Machine (SP-450)
SP 450 is a four spindle machine for components of bore dia up to 38 mm. Here the configuration is four spindle and six stations. Two stations are idle always for loading / unloading of the component. This machine is suitable for stock removal of 30-40 mm .App. per spindle stock removal is 10-15 mm
Standard Machine Design features
- Two axis CNC controller.
- CNC Servo controlled vertical axis.
- High precision rotary index table.
- Vertical stroke 450mm.
- Rigid, compact machine base.
- Electrical panel with isolation transformer.
- Machine table with Six fixtures stations
- Optional servo spindle feature available for pre size process control.
summary of the benefits
- Longer tool life, Less cost per piece.
- Very High output
- Consistent accuracy
- Superior bore quality
- Better size repeatability.
- Operator skill eliminated.
- Pick & Place arrangement to reduce labour cost (Optional)
