Our Products

DISTRIBUTION AND POWER TRANSFORMERS

Step up or Step down up to 33 KV Class of Voltage and up to 10 MVA Capacity. Low loss Transformers for specific requirements. Transformers with O/C Tap Changer or On Load Tap Changer with Control Panel.
[ Type Tested :- 11 KV- 63 KVA , 11 KV - 100 KVA, & 11 KV – 200 KVA Capacity Transformer ]

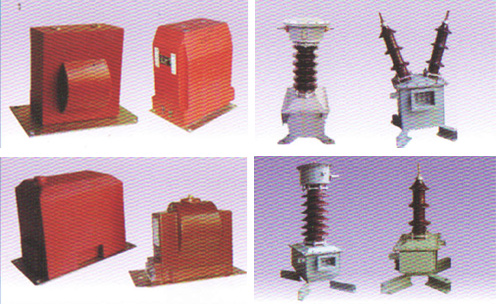

HIGH TENSION CURRENT TRANSFORMERS

[A] INDOOR TYPE
• Epoxy Resin Casted , Single Phase, Earthed Type.
• Voltage Class :- Up to 33 KV
• Voltage Factor :- 1.2 Times continuous / 1.9 Times for 8 hours or as desired
• Ratio Accuracy & Out put :- As desired by customers and as per Relevant Standards/ Specification

[B] OUTDOOR TYPE
• Oil Immersed Single Phase, Earthed Type, Hermetically Sealed & Also Resin Cast
• Voltage Class :- Up to 33 KV
• Voltage Factor :- 1.2 Continuous & 1.9 for 8 Hours or as desired.
• Ratio Accuracy & Out put :-- As desired by customers and as per Relevant Standards/ Specification

LOW TENSION CURRENT TRANSFORMERS

Round / Rectangular Windows, Tape, ABS or Epoxy Cast insulation For - Metering & protection applications.
Primary current up to 5000 Amps, Secondary current 1 Amp. & 5 Amps. or as per Customer’s requirement.

Class of Accuracy : 0.5 , 1.0 Burden : 5 VA to 15 VA

METERING CUBICLES / KIOSKS

Generally used by HT Consumers and Confirming to MSEDCL & other SEB’s Specifications. Out door type totally enclosed having provision for input and out put cable terminations, consisting of CT’s & PT’s, internal wiring , Energy Meter ( Optional ), Mechanical and Electronic Locks, Counter. We can manufacture Metering Cubicle as per Customer’s design, horizontal or vertical modules.

Voltage Class :- Up to 33 KV Class of Accuracy :- 0.5S / 0.2S For CT
                                                                               0.5 / 0.2 For PT
Burden :- As desired by Customers.

Other details confirming to relevant standard specifications.

REPAIRS & SERVICING OF ELECTRICAL EQUIPMENTS

We under-take Repairs & Servicing of Electrical Equipments such as – Power Transformers, Distribution Transformers, Special purpose Transformers up to 33 KV voltage class and Rectifiers , Battery Chargers, Welding Machines etc. of almost Types and capacities

We are Registered Electrical Contractor since more than 20 Years in MES [ Military Engineering Services ], HAL [ Hindustan Aeronautics Ltd ] For the work of Supply of Electrical Equipments and its Erection, Installation, Commissioning and also of Repairs/ Maintenance/ Servicing of Transformers.

HIGH TENSION VOLTAGE TRANSFORMERS

[A] INDOOR TYPE
• Epoxy Resin Casted , Single Phase, Earthed Type.
• Voltage Class :- Up to 33 KV
• Voltage Factor :- 1.2 Times continuous / 1.9 Times for 8 hours or as desired
• Ratio Accuracy & Out put :- As desired by customers and as per Relevant Standards/ Specification

[B] OUTDOOR TYPE
• Oil Immersed Single Phase, Earthed Type, Hermetically Sealed & Also Resin Cast
• Voltage Class :- Up to 33 KV
• Voltage Factor :- 1.2 Continuous & 1.9 for 8 Hours or as desired.
• Ratio Accuracy & Out put :-- As desired by customers and as per Relevant Standards/ Specification
