The world of industrial computers has been shaped by us as a trend-setter for two decades. With rugged innovative products with long-term availability. With the high level of technological experience mirrored in every industrial PC. The IPC integrated product series offers you maximum performance with cutting-edge Intel processor technology, pre-installed and activated Windows operating system and integrated communication interfaces.

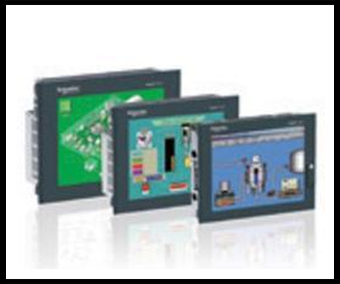

• Graphic terminals with touch screen display available in three sizes.
• Multimedia capabilities with installed Media Player
• Streaming Video, Webcam management and sound from an integrated output.
Web functions -
View all Web pages locally or remotely for easy diagnostics and maintenance.
Connectivity
• Dual Ethernet
• Compact flash card slot.
• 4 USB ports.
• PCMCIA slots on the 15”.
• Access all the PC world peripherals.
• USB storage units.
• USB user interface.
• PCMCIA communication card.
Comfortable user interface
• High definition display of sensitive colourful touch screen.
• Wide viewing angle up to 160°, optimum contrast and brightness.
• USB port on front panel.
Simplified upgrading thanks to dimensions identical to Magelis XBT GT.
Benefits -
Access standard software with Windows.
If the Magelis XBT GTW terminal is already familiar to you, it’s because it uses a Windows environment and allows you to navigate freely on the Web. Associated with Vijeo Designer configuration software, you multiply its potential and benefit from true multimedia functions.
Applications - Simple machines for industry.
• Complex Machines
• Packaging (small labelling machines, small bagging machines)
• Food & Beverages
• Pharmaceutical Industry
• Material Handling System

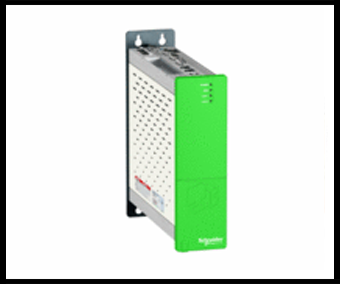

The industrial PC Magelis BOX PC are available in two versions:
• Universal : 1or 2 PCI slots, and Intel Atom N N270 (1,6 GHz) CPU without fan
• Performance: 2 or 5 PCI slots, based on Intel® Core 2 Duo (2,26 GHz) CPU
They benefit from a complete set of components:
• Removable drives
• 5 USB ports
• Dual Gigabit Ethernet
• up to 2 DVI and 3 serial lines
• DVD-RW (depending on the model)
• Microsoft operating systems (WES2009, XP, Ws 7 64…)
• Vijeo Designer run time demo and SCADA Vijeo Citect supervisor option
The Magelis BOX PC range proposes specific options for the most demanding applications:
• redundant RAID hard disk
• battery back-up
Benefits
• Modular design for better adaptability to customer needs
• Complete range of catalogued products, and more than 240,000 combinations of Magelis BOX PC configurations, thanks to the new online iPC configured service.
Certified for automation applications:
• Automation products, harsh environment and marine (depending on the model)
• Easy installation in electrical enclosures thanks to their book format and 24VDC power supply
Ready to be integrated with an IT structure:
• Dual Ethernet to separate data flow
• Based on Microsoft operating systems allowing
• ease of integration with an IT infrastructure
• large data storage management
• connectivity to PC devices, data bases
• multi-tasking capabilities
Applications:Any industrial application
Maintenance free environment:
• Magelis BOX PC without fan
• low dust sensibility
• No filter cleaning
• Magelis BOX PC rotating storage drive.
• Magelis BOX PC without hard drive
• Magelis BOX PC with hard drive

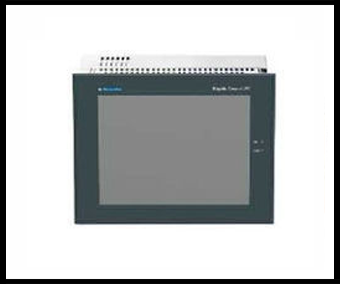

Choose Magelis Compact iPC
Value your knowledge and save valuable time during installation.
Affordable design:
• Appropriate power: Celeron M 1.0 to 1.3 Ghz, Intel Pentium M 1.6 Ghz
• Choice of access.
• embedded Ethernet TCP/IP
• Dual Ethernet network
• Wireless network
• PCI or PCMCIA expansion cards
• More compact for an easy installation
Added value:
• Open: Intel Pentium microprocessor, Microsoft Windows
• Quality interface
• Rugged: Hardened and UL 508, CSA certification
Combined offer:
By combining Magelis Compact iPC and Vijeo Look or Vijeo Designer, you can develop your supervisory applications more easily
Benefits:
The optimum solution for machines
Compact, this new industrial PC incorporates the latest PC technologies. Completely open, its inherent qualities make it an attractive and open-ended solution that is especially suitable for machine manufacturers. Available in 8.4", 12" or 15".
Applications:
Any industrial application.
Maintenance free environment:
• Magelis BOX PC without fan
• low dust sensibility
• No filter cleaning
• Magelis BOX PC rotating storage drive.
• Magelis BOX PC without hard drive
• Magelis BOX PC with hard drive
Industrial PCs with touch screen display available in three sizes.
• 8’’
• 12’’
•15’’ (Magelis Smart)
•15’’ (Magelis Smart+)
Maintenance-free and rugged
• Magelis Smart contain no rotating parts (no hard disk or fan) and offer IP65 protection.
• Same Cut-out than the rest of the Magelis range, 12’’ & 15’’ screens have a front USB port
• Certified for the most demanding standards
• Operating system and applications are located on a write-protected Compact Flash (Magelis Smart) or a 15GB Flash disk (Magelis Smart+) to protect against any kind of damage
Magelis Smart with embedded software.
• Based on Windows XP Embedded, the embedded software consists of MS Office readers, multimedia and email capabilities, .Net and a web browser
• It supports Vijeo Designer HMI run time and the SCADA Vijeo Citect as a Web client
Magelis Smart+, rugged as a terminal and open with Windows XP Pro
• Magelis Smart+ is the first industrial PC without rotating parts and offering all capabilities of Windows XP Pro
• First maintenance free iPC supporting Vijeo Citect SCADA in client / server mode
• As Magelis Smart, it supports also Vijeo Designer run time as an HMI software.
Benefits:
The ideal, maintenance free industrial PC offering all capabilities of Windows
An extension of dedicated terminals and the industrial PC, Magelis Smart is open to the Web. It meets the demands of predefined operator dialogue, display and remote diagnostics.
Available in 8.4", 12" or 15".
Applications:
Any industrial application:
Maintenance free environment:
• Magelis BOX PC without fan
• low dust sensibility
• No filter cleaning
• Magelis BOX PC rotating storage drive.
• Magelis BOX PC without hard drive
• Magelis BOX PC with hard drive
Industrial new external display range.
• To be connected on Magelis Modular iPC but also with any 3rd party PC including office PC.
• 15" TFT XGA 1024 X 768
• 19" TFT SXGA 1280 X 1024
• Touch screen with serial and USB interface
• AC input power
• Same dimension as Magelis Smart & Compact IPC 15"
• Certified UL 508 - CSA
Benefits:
The industrial PC ideal partner
Industrial flat screen monitors, they are designed for use with PCs. Featuring LCD TFT technology, they offer excellent viewing comfort and extended service life.
Applications:
Simple machines for industry
• Complex Machines
• Packaging (small labelling machines, small bagging machines)
• Food & Beverages
• Pharmaceutical Industry
• Material Handling System
