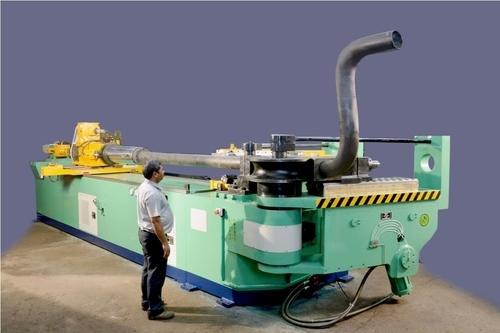

CNC 3 Axes Pipe Bending Machie

Prominent & Leading Manufacturer from Pune, we offer cnc 3 axes pipe bending machine.

TECHNICAL SPECIFICATIONS:CNC150PTX

1.0 CAPACITY :

1.01 Max Tube Dia( OD) mm 168

1.02 Min Tube Dia( OD) mm 50

1.03 Max Wall Thickness mm 18

1.04 Max Bending Radius( Centre Line Radius)* mm 600

1.05 Min Bending Radius ( Centre Line Radius)* D 2

1.06 - 1.07 Max Bending Angle - Min Distance between Bends Degree - mm 200 - 0

2.0 Operation Speed:

2.01 Feeding speed Y mm/sec 200

2.02 Rotating Speed B Deg/Sec 50

2.03 Bending Speed C Deg/Sec 3 To 13

1.0	CAPACITY :
1.01	Max Tube Dia( OD)	mm	168
1.02	Min Tube Dia( OD)	mm	50
1.03	Max Wall Thickness	mm	18
1.04	Max Bending Radius( Centre Line Radius)*	mm	600
1.05	Min Bending Radius ( Centre Line Radius)*	D	2
1.06 - 1.07	Max Bending Angle - Min Distance between Bends	Degree - mm	200 - 0
2.0	Operation Speed:
2.01	Feeding speed Y	mm/sec	200
2.02	Rotating Speed B	Deg/Sec	50
2.03	Bending Speed C	Deg/Sec	3 To 13
