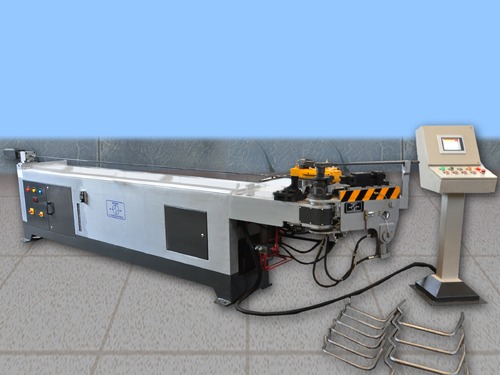

We are a leading Manufacturer of single axis tube bending machine model cnc from Pune, India.
Max Tube Dia( OD) mm 32 Min Tube Dia( OD) mm 6 Max Wall Thickness mm 2.5 Max Bending Radius( Centre Line Radius)* mm 150 Min Bending Radius ( Centre Line Radius)* D 1.5 Bending Angle range Degree 5 to185 Operation Speed: Feeding speed Y mm/sec NA Rotating Speed B Deg/Sec NA Bending Speed C Deg/Sec 30 Speed Accuracies: Feeding mm NA Rotating mm NA Bending mm ± 0.25 Hydraulic length over Mandrill mm 2500 Max Hydraulic Pressure Bar 140 Oil Tank Capacity Lts 300 Operating Voltage 415v,50Hz,3ph Electrical and Electronics: Total Motor power HP 5 PLC Allen Bradley Hydraulics Parts Yuken
