Single Chamber Cleaning System
Oscar offers wide range of industrial cleaning systems of high quality best suited for continuous operation in Indian atmospheric conditions. These equipments consist of a solid state ultrasonic generator and stainless steel tank, mounted with sandwitch type ultrasonic transducers made of piezoelectric crystals specially made for cleaning applications.Ultrasonic transducers convert powerful ultrasonic oscillations produced by the generators into mechanical vibrations. This produces intense scrubbing action throughout the liquid filled in the tank which pulls out contaminants from hidden recesses of complicated assemblies / parts immersed in it for cleaning.
Quality, reliability, Higher productivity etc. are not merely corporate slogans but key elements to success. Ultrasonic cleaning is cost effective, minimise rejection rates, controls pollution and sets standards. Hence, it has a dominant role in industrial cleaning thus helps to achieve the above management objectives.Contaminants like grease, oil, dust, rust, buffing, compound, flux, tar, blood, protein, oxide, ink, radioactivity, polish etc. can be easily removed by radioactivity, polish etc. can be easily removed by using ultrasonic cleaners. Ultrasonic also accelerates the chemical action of cleaning solvents
ULTRASONIC CLEANERS : APPLICATION AREAS
| ELECTRONICS / ELECTRICALS | WATCH AND JEWELLERY | PHARMACEUTICALS |
| PCB's Electronic assemblies, Opto - Electronics, Glass sub strats, Switchgear, Armature | Clock / Time Piece, Watches, Metal straps, Watch Cases, Jewellery Imitation Jewellery, Diamomds and other precious articles | Degassing of solvents before HPLC, Dissolution / Disintegration of sugar coated tablets, mixing of drugs / Herbal formulations etc. |
| HOSPITALS / HEALTHCARE / SCIENTIFIC RESEACH LABS | ATOMIC RESEARCH LABS / NUCLEAR POWER STATIONS / SPACE RESEARCH CENTERS / RAILWAYS | GENERAL INDUSTRIES |
| PCB's Electronic assemblies, Opto - Electronics, Glass sub strats, Switchgear, Armature | Clock / Time Piece, Watches, Metal straps, Watch Cases, Jewellery Imitation Jewellery, Diamomds and other precious articles | Degassing of solvents before HPLC, Dissolution / Disintegration of sugar coated tablets, mixing of drugs / Herbal formulations etc. |
| DEFENCE | ||
| Army base workshops, Naval ships, Ship building centre for cleaning components and machinery parts. Airforce - aircraft components. |
SINGLE CHAMBERS ULTRASONIC CLEANERS : TECHNICAL SPECIFICATIONS
| MODEL/TYPE | ULTRASONIC POWER (AVG.) | TANK SIZE (IN MM.) | TANK CAP (IN LTRS.) |

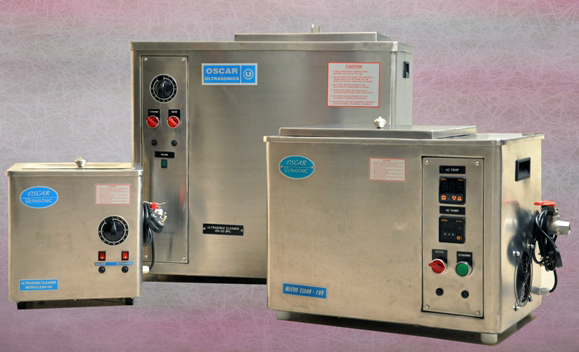

| Microclean -101 | 40 W | 200 x 100 x 70 | 1.0 |
| Microclean -102 | 80 W | 220 x 160 x 80 | 2.0 |

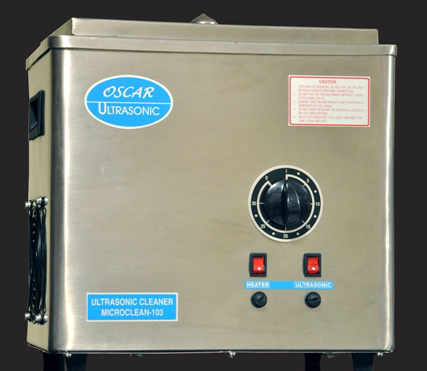

| Microclean -103 | 120 W | 250 x 175 x 90 | 3.0 |

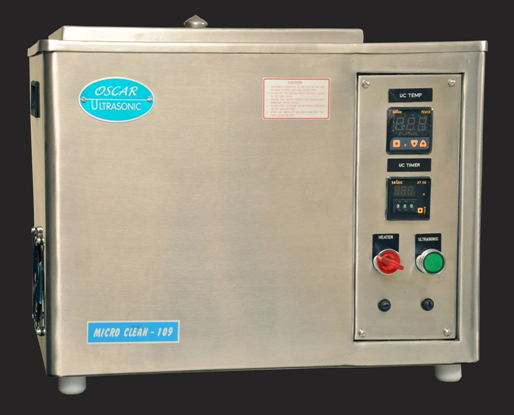

| Microclean -109 | 250 W | 300 x 250 x 125 | 9.0 |
| OU - 23 | 500 W | 450 x 355 x 150 | 23.0 |
| OU - 35 | 750 W | 500 x 350 x 200 | 35.0 |
| OU - 72 | 1000 W | 600 x 400 x 300 | 72.0 |
| OU - 180 | 2000 W | 900 x 500 x 400 | 180.0 |
Our above standard equipments come with SS Lid, SS Brackets, Mechanical Timer and Thermostatically controlled heater. Additional features like digital temperature indicator - cum- controller, digital timer, float switch and cooling coils are provided on request at extra cost
