Grain Handling And Milling

Envirocon specialized in providing Grain & malt Handling system for distillery, brewery projects. System Involved in Grain & Malt Handling System:

1) Grain loading into GI Silo

• Receiving hopper

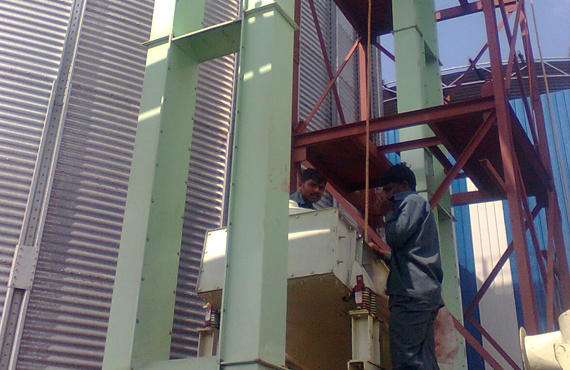

• Bucket elevator
• Grain distributer with EPO KGV

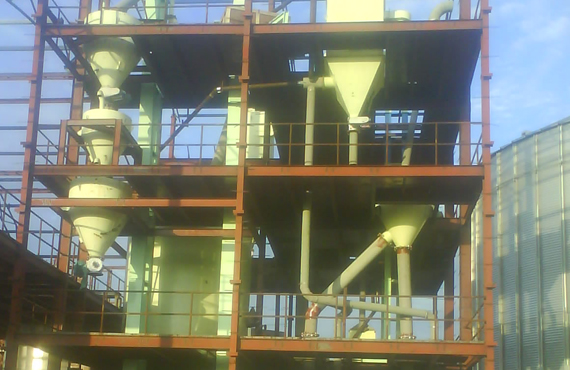

• Aspiration system for receiving section

2) Grain Storage Silo with all its accessories like

• Level measurement system,
• Aeration system with Fan
• Discharge Gate
• Discharge conveyor
• Sweep Auger

3) Grain Cleaning System involves

• Pre-cleaner (vibratory screen) separating oversize and undersize impurities,
• Destoner for removing stones
• Magnetic drum separator for removing iron particles
• Discharge conveyor
• Sweep Auger

4) Grain Milling System Involves

• Rotary feeder for controlled feed

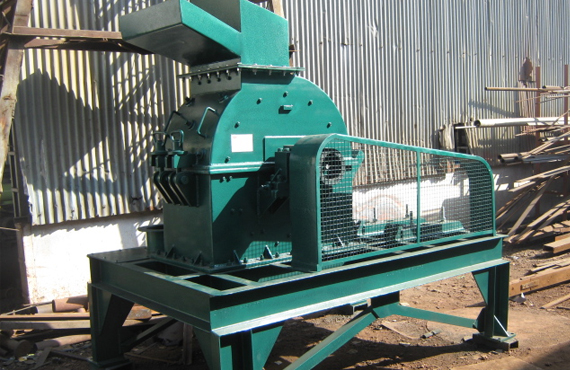

• Hammer mill to achieve desired particle size and capacity. Hammer mill discharge arrangement with screw conveyor, rotary screen for coarse separation.

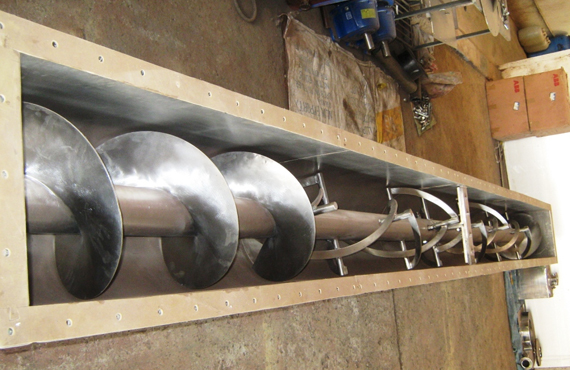

5) Flour Handling System Involves: Mechanical or pneumatic conveying, screw conveyor, bucket elevator, rotary valves with roots blowers
6) Flour Storage: Flour storage silo is provided with bin activator for a smooth discharge. Silo is provided with level switches high and low and load cells for weighing/automation.
7) Flour weighing and batching: Weight controller and tantalizer for automation and to know the flour consumption.
8) Unique equipment called Pre-masher: is used for metered feed of flour and water to get uniform slurry for liquefaction.
