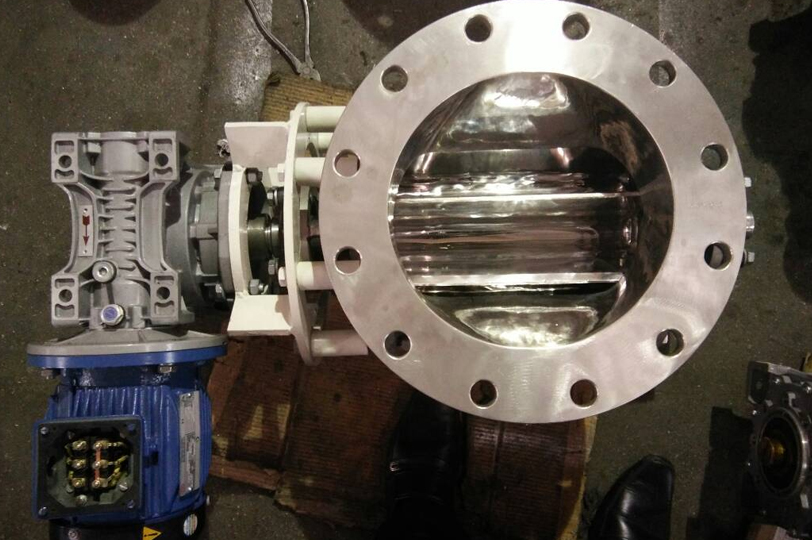

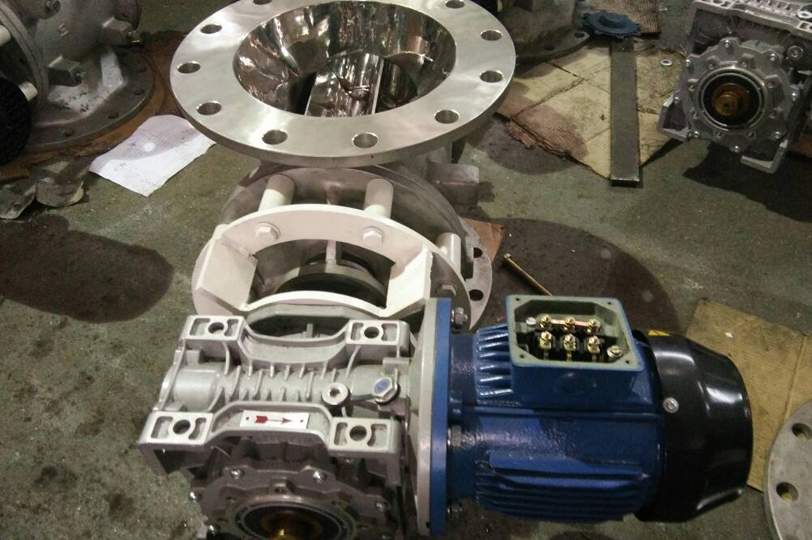

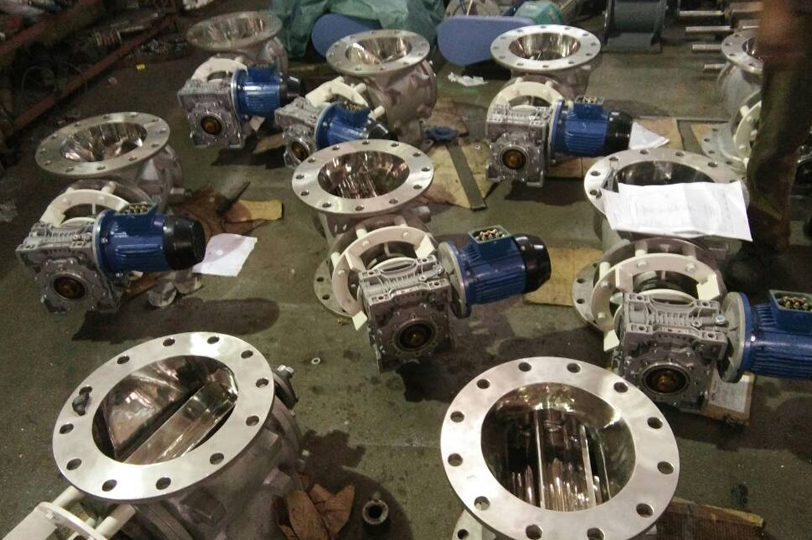

ROTARY AIR LOCK VALVE(RAV)

Precision construction
Casted body
Sealed outboard bearings
Optional body venting & purging packing glands
Self lubricating bearing
Fall through type / Blow through type
Pallet type Rotary Airlock Valve designed for handling granules material to avoid jamming & breakage
Powder design for handling powder
High temperature application
MOC: CI/CS/HRS/SS304/SS316
Provided with line injector & venting box on request

Diameter (MM)	LT / Rev	Motor HP	Empty Weight (kg)	Flange to Flange Height	Width (A*B) Overall	Flange Opening
150	3.4	0.5	100	280	520 * 530	Round
200	5.4	0.5	125	325	575*580	Round
250	10.4	1.0	200	400	650*580	Round
300	18	1.5	250	450	720*760	Round
350	28	2.0	400	520	770*900	Round
400	48	3.0	550	570	880*880	Round
450	62	3.0	650	640	1010*750	Round
