Shell Moulded Castings Manufacturers

Shell Moulded Casting Foundry In India

Our state-of-the-art shell mould cast set up helps us deliver precise, durable castings that require low production time, and are highly cost-effective. Shell mould casting is steadily replacing the traditional investment cast because of its dramatically lesser costs and shorter lead time. Moreover, due to the absence of moisture in the shell, the resin binder on the shell surface burns out, making shaking out castings easy.

Our shell mould unit is capable of manufacturing any component shapes our clients requires, with weight ranging from 1kg to 40kg. We have garnered a vast clientele made up of leaders from several industries including machine parts manufacturing (OEM), automotive, hydraulic and more.

Some of the salient features of our shell mould casting foundry are-

• Modern machinery and skilled personnel that ensure precise measurement, shapes and quality as per requirement.
• Excellent surface finish and machine accuracy which cater to the low tolerance band, further reducing machining and overall production cost.
• Production of even extremely complex shapes with fine detail and accuracy.
• Several material options to best suit the purpose of the component.

With our innovative approach, we stay ahead of the curve, delivering the most efficient solutions to our clients.

• 500 kgs Induction furnace
• Shell Shooter ( Diff. Size )
• Dump Box Type Shell Moulding Machines
• Tumble Type Shot Blasting Machine ( 700 kg Capacity )
• Metal Soft Make Image Analyzer

• Brucker (Q2 ION) Make Spectrometer

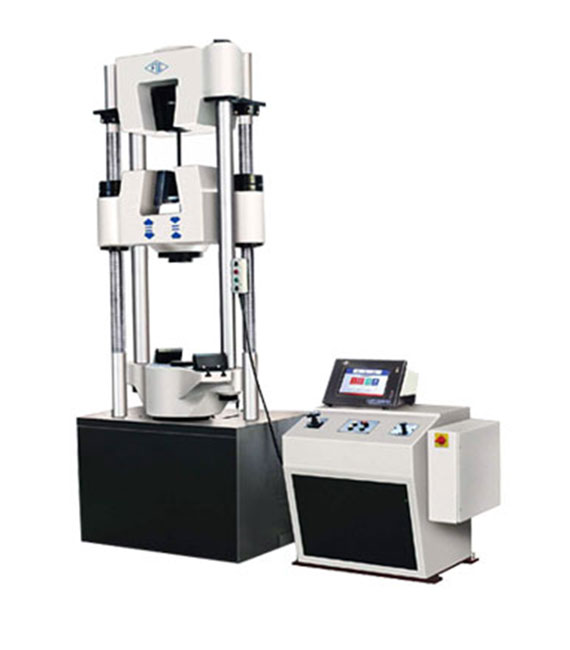

• UTM HGFL Digital

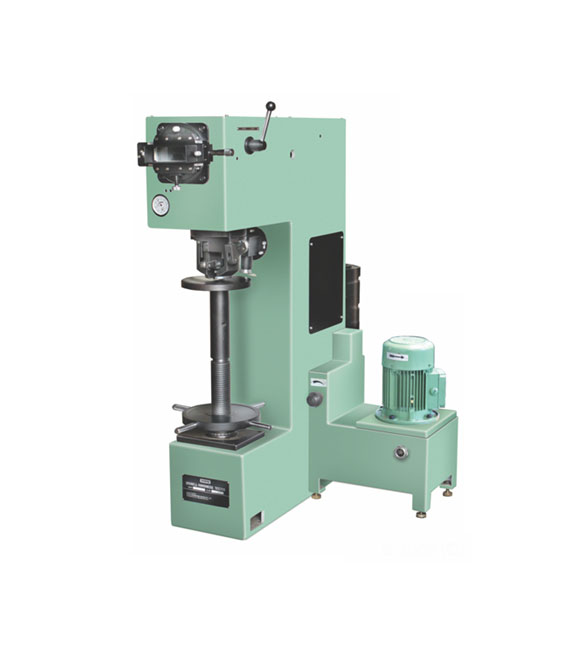

• Hardness Tester(BHN)
• Sand testing equipments
• Material handling cranes - 5 MT Capacity
• Continious sand mixer with reclaimation (Future Expansion)

Manufacturing Facilities

Casting The Future With Quality

The Company continuously undertakes modernization activities to improve on its quality and productivity. With a solid infrastructure in place, and an environment fully embracing new technologies, we are supplying indigenous products to quality-conscious customers.

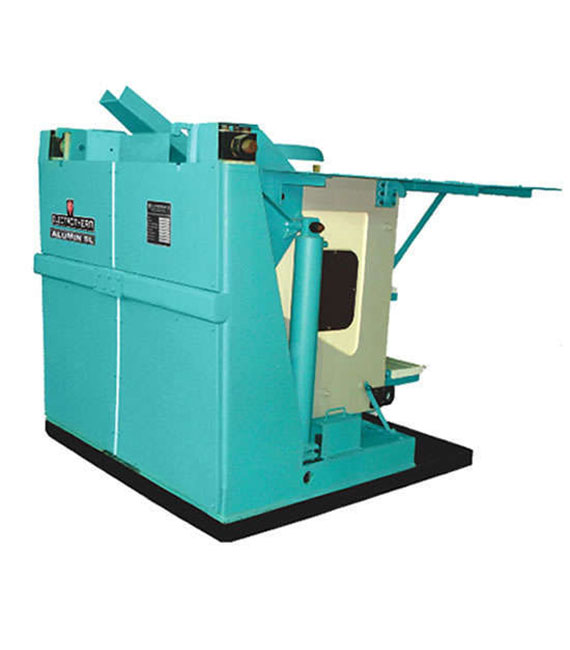

• Electrotherm Make 500 Kgs Induction Furnace ( 550 kW)
• 5 Ton per hour Resin Coated Sand Plant
• Well Equipped Sand testing Laboratory (AFS, HTS, CTS , LOI, Stick Point ,Peel Off etc),
• Fully automated Shell Core Shooters Ranging from Size 400 mm up to 600 mm ( 25 Kgs) ,
• Automated Shell Moulding Machine Size 400mm X 600 MM (40 Kgs )Capacity,
• Material Handling Cranes 5MT , 2MT capacity,
• Fully Automatic Shot blasting machine ( tumble blast) 0.5 MT capacity,
• Inhouse Casting Fettling & Finishing Facility .
• In House Pattern Rectification Facility and Allied Pattern Manufacturing Facility very near to Factory,
• Well Qualified and Experienced ,Quality Focused & System Oriented Team.
• Ready to deliver Quality Castings within Specified Time limits.

TESTINGS

• Spectrometer (Bruker Q2 Ion)
• Image Analyser (Microscope Metalsoft)
• Sand Lab
• Hardness Tester
• CE Meter
• Measuring Instruments
• Crane Scale
• Core Testing
