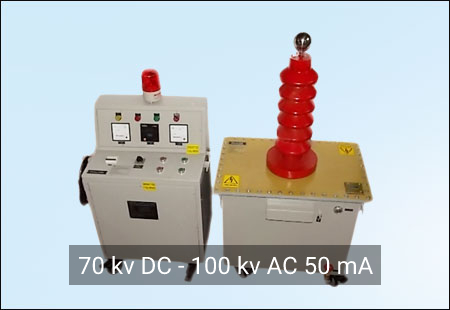

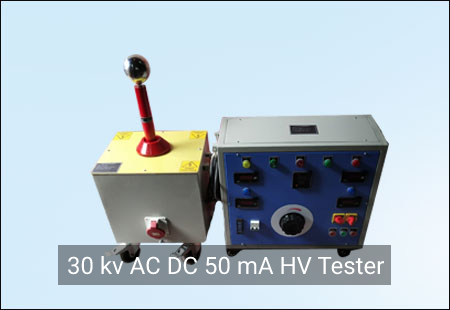

AC DC High Voltage Break Down Tester
RR – AC DC HIPOT TESTERS can perform such precise dielectric test in a cost effective manner without any compromise on safety. Our hipot testers are custom made to suit needs of various industries and product ranges. A Singe tester can be used for conducting both AC and DC Insulation Testing.
Technical Specification :
INPUT : 230 V – Single Phase / 415 V – Two or Three Phase.
OUTPUT RANGE : 1 KV AC to 100 KV AC DC.
CURRENT RANGE : 5 Milli ampere to 1000 milliampere (higher ampere models also available).
COOLING : Air cooled or oil cooled as per requirement.
ACCESSORIES : All units upto 100 KV come with 3 meter non shielded HV cable.
Features :
- Precise and accurate measurement of Insulation levels.
- Available in ranges from 1 KV to 200 KV AC.
- Zero interlock and Breakdown indicating buzzer.
- Seprate Analog / Digital meters for AC and DC.
- Rectifier Bank.
- Resin cast / Oil cooled Transformers designed to ensure maximum safety.
- Air cooled or Oil cooled control panels.
- Manual / Automatic options for control panel.
- Zero Interlock for HV ensuring HV is not activated unless variac is at zero.
- Ground Fault indicator cum Protection.
- Fast Acting Tripping – sensing both Input and Output Current Levels.
- Easy to use interface.
- Ensures a trouble free operation for a lifetime without much maintenance.
- Customized to suit testing needs of customer.
- Use of Standard components all confirming to CE standards.
