ZR - 5 is a unique fine milled zirconium silicate having closely controlled particle size (minus 5 microns)
| Composition; | ZR - 5; | |
| Zirconium Silicate; | &ZrSiO4; | 97.00%; |
| Zirconia + Hafnia; | ZrO2; | 64.20% ; |
| Silica ; | SiO2 ; | 34.10% ; |
| Alumina ; | Al2O3 ; | 0.50% ; |
| Ferric Oxide ; | Fe2O3 ; | 0.09% ; |
| Titania ; | TiO2 ; | 0.15% ; |
| Specific Gravity ; | 4.5 ; | |
| Bulk Density ; | g.cm-3 ; | 0.8 ; |
| Average Particle Diameter; | Malvern d50(μm) ; | 1.50 ; |
» APPLICATONS
ZR - 5 is used in ceramic glazes, optical glass, heat resistance porcelain and zircon refractories. Use of ZR-5 results in high opacity, craze resistance and colour stability for glazes used in tiles, sanitaryware and earthenware.Ruby Ceramics unique manufacturing process ensures constant opacity, due to the delicate balance maintained between the fine particle size and superior chemical purity.
» Hygiene
Material Safety Data Sheet is available on request.
» Packing
The Standard packaging is 50 kg polythene lined multi-wall HPDE woven sacks. Special packing according to customer requirement can be arranged on request.

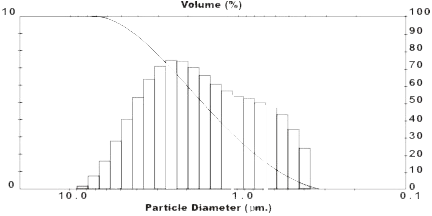

»PARTICLE SIZE DISTRIBUTION
