ZR - 300 is a zircon flour produced by milling zircon sand to a closely controlled particle size; 99% passing 300 mesh, this zircon flour is especially suitable for the manufacture of frits, refractories and foundry coatings. .
| Composition; | ZR - 300 ; | |
| Zirconium Silicate; | &ZrSiO4; | 97.00%; |
| Zirconia + Hafnia; | ZrO2; | 64.50% ; |
| Silica ; | SiO2 ; | 33.10% ; |
| Alumina ; | Al2O3 ; | 0.50% ; |
| Ferric Oxide ; | Fe2O3 ; | 0.09% ; |
| Titania ; | TiO2 ; | 0.15% ; |
| Specific Gravity ; | 4.6 ; | |
| Bulk Density ; | g.cm-3 ; | 1.6 ; |
| Wt.%retained on 200 mesh ; | +75μ ; | 1.0 ; |
| Wt.% retained on 300 mesh ; | +53μ ; | 0.1 ; |
| Average Particle Diameter ; | Malvern d50(μm) ; | 0.15 ; |
» APPLICATONS
ZR - 300 is used in the ceramic glaze, glass, refactory and plastic industry.
ZR - 300 is ideal for use as an opacifier for glaze frits
Small additions of ZR - 300 improve the mechanical strength of glass and impart alkali resistance to the glass fibres used in glass reinforced concrete.
It can be used as a refactory wash for glost klins. It finds use as a fine constituent in pressed zircon refactory shapes and as a filler for epoxy resins.
» Hygiene
Material Safety Data Sheet is available on request.
» Packing
The Standard packaging is 50 kg polythene lined multi-wall HPDE woven sacks. Special packing according to customer requirement can be arranged on request.

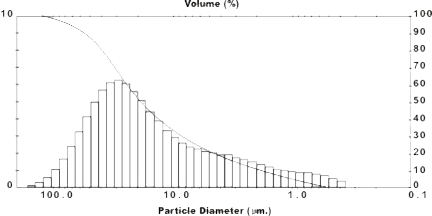

»PARTICLE SIZE DISTRIBUTION
