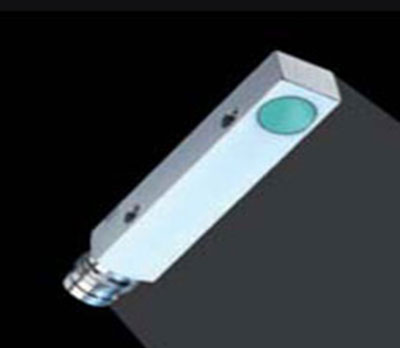

Inductive sensors, rectangular type

Product Family

IFFM 04
Characterstics
  • Robust stainless steel housing
  • Cable connection
Dimension:
  • 4 x 22 x 4 mm
  • nominal
  • sensing
  • Distance
  • Resolution
switching frequency : < 3 kHz Output signal :
IFFM 06
Characterstics
  • Metal housing brass nickel plated
  • With M5 connector
  • IO-Link
Dimension:
  • 6 x L x 6 mm
  • nominal
  • sensing
  • Distance:
  • Resolution:
switching frequency: < 5 kHz Output signal:
Specific Characterstics: response / release time : < 15 ms
IFFM 08
Characterstics
  • Metal housing brass nickel plated
  • Extremely low-profile version in die-cast zinc housing with front-side single-hole installation
  • With M5 connector
Dimension:
  • 8 x L x 8 mm
  • 8 x 16 x 4,7 mm
  • nominal
  • sensing 2mm
  • Distance
  • Resolution
switching frequency:< 5 KHz Output signal:
Specific Characterstics:
  • PBT plastic housing
  • NAMUR/ATEX sensors
IFFM 12
Characterstics
  • Metal housing brass nickel plated
  • With M5 connector
Dimension:
  • 12 x 28 x 8 mm
  • nominal
  • sensing 4mm
  • Distance
  • Resolution
switching frequency:< 5 KHz Output signal:
Specific Characterstics < 2 kHz
  • Inductive code readers
  • versions with 3 or 6 readers
IFFM 20
Characterstics
  • Metal housing brass nickel plated
  • With M8 connector
  • Voltage supply range 10 ... 50 VDC
Dimension:
  • 20 x 41 x 10 mm
  • nominal
  • sensing 5...8 mm
  • Distance
  • Resolution
switching frequency:< 1 kHz Output signal:
Specific Characterstics
