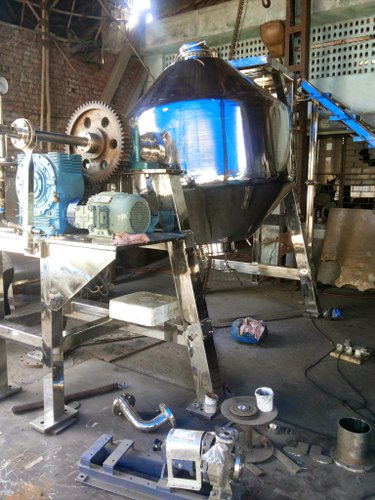

We are one of the leading Manufacturers and Suppliers of superior quality Double Cone Dryer. It is highly demanded double cone dryer for drying & mixing pharmaceutical materials like powder & granule. It can also help to dry and mix material in powdered or granule form of Crystalline, Pesticides, Insecticides as well as Food industry. Get one of the best designed Double Cone Dryer from our company at a very reasonable price range.
| Particulars | Double Cone Dryer |
| Vessel | Vertical central cylindrical, top and bottom cones welded, jacketed rotating |
| Vessel Support | Horizontal shafts on plummer blocks and ‘A’ stands |
| Charging/M.hole | On top cone end |
| Discharge | On bottom cone, by gravity, control through B.fly valve |
| Rotary Part for mixing | Vessel rotating vertically |
| Drive & Position | Motor coupled to worm/heli-worm reduction, then spur girth gear set |
| RPM range | 20-Aug |
| Drive lifting | Not needed |
| Suitable for Drying | for wet content not more than 15-20% |
| Vacuum | Possible by providing pipe inserted through central shaft |
| Filtering dust | Fitting filter inside the vessel at the end of Vac line |
| Chopper / Lump breaker | Optional |
| Jacketing | Possible |
| Vacuum | Possible |
| Vac. Sealing | St.box/M.seal, |
| Air filter | Possible |
| Manhole | Charging hole itself |
| Sampling Valve | Optional |
| Drying time For 20% Vapour content | 15-20hrs depends on process and vacuum rate |
| Baffling | Breaker bar at center |
| Mixing method | Tumbling |
| Precision of Mixing | Two dimensional,reasonable, but discharge unsatisfactory |
| Suitable for product | Dry powder, drying of centrifuged cake |
| HP rating | 60-65 % efficiency |
| Space occupancy | Rotating vessel occupies vertical space and drive horizontal |
| Safety Factor | Rotating Vessel |

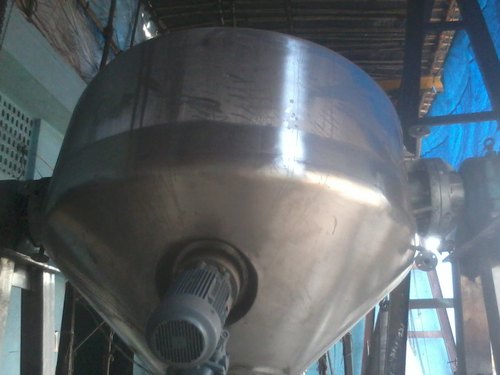

Double Cone Vacuum Dryer suitable for only free flowing materials, which are readily converted from slurry or wet cake to free flowing powder without exhibiting sticking or lump forming properties during the course of drying operations. Rotary Double Cone Vacuum Dryer inside structure is simple, easy clean, dried material can be discharged totally and operation is easy. Further, these can also be customized as per the specifications provided by our clients. We customize our product as per client requirement.
| Capacity | 5-5000 lTR |
| Automatic Grade | Semi-Automatic |
| Design | Customized |

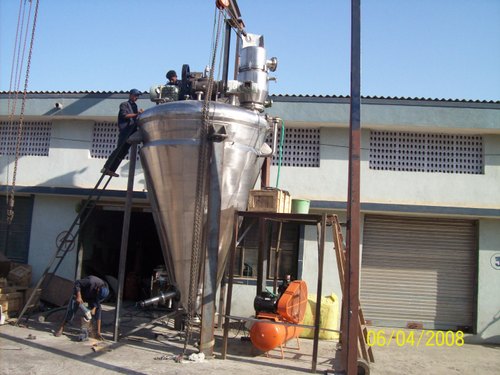

We have marked a distinct and dynamic position in the market by providing a high quality array of Pharmaceutical Dryers that is used for drying granules, crystalline, coarse or similar material in chemicals, food & allied industries. We are the leading manufacturer of Industrial Reactor, Industrial Multi Mill, Industrial Dryer, Industrial Centrifuge, Chilling Plant, Industrial Filter, Heat Exchanger, Industrial Condenser, Laval Separator, Rapid Mixer Granulator, Ribbon Blender, Wiped Film Evaporator and Fabricated Industrial Product.
We are providing a comprehensive assortment of Double Cone Vacuum Dryer, fabricated from high grade of raw materials. Our range of Double Cone Vacuum Dryer is an ideal instrument of mixing and drying of crystalline products, pharmaceutical materials, insecticides, food products, pesticides and many more.
| Capacity | 5-5000 Ltr |
| Automatic Grade | Semi-Automatic |
| Design | Customized |
We are one of the leading Manufacturers and Suppliers of superior quality Double Cone Dryer. It is highly demanded double cone dryer for drying & mixing pharmaceutical materials like powder & granule. It can also help to dry and mix material in powdered or granule form of Crystalline, Pesticides, Insecticides as well as Food industry. Get one of the best designed Double Cone Dryer from our company at a very reasonable price range.
| Capacity | 5-5000 Ltr |
| Automatic Grade | Semi-Automatic |
| Design | Customized |
