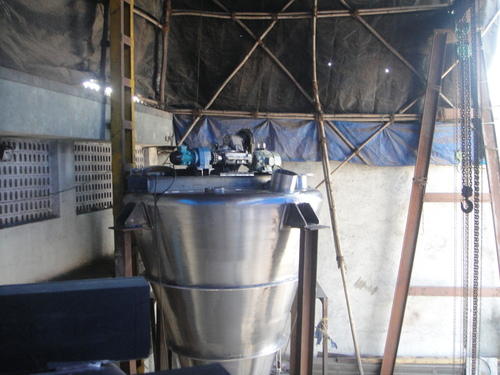

We are engaged in a provision of Manufacturing and Supplying high grade quality Nauta Mixer. Our products are fabricated using superior quality raw material which is procured from trusted vendors in the market.Nauta Mixtures have a specially built spiral agitator to mix well with all free following solids. This precision designed conical mixer is suitable for combining different density products as well.
Particulars | Vacuum conical Mixer |
Vessel | Vertical Conical stationery |
Vessel Support | Lugs |
Charging | On top cover |
Discharge | On bottom of cone or on side of that part, by gravity |
Rotary Part for mixing | Inclined screw conveyor, running all over conical inside surface while rotating |
Drive & Position | Motor v-belted to heli-bevel-worm reduction, then geared to screw conveyor. Another motor for rotating arm on horizontal plane.Drive is placed on top cover |
RPM range | 45-60 |
Drive lifting | Not needed |
Suitable for mixing | Free flowing solid-solid. |
Liquid spraying | Possible by providing spray ll ball manifold to the swing arm |
Homogenizer | Not required |
Chopper/ Lump breaker | Can be provided near the apex of cone |
Jacketing | Possible |
Vacuum | Possible |
Vac. Sealing | Mech seal, proper sealing is possible due to stationery vessel |
Air filter | Air Vent on Top cover |
Manhole | On top cover/Charging hole itself |
Mixing time | 15-20 minutes |
Drying time For 20% Vapour content | 18-230hrs |
Baffling | Flats between flights |
Mixing method | Conveying up, tumbling down in inclined manner |
Precision of Mixing | Three dimensional, Quite precise even for a small sample and addition |
Suitable for product | Dry powder, drying of centrifuged cake |
HP rating | 80-90% efficiency |
Space occupancy | cone occupies vertical space but less horizontal, and can be suspended form above floor into below ground |
Safety Factor | Rotor is totally enclosed, no lifting of drive, hence safe. |

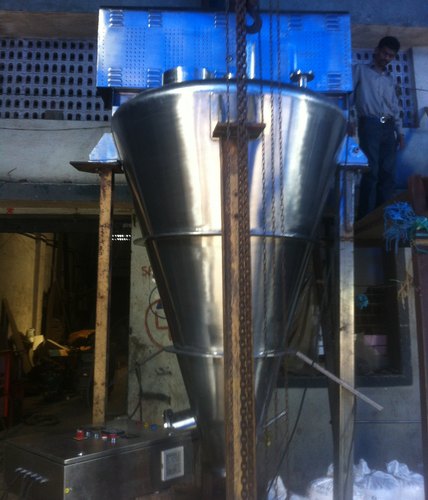

Engaged in manufacture and supply of an excellent range of Nauta Type Conical Mixer including conical screw mixer, industrial planetary mixers, industrial conical mixer, industrial planetary mixers etc. The Mixers offered by us ensure high mixing efficiency in a lesser span of time. These mixers are manufactured with our high-tech machines, which assures for their durability, flexibility and proper functioning. We are also capable to manufacture mixers as per the requirements of the client and cater them in bulk too.
Capacity | 5-5000 lTR |
Automatic Grade | Semi-Automatic |
Design | Customized |

We are a leading manufacturer and trader of this Conical Mixer. We manufacture these products using quality raw materials, giving it a very strong and durable built. These product are basically used For mixing two or more powders which are resistant to mixing, e.g. powders for printing cartridges.
Capacity | 5-5000 lTR |
Automatic Grade | Semi-Automatic |
Design | Customized |

We are a leading Manufacturer, Supplier, Dealer Exporter, offering our clients a assorted gamut of Paste Mixers. These products are fabricated with superior grade raw material that is in sync with the set industry quality norms. Moreover, the offered product is produced under the supervision of dexterous professionals, who have years of experience in this domain. Customs can avail the offered product in competitive rates.
Capacity | 10-4000 ltr |
Brand | Srinidhi |
Design | Customized |
