SVS Windy Ventilators are always spinning... always ventilating. Non-stop ventilation is possible due to the integrated bearing housing, which ensures ventilator rotation at even wind speeds of less than 1 KM per hour.
Stable in 125 KpH wind test
Leak proof in heavy rain test
Extremely low starting speed ensures non-stop rotation and continuous ventilation
Strong construction. Higher vane thickness prevents shearing in high winds
Vertical installation using variable angle elbow
Bearing protected against dust, smoke, fumes
Installation procedure of ventilator ensures that it does not get uprooter in high winds
Special FRP base design and installation procedure prevents accidents of people working on the roof
Leak proof installation
Hulas

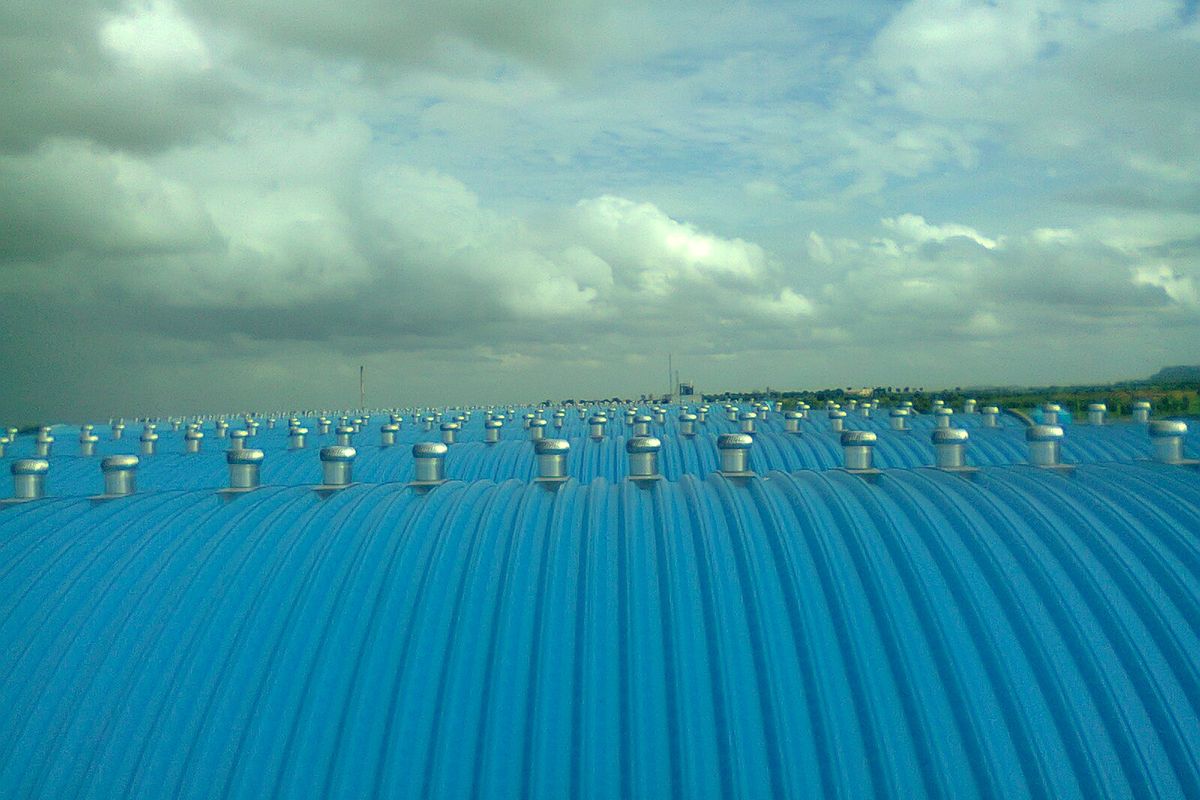

Hetero Labs

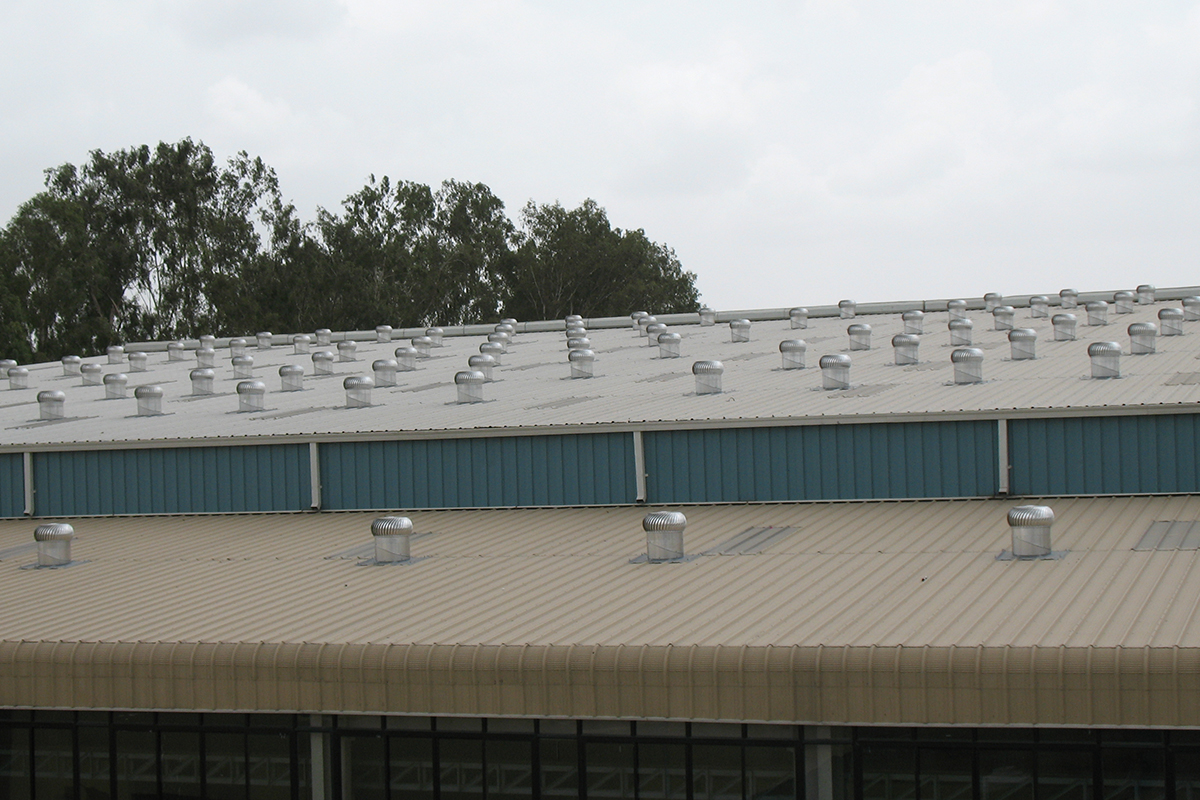

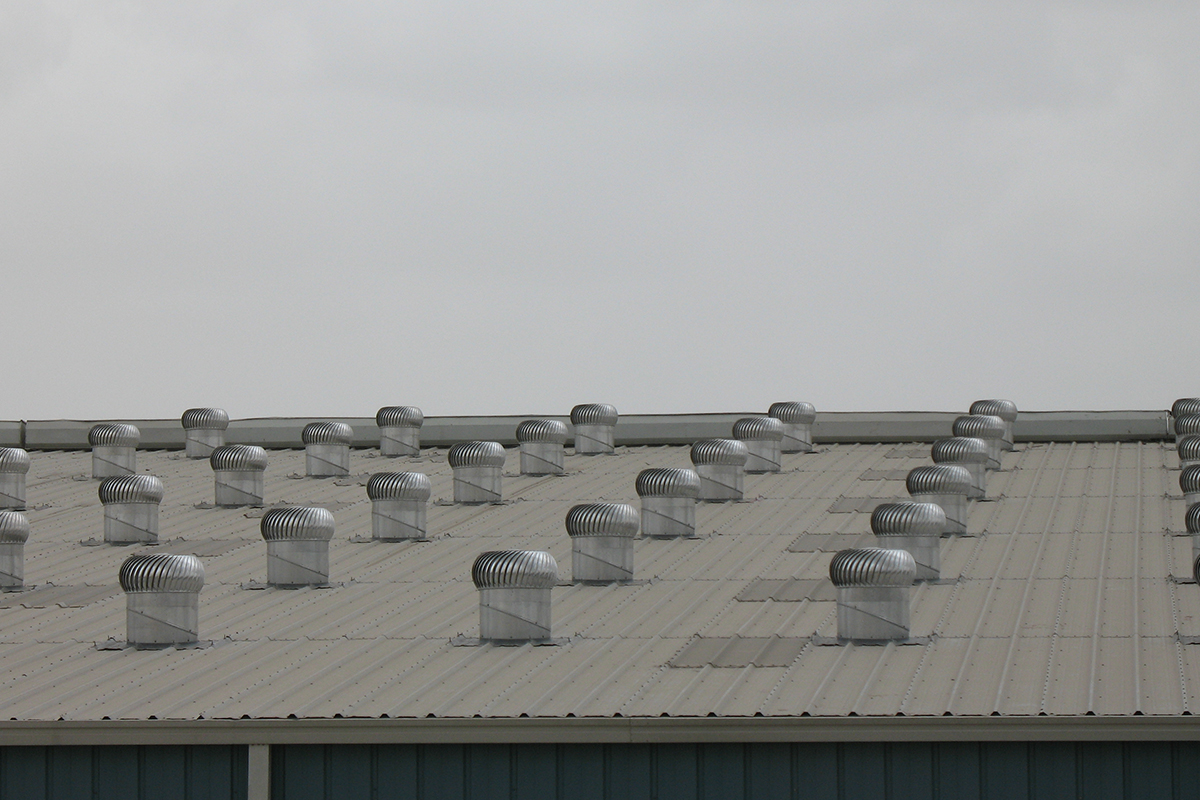

KOEL
KOEL

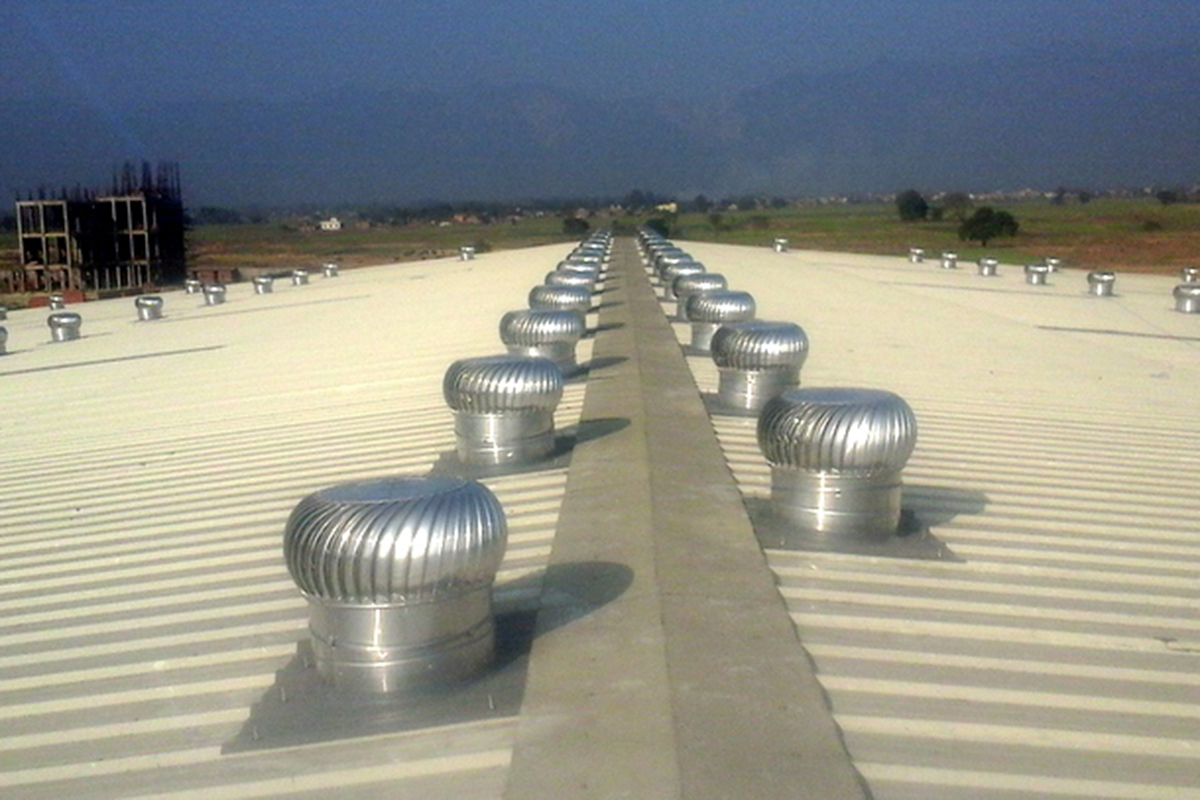

Windy 24 ECO at Hulas

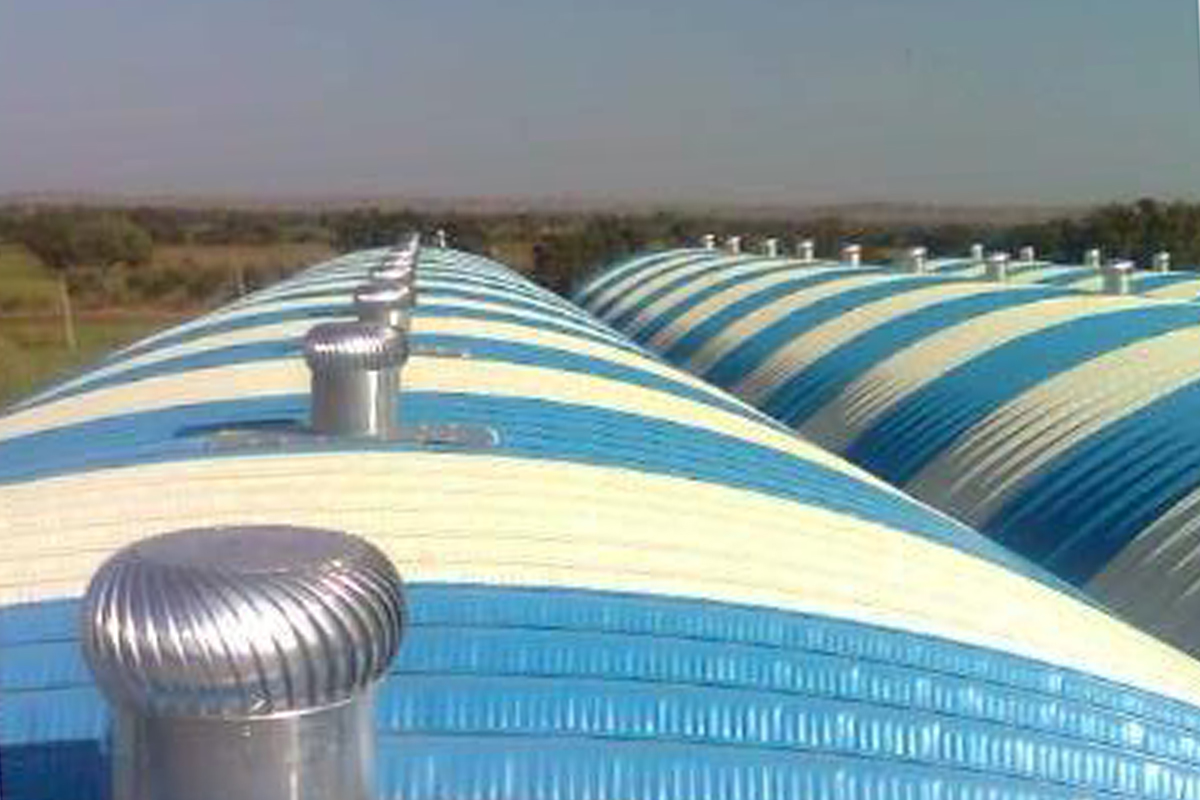

Gujurat tea

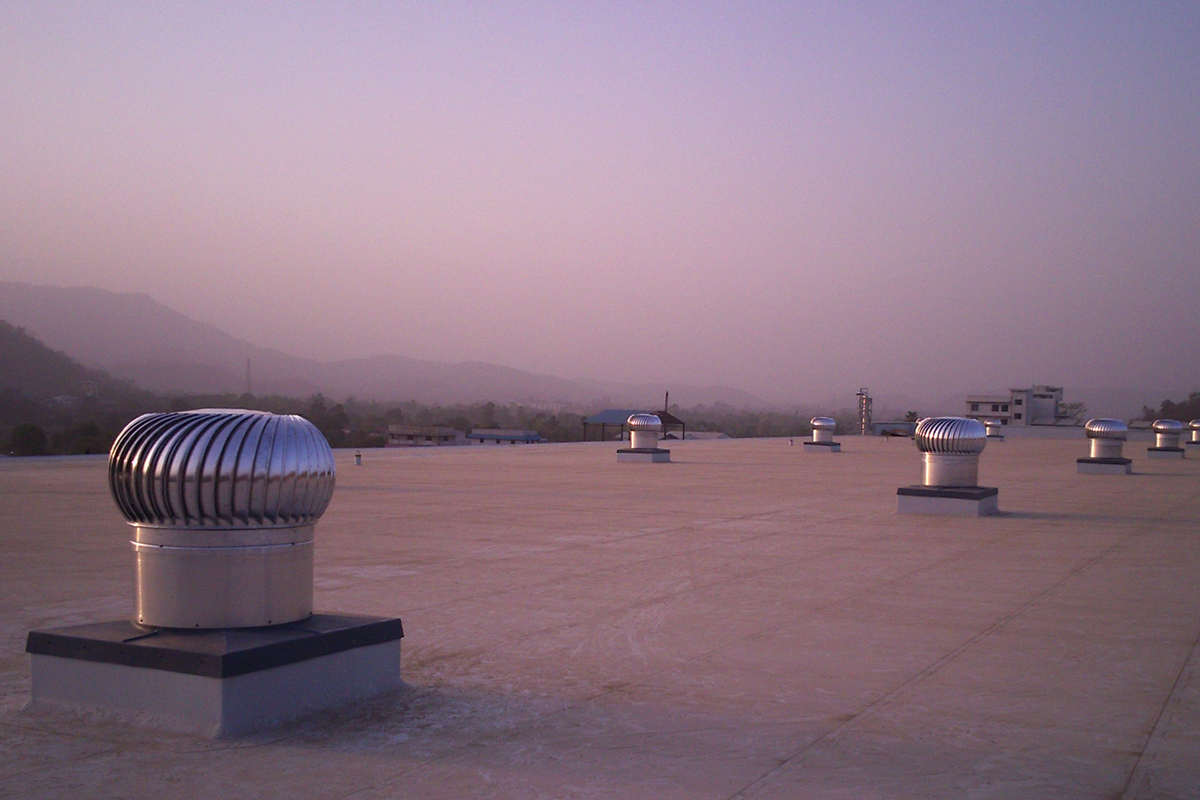

Windy 36 at Mobil

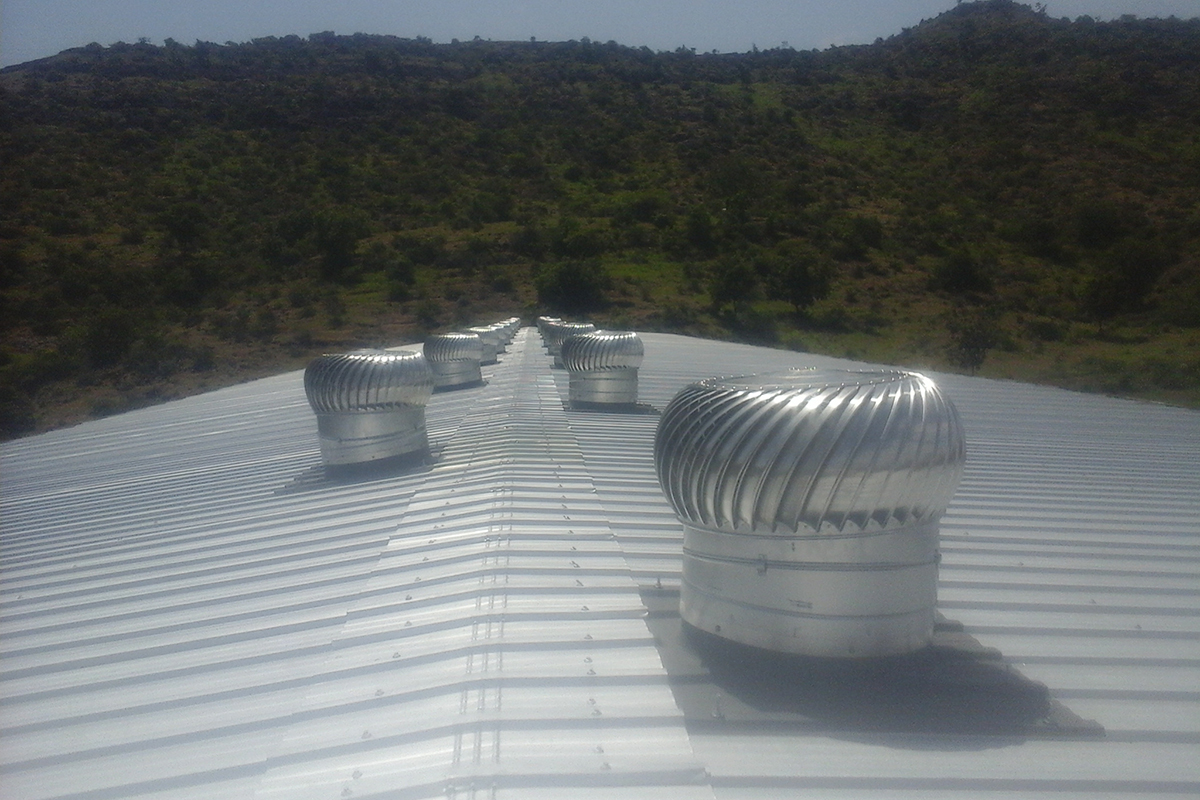

MSC Transformer Jejuri

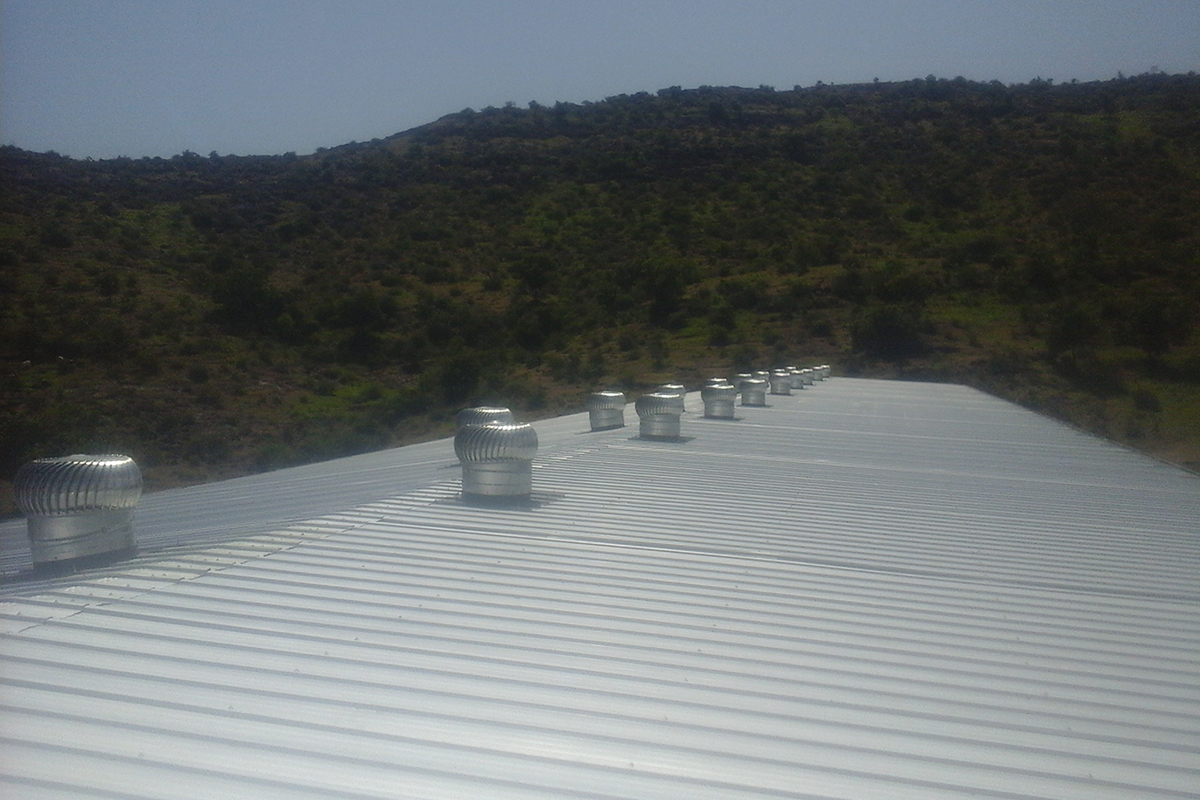

MSC Transformer Jejuri

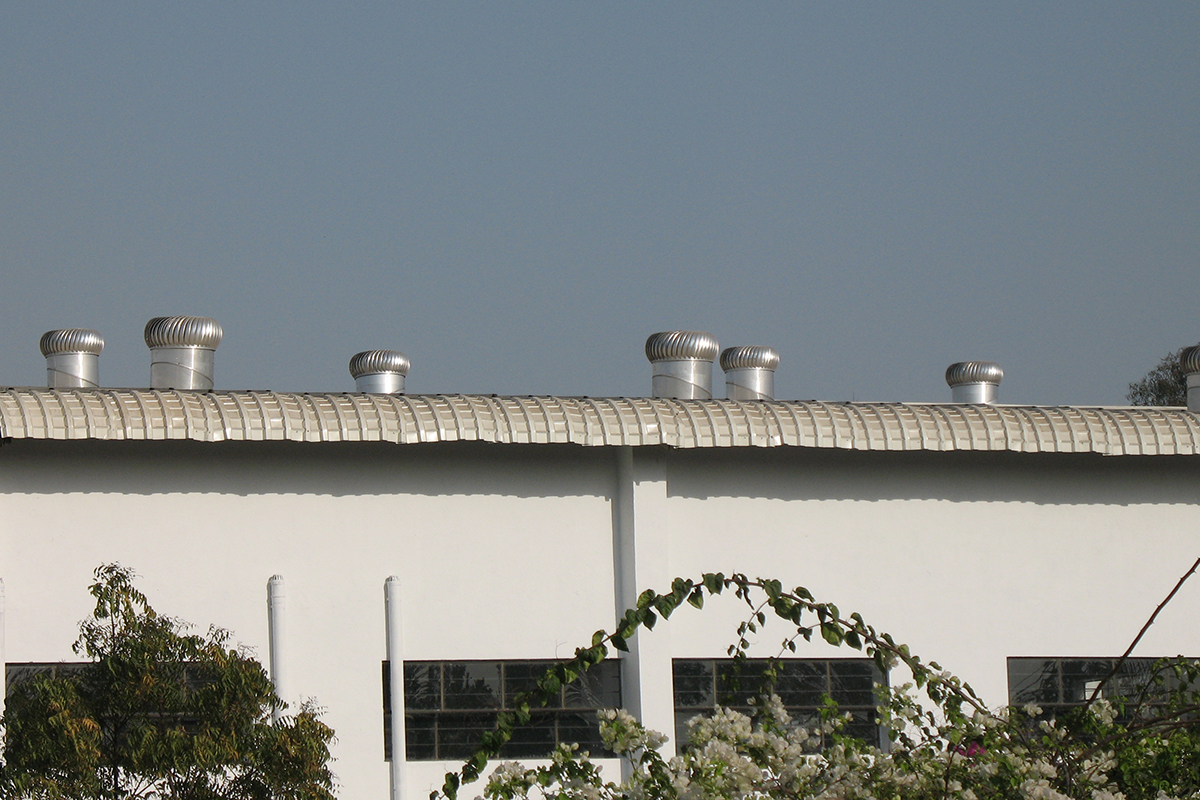

Neatwind

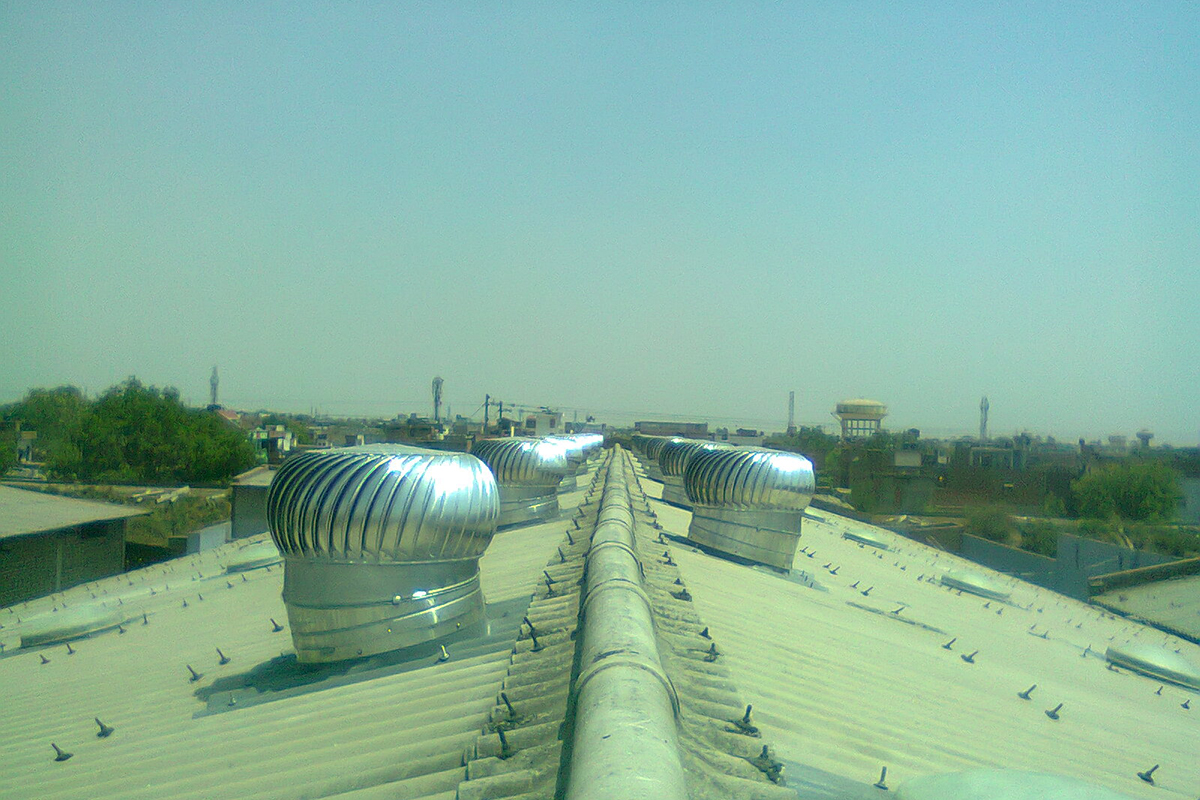

Rimjhim
The mechanics of air movement are very simple. The hot air inside the shed tends to rise up. When the ventilators rotate, they suck the warm air out through the vents, allowing a supply of fresh air at ambient temperature through the doors and windows.

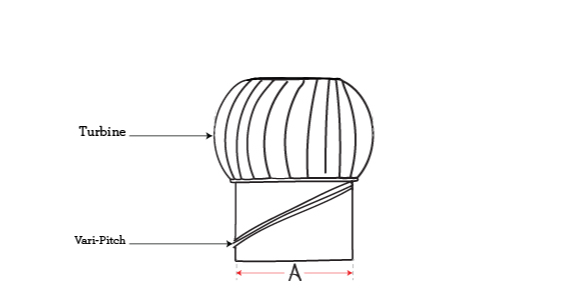

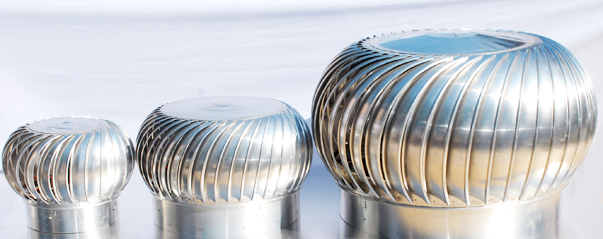

| Model | Dimensions - A (mm) |
| Windy 14 Plus | 360 |
| Windy 24 Plus | 600 |
| Windy 36 Plus | 900 |
| Component | Material |
| Top | All Aluminium with integrated and reinforced main bearing housing |
| Shaft | Stainless Steel |
| Vari Pitch | Aluminium |
| Base Flashing | FRP matching customers roof profile |
| Rotating Bearings | Twin ZZ ball bearings encased in single integrated bearing housing assembly |
Benefits
