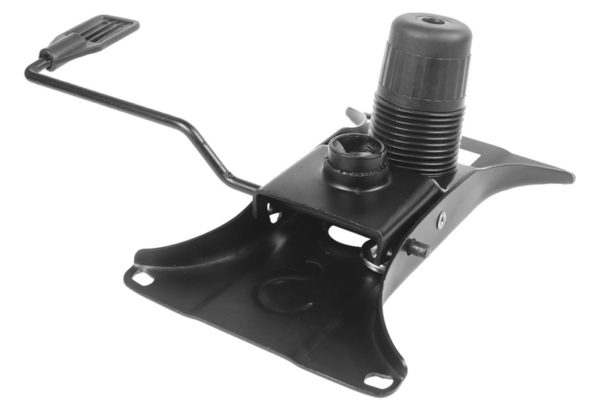

10×6 CT
Part Name : 10×6 Centre Tilt Mechanism
Part No. : 0CT04BPC01
Description : Tilting mechanism with extra length to cover more area of seat ply giving maximum support.
Initial seat angle of 3 degrees and Full recline angle of 20 degrees ensures ergonomical working.
Common lever provided for locking and up/down adjustment. Makes chair usage easy and uncomplicated.
Horizontal movement of the lever to engage and disengage lock at upright position.
Rotational movement of the lever to operate gas spring and adjust chair height to user specification.
Knob provided to adjust spring tention to suit individual user in order to ensure maximum chair comfort.

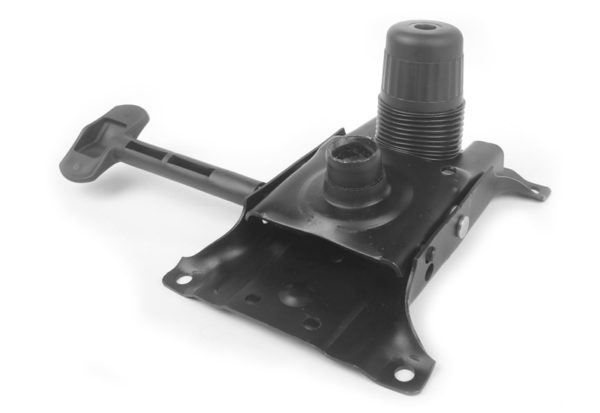

SD Centre Tilt Mechanism
Part Name : SD Centre Tilt Mechanism
Part No. : 0CT01APC01
Description : This was the first mechanism designed and developed completely In-house by Surya's team of dedicated engineers around two decades ago.
Tilting mechanism with very compact but stable 8″ x 6″ mount holes as per European Standard.
Initial seat angle of 3 degrees and Full recline angle of 20 degrees ensures ergonomical working.
Common lever provided for locking and up/down adjustment. Makes chair usage easy and uncomplicated.
Horizontal movement of the lever to engage and disengage lock at upright position.
Rotational movement of the lever to operate gas spring and adjust chair height to user specification.
Full length plastic knob provided to cover lever bar giving better aesthetical appeal to the mechanism.
Knob provided to adjust spring tention to suit individual user in order to ensure maximum chair comfort.

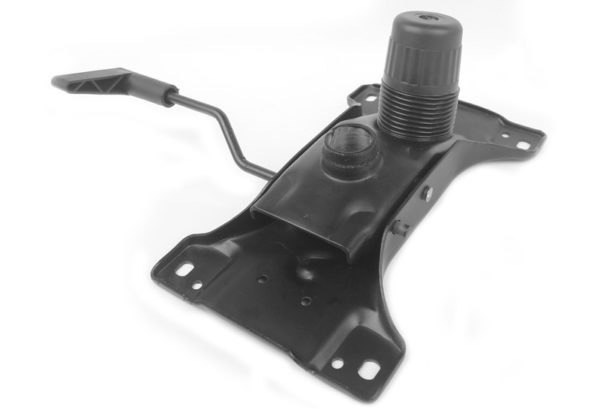

Smart Centre Tilt
Part Name : Smart Centre Tilt Mechanism
Part No. : 0CT05APC01
Description : Tilting mechanism with extra length to cover more area of seat ply giving maximum support.
Initial seat angle of 3 degrees and Full recline angle of 20 degrees ensures ergonomical working.
Common lever provided for locking and up/down adjustment. Makes chair usage easy and uncomplicated.
Horizontal movement of the lever to engage and disengage lock at upright position.
Rotational movement of the lever to operate gas spring and adjust chair height to user specification.
Knob provided to adjust spring tention to suit individual user in order to ensure maximum chair comfort.

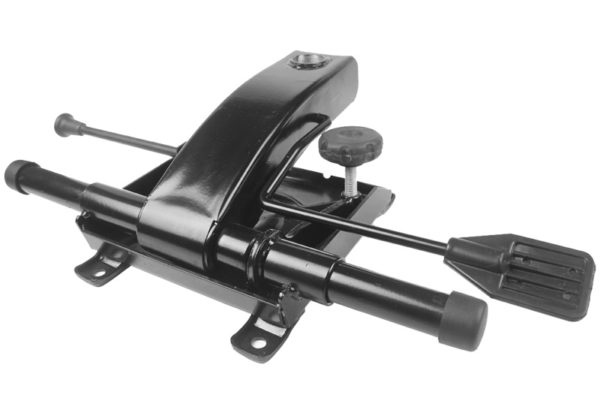

Torsion Bar
Part Name : Torsion Bar Mechanism
Part No. : 0KT01APC01
Description : Mechanism designed and developed completely In-house by Surya's team of dedicated engineers.
Torsion bar used instead of conventional compression spring to provide tention while reclining.
Initial seat angle of 2 degrees. Full recline angle of seat 17 degrees.
Knee Tilt feature helps user keep his/her feet firmly on the ground even in full recline position providing enhanced stability.
Horizontal movement of locking lever to engage and disengage lock at upright position.
Rotational movement of the lever paddle to operate gas spring and adjust chair height to user specification.
Knob provided to adjust tentionof torsion bar to suit individual user in order to ensure maximum chair comfort.
