Light Gauge Framing Systems

Light Gauge Steel Framing System made from High Strength ZINCALUME® steel

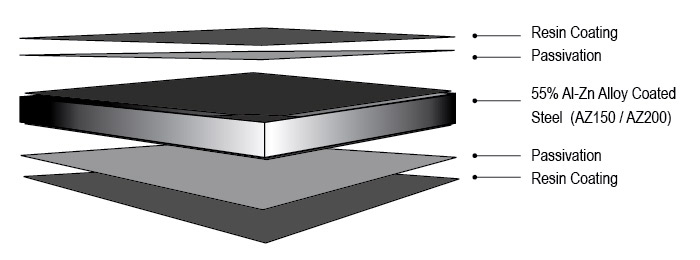

Light Gauge Steel Framing Systems are made from 55% Al-Zn Alloy coated ZINCALUME® steel AZ150 G550 (550 MPa minimum yield strength), complying with AS 1397 and IS 15961. The sections can be made available in 3 m, 4 m, 5 m and 6 m standard lengths. Length of up to 12 m can be made available on request.


Available Sections


Section Dimensions D X W Web Thickness (BMT) Web Thickness (TCT) Full Sectional Area Unit Weight Moment of Inertia Section Modulus Torsion Constant
(mm X mm) (mm) (mm) (mm2) (Kg/m) Ixx(mm4) Iyy(mm4) Zxx(mm3) Zyy(mm3) J(mm4)
SC07515 75 x 40 0.75 0.80 122 0.99 112700 23860 2998 879 23
SC07520 75 x 40 1.00 1.05 159 1.31 143109 26467 3772 1017 53
DC07515 75 x 40 0.75 0.80 262 2.00 329049 65792 7246 3214 49
DC07520 75 x 40 1.00 1.05 345 2.63 424103 85623 9412 4192 115
SC10020 100 x 50 1.00 1.05 216 1.73 362000 71330 7100 2070 72
DC10020 100 x 50 1.00 1.05 459 3.47 970048 193537 16562 7446 153
TS61 – 1.00 1.05 195 1.56 99800 157000 3239 3083 65
TS40 – 1.00 1.05 154 1.20 74820 38360 2043 1811 25
  • Excellent corrosion resistance
  • Light-weight and strong
  • Universal application
  • Easy-to-erect by using connection clips
  • Consistent straightness simplifies alignment
  • Uniform in quality, does not warp or split
  • No need of welding and painting
