Hydraulic and Pneumatic Cylinders
We are a leading Manufacturer & Exporter of Hydraulic and Pneumatic Cylinders such as Hydraulic and Pneumatic Presses and PVC Moulds Hydraulic Cylinder from India.
Hydraulic and Pneumatic Presses
The hydraulic and pneumatic presses offered by us are fabricated using the best grades of raw material and conforms to the international standards. These hydraulic and pneumatic presses are offered in customized form and are extensively used in engineering, automobiles, electrical industries etc.
Specifications:
- Range: 3 tonnes in pneumatic 30 tonnes in Hydro-pneumatic. 100 tonnes in hydraulic.
- Construction: "C" frame, two pillar, four pillar and box type.
Following are some of the highlighting features of our exclusive presses :
- Hi-tonnage Presses with Pneumohydraulic actuation
- Offers speed of pneumatics and the power of hydraulics
- Power packs incorporated into any self-designed system such as Clamping, Bending, Riveting, marking, Drawing, etc.
Hydraulic and Pneumatic Cylinders
We expertise in the effective production of a wide assortment of hydraulic and pneumatic cylinders. These hydraulic and pneumatic cylinders are available in light, medium and heavy duty models and are also single acting, double acting and telescopic. We can also customize our range as per the client’s order.
Specifications are as follows :
- Hydraulic Cylinders
- In tie rod or welded assembly
- 40 mm bore to 300 mm bore
- Stroke up to 2000 mm for pressure up to 210 bars Pneumatic cylinders
- 25 mm bore to 350 mm bore
- Stroke up to 2000 mm for pressure up to 10 bar
- Midget cylinders from 6 mm bore onwards.
Features and Benefits :
- The Piston Rod
- Tough
- Ground
- Hard chrome plated
- Polished to ensure a smooth finish
- Rust resistant surface for best sealing and long life

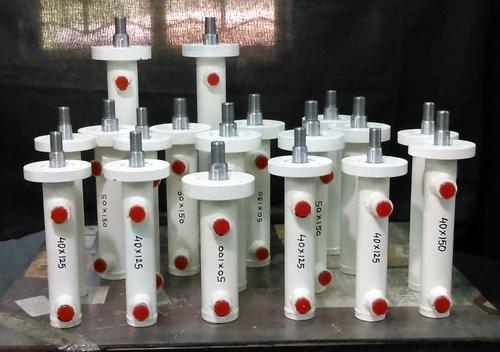

PVC Moulds Hydraulic Cylinder
The Hydraulic Cylinders Are Manufactured By Following The Best Practices To Achieve Excellent Quality. All Internal Parts Are Manufactured On Cnc Machines To Have Uniformity And Concentricity Which In Turn Ensures A Smooth And Long Life. We Can Deliver The Cylinders Within A Short Span Of 4 To 5 Working Days.
