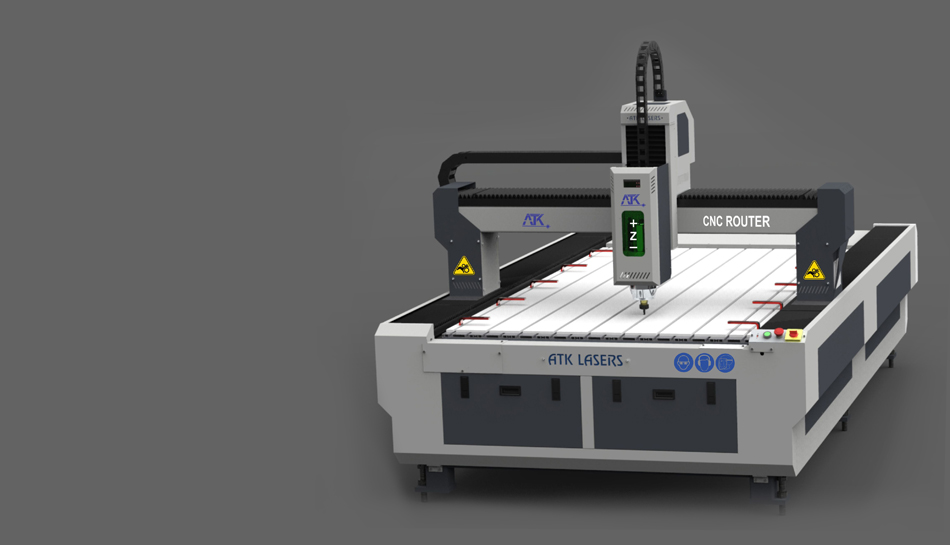

CNC Router Machine With Top Rotary
CNC Router Machine With Top Rotary
Features & Technical Specification
- Excellent speed, efficiency, high precision CNC Router machine built in X, Y Axis drive system rack and pinion with Square linear rails achieving high positioning, motion accuracy & longer life.
- Working Table with aluminium T-slot and PVC sheet for protection of worktable which ensures for longer life.
- Optional spindles of various powers (0.8 KW/1.5 KW/2.2 KW/3 KW/4.5 KW/5.5 KW/6 KW) (Water / Air cooled) are also available.
- Handheld DSP controller to set job parameter and download from computer via USB cable and USB key also.
- Original Indian spindle longer life and guaranteed performance.
- High precision planetary servo gearbox.
- High torque easy servo motors and drives system technology.
- The ATK Lasers make router ATK-RU-1325 is having the longer durability due to strongly welded steel structure and the rapid and high quality working capability that causes improvement in the productivity.
- Industrial chillers with easy maintenance.
- Offers customized service & economical cutting.
Technical Specification
| X, Y, Z Working Area in mm | 600 x 900 x 120 / 1300 x 2500 x 200 / 1500 x 3000 x 200 / 2000 x 2500 x 200 |
| Table Structure | T-Slot Table / Water Bed / Vacuum Bed |
| Transmission System | X & Y Gear Rack , Z Ball Screw |
| Lead Linear System | X,Y,Z : Linear Square Guide Rails |
| Spindle Power | 1.5 KW / 2.2 KW / 3.5 KW / 4.5 KW / 5.5 KW / 6 KW / 7 KW / 9 KW / 12 KW |
| Spindle Speed | 0-18000 rpm / 0-24000 rpm |
| Cooling Type | Water Cooled / Air Cooled |
| Max. Consume Power | 3.2 KW / 4.5 KW / 6.0 KW |
| Drive System | Servo / Stepper |
| Gear Box | Planetary Servo Gear Box / Stepper Pulley Belt Gear Box |
| Control System | DSP (USB), Close loop CNC |
| Max. Rapid | Up to 25 m/min/ Up to 35 m/ min |
| Compatibility file Format | G code, .u00*, .mmg*, .plt*. |
| Working Voltage | AC 230V , 50 Hz 1 PH / AC 415V 50 Hz 3 HP |
| Optional | Rotary Attachment / Automatic Tool Charger / Dust Collector / Water Bed / Vacuum Bed / Double Head / 5 Asis |
| X, Y Working Accuracy | 0.05 mm. |
| Invertor | Delta / Dorna / Best / Yasakawa / Frecon |
| Gross Weight | 250 KG / 800 KG/ 1000 KG / 1500 KG |
