Fiber Laser Metal Cutting Machine

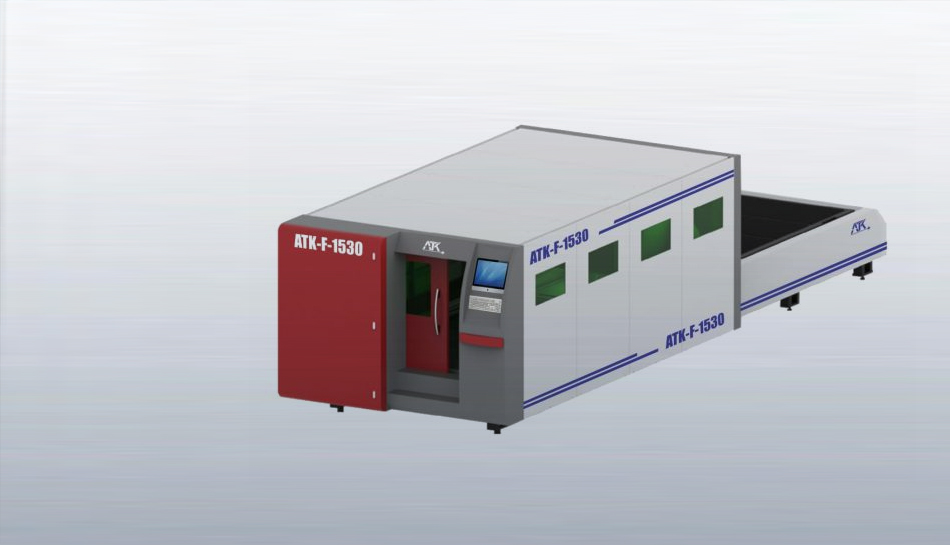

Fiber Laser Cutting Machine (Close Body)

Features & Technical Specification

• Type : Fiber Laser Metal Cutting Sytem.
• Structure : Gantry, Double drive.
• CNC bed is designed with special steel grade to enable highest accuracy machining.
• Light alloy beam (X Axis) to provide High dynamic performance. The optical path Changes while the sheet remains still, thus the processing efficiency is high.
• X, Y axis adopts high quality gear and rack, reduction gear,ensuring life and precision for a long time.
• The system is equipped with section dust collector to improve the working environment. The area beneath the cutting table is divided into several sections. During the cutting process, only the ducts directly beneath the cutting head are open for fume extraction. The ducts in the other sections remain closed to improve dust collection.
• All servo motors are with incremental Encoder.
• High torque planetary servo gearbox used.
• CNC Controller with Fly cutting and piercing option, In- process key parameters change option, In-process key parameters change option.
• Auto-nesting software with free from nesting function.
• High quality precision auto focus cutting head.
• Advanced pneumatic systems are used.
• Lubrication for all guides and rails are protected by bellows.
• High quality special fiber laser chillier unit.
