Classic Die Tools

Design and Develop Die Casing Dies, Die Tools, Moulds, Jig, Fixtures

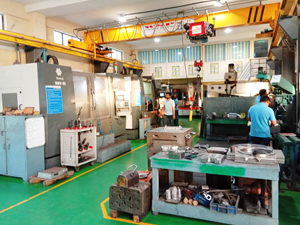

Our Shop Floor

Shop Floor & Facility

  • 6000 Sq. Ft. Slab Constructed Shop Floor
  • 800 Sq. Ft. Office Area

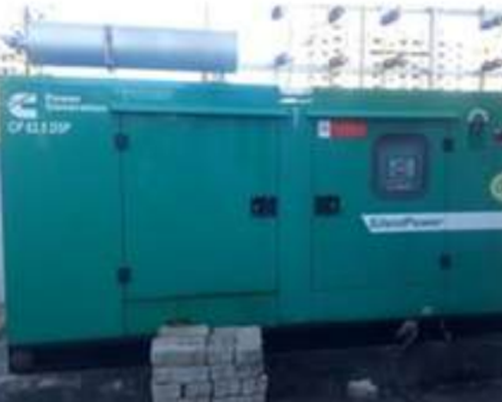

  • 67 HP Power Supply
  • 5 Ton Capacity Fully Automatic Overhead Crane
  • 2 Ton Capacity Gantry Crane & Stacker
Our Design Department

Design Department

  • 200 Sq. Ft. Dedicated Design Office
  • Qualified & Experienced Design Engineers
  • Simulation Software Facility available
Unigraphics NX9/12 Work NC CAM ZW2D

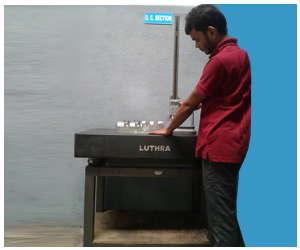

Our Quality Control Department

Quality Control

  • 1000x650x150 LUTHRA Granite Surface Plate
  • Digital Height Gauge (Baker Make)
  • Vernier Calipers & Micrometers
  • Dial Bore Gauge (Baker Make)
  • Optical Edge Finder

Our Machinery

High-precision equipment for superior manufacturing output

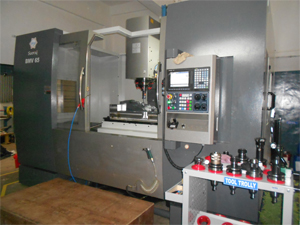

VMC Machine 1

VMC Machine 1

  • Make: Bharat Fritz Werner Ltd.
  • Model: BMV 65 SOORAJ
  • Table Size: 1500 x 650 x 700 mm
  • Travels: 1280 x 710 x 650 mm
  • Controller: Mitsubishi M70 A
  • Spindle Taper: BT 50

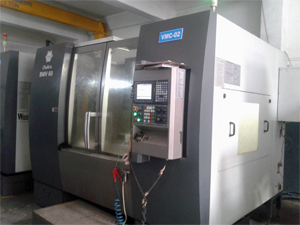

VMC Machine 2

VMC Machine 2

  • Make: Bharat Fritz Werner Ltd.
  • Model: BMV 60 CHAKRA
  • Table Size: 1250 x 600 x 600 mm
  • Travels: 1250 x 610 x 600 mm
  • Controller: Mitsubishi M70 A
  • Spindle Taper: BT 50
VMC Machine 3

VMC Machine 3

  • Make: Bharat Fritz Werner Ltd.
  • Model: BMV 45 Agani
  • Table Size: 850 x 450 mm
  • Travels: 650 x 450 x 450 mm
  • Controller: Mitsubishi M70 A
  • Spindle Taper: BT 40
CNC EDM Machine

CNC EDM Machine

  • Make: Agie Charmilles
  • Model: SP3U
  • Tank Size: 1250 x 700 x 420 mm
  • Travels: 500 x 400 x 400 mm
  • Max Amps: 100 Amps
  • Features: 17" Touch Screen, Orbital Sparking

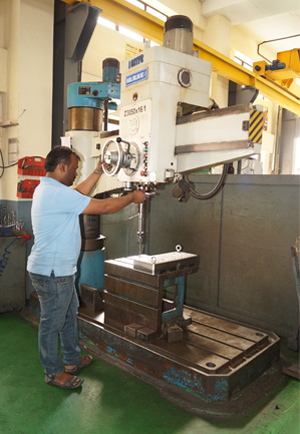

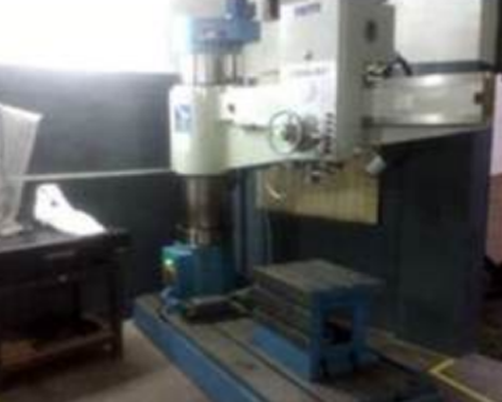

Radial Drilling Machine

Radial Drilling Machine

  • Make: FOSTER (Taiwan)
  • Model: Z6030
  • Arm Length: 1500 mm
  • Max Drill Dia: 50 mm
  • Features: Auto Feed, Hydraulic clamp

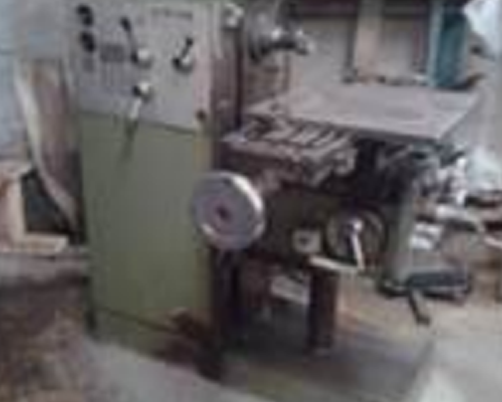

Surface Grinding Machine

Surface Grinding Machine

  • Make: ALPA (Italy)
  • Model: RT 550
  • Table Size: 600 x 300 mm
  • Travels: 600 x 300 x 400
  • Features: Auto feed for all axis

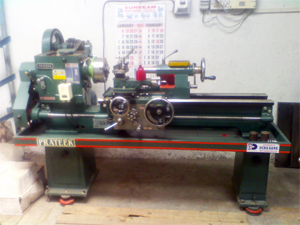

Precision Lathe Machine

Precision Lathe Machine

  • Make: Prateek (India)
  • Table Size: 6 feet
  • Swing Over Bed: 225 mm
  • Type: Medium Duty Toolroom Precision Lathe

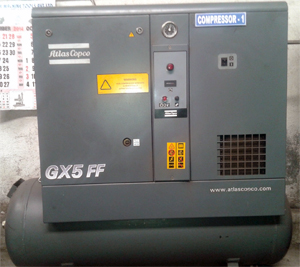

Air Compressor

Air Compressor

  • Make: Atlas Copco
  • Model: GX 5P FF
  • Tank Capacity: 21 CFM
  • Pressure: 10 BAR
  • Power: 7.5 hp
  • Type: Silent Noise SCREW Compressor
