Standard Heatsinks
We are Manufacturer, Supplier, Exporter of Standard Heatsinks, Heatsinks, Aluminum Heatsinks, Heat Sinks Extrusion Profiles, Standard Heat Sinks. Our setup is situated in Pune, Maharashtra, India.

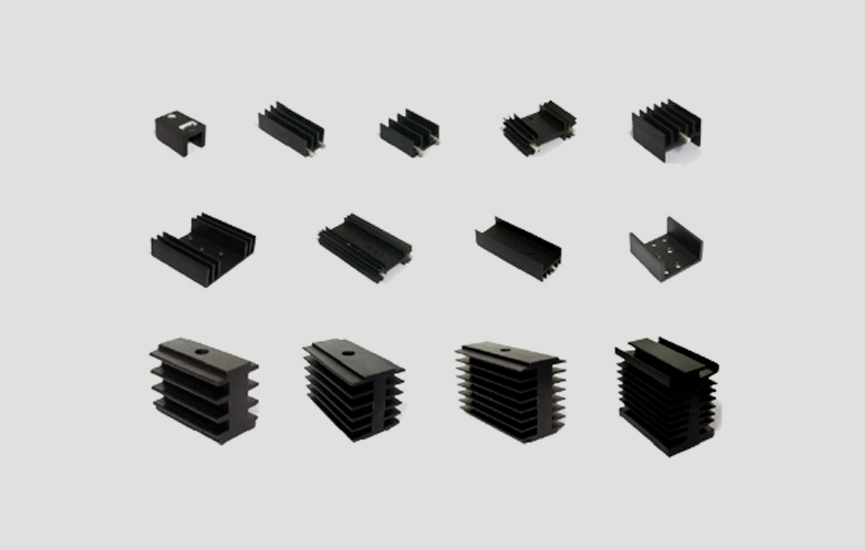

Standard Heatsinks
| Part no. | Pakage | Length | Mounting |
|---|---|---|---|

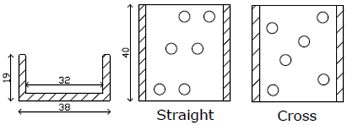

| 1D01 | TO-03 | 40 | Straight |
| 1D02 | TO-03 | 40 | Cross |
| Part no. | Pakage | Length | Type |
|---|---|---|---|
| 3D01 | TO-03 | 62 | 1 TR |
| 3D02 | TO-03 | 62 | 2 TR |
| 3D03 | TO-03 | 125 | 4 TR |
| 3D04 | TO-03 | 190 | 6 TR |
| 3D05 | TO-03 | 250 | 8 TR |
| 3D06 | TO-03 | 305 | 10 TR |
| Part no. | Pakage | Length | Hole |
|---|---|---|---|

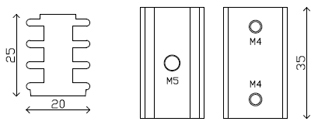

| 15K1 | SCR & Diode 6 AMPS |
35 | M4- 2 nos at Bottom M5- 1 nos at Top |
| Part no. | Pakage | Length | Hole |
|---|---|---|---|

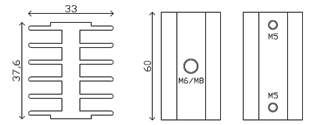

| 16K2 | SCR & Diode 12 AMPS |
60 | M5- 2 nos at Bottom M6/M8- 1 nos at Top |

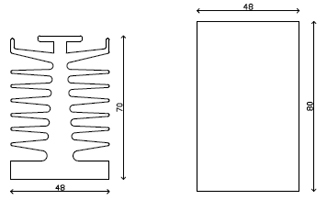

| Part no. | Pakage | Length | Hole |
|---|---|---|---|
| 17K3 | SCR & Diode 25 AMPS |
80 | M5- 2 nos at Bottom M6/M8- 1 nos at Top |
| Part no. | Pakage | Length | Hole |
|---|---|---|---|
| 18K4 | 70 Amp Diode SCR,SSR. |
80 | As Required |

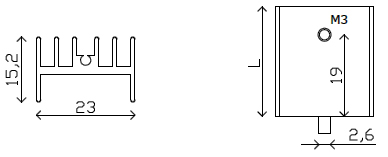

| Part no. | Pakage | Length | Pin Dia |
|---|---|---|---|

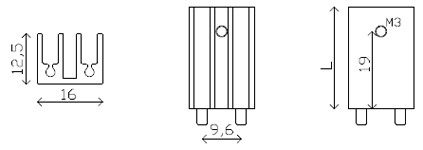

| 22D01 | TO-202 / TO-220 | 25.5 | 2.6 |
| 22D02 | TO-202 / TO-220 | 38 | 2.6 |
| 22D03 | TO-202 / TO-220 | 51 | 2.6 |
| 22D04 | TO-202 / TO-220 | 64 | 2.6 |
| Part no. | Pakage | Length | Pin Dia |
|---|---|---|---|
| 23D01 | TO-202 / TO-220 | 25.5 | 2.6 |
| 23D02 | TO-202 / TO-220 | 38 | 2.6 |
| Part no. | Pakage | Length | Pin Dia |
|---|---|---|---|
| 24D01 | TO-202 | 25.5 | 2.6 |
| 24D02 | TO-202 | 38 | 2.6 |
| 24D03 | TO-202 | 51 | 2.6 |
| Part no. | Pakage | Length | Pin Dia |
|---|---|---|---|
| 24D04 | TO-218/ TO-247 | 25.5 | 2.6 |
| 24D05 | TO-218/ TO-247 | 38 | 2.6 |
| 24D06 | TO-218/ TO-247 | 51 | 2.6 |
| 24D07 | TO-218/ TO-247 | 64 | 2.6 |
| Part no. | Pakage | Length | Pin Dia |
|---|---|---|---|
| 24D08 | TO-220/ TO-202 | 25.5 | 2.6 |
| 24D09 | TO-220/ TO-202 | 38 | 2.6 |
| 24D10 | TO-220/ TO-202 | 51 | 2.6 |
| 24D11 | TO-220/ TO-202 | 64 | 2.6 |
| Part no. | Pakage | Length | Pin Dia |
|---|---|---|---|

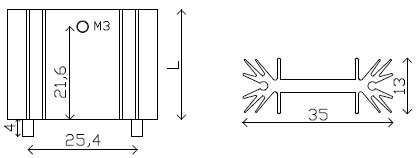

| 110D01 | TO-220 | 25.5 | 2.6 |
| 110D02 | TO-220 | 38 | 2.6 |
| Part no. | Pakage | Length | Pin Dia |
|---|---|---|---|

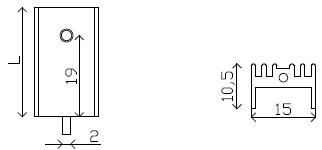

| 111D01 | TO-220 | 25.5 | 2 |
| 111D02 | TO-220 | 38 | 2 |
| Part no. | Pakage | Length | Pin Dia |
|---|---|---|---|
| 130D01 | TO-220 | 25.5 | 2.6 |
| 130D02 | TO-220 | 38 | 2.6 |
| Part no. | Pakage | Length | Pin Dia |
|---|---|---|---|

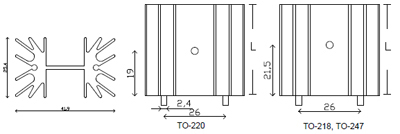

| 152D01 | TO-218 ,TO-220, TO-247 | 25.5 | 2.6 |
| 152D02 | TO-218 ,TO-220, TO-247 | 38 | 2.6 |
| 152D03 | TO-218 ,TO-220, TO-247 | 50 | 2.6 |
| 152D04 | TO-218 ,TO-220, TO-247 | 63 | 2.6 |
| Part no. | Pakage | Length | Pin Dia |
|---|---|---|---|
| 152D01 | TO-218 ,TO-220, TO-247 | 25.5 | 2.6 |
| 152D02 | TO-218 ,TO-220, TO-247 | 38 | 2.6 |
| 152D03 | TO-218 ,TO-220, TO-247 | 51 | 2.6 |
| 152D04 | TO-218 ,TO-220, TO-247 | 64 | 2.6 |
| Part no. | Pakage | Length |
|---|---|---|
| 154D01 | TO-220 | 20 |
| 152D02 | TO-220 | 25 |
| Part no. | Pakage | Length | Type |
|---|---|---|---|

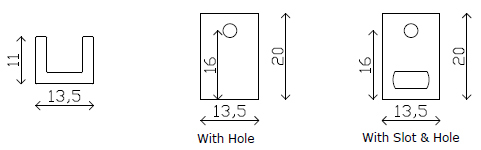

| 154D01 | SOT-32 | 20 | With Hole |
| 152D02 | SOT-32 | 20 | With Slot & Hole |
