19 inch Cabinets
We are Manufacturer, Supplier, Exporter of Standard Heatsinks, Heatsinks, Aluminum Heatsinks, Heat Sinks Extrusion Profiles, Standard Heat Sinks. Our setup is situated in Pune, Maharashtra, India.

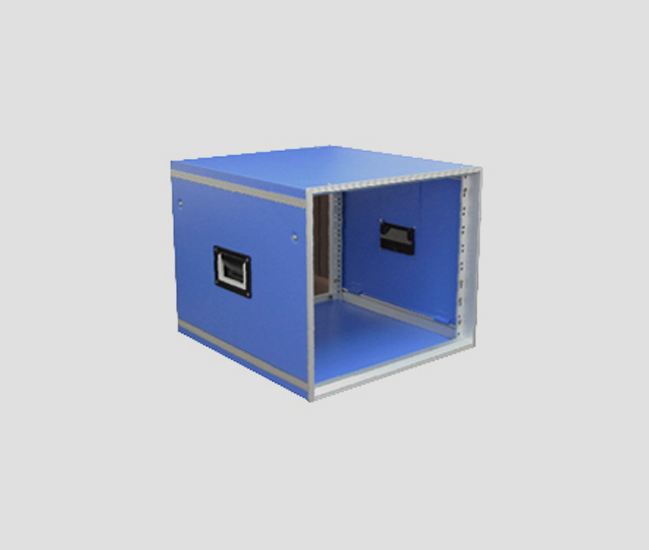

These Cabinets are designed for table top use. It accepts Standard 19" equipments.
Standard Package:
- Side Panels 2
- Top Cover (plain) 1
- Bottom Cover (Plain) 1
- Width Profile 4
- Height Profile 4
- Depth Profile 4
- Hardware set 1
- Feet set 1
Accessories(optional):
- Carrying Handles
- Castors
- Front, Rear Panels
- Panel Mounting Hardware
- Chassis plate
- Support Angle
- Top/Bottom Cover Ventilation

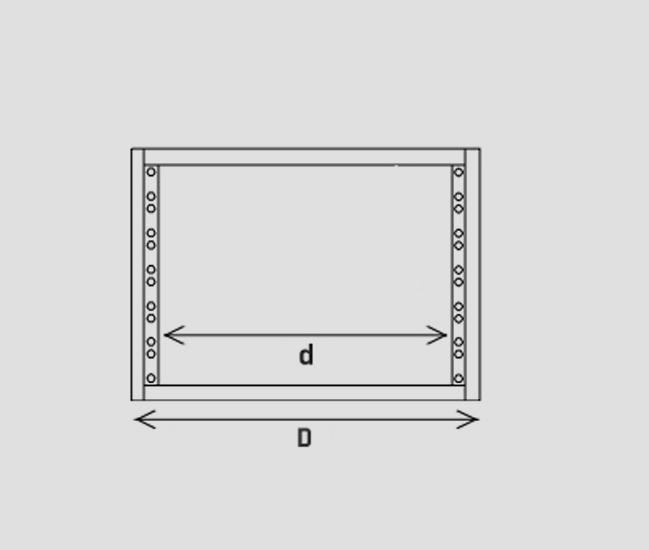

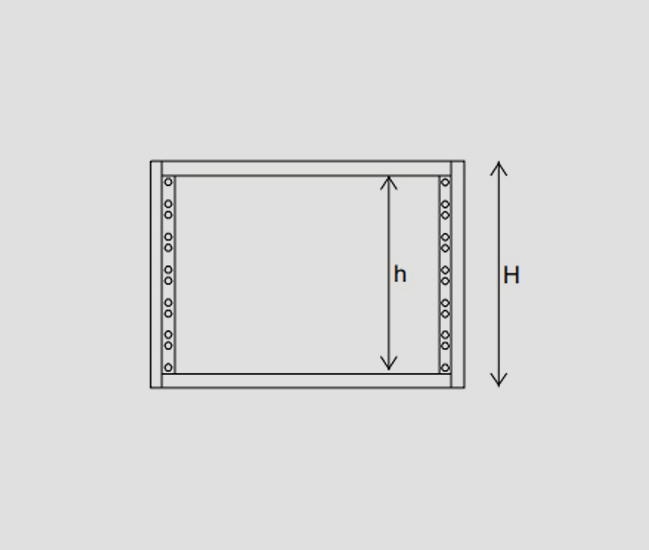

| Entry Dimensions (mm) | Entry Dimensions (mm) | |||
|---|---|---|---|---|
| - | Height-h | Depth-d | Height-h | Depth-d |
| 3U | 133 | 372.5 472.5 |
176 | 450 550 |
| 6U | 267 | 372.5 472.5 |
310 | 450 550 |
| 9U | 400.5 | 372.5 472.5 |
443.5 | 450 550 |
| 12U | 533.5 | 372.5 472.5 |
576.5 | 450 550 |
Finish :
- Aluminum Profiles-Natural Anodised / PC
- Top, Bottom, Side Cover-Powder Coated

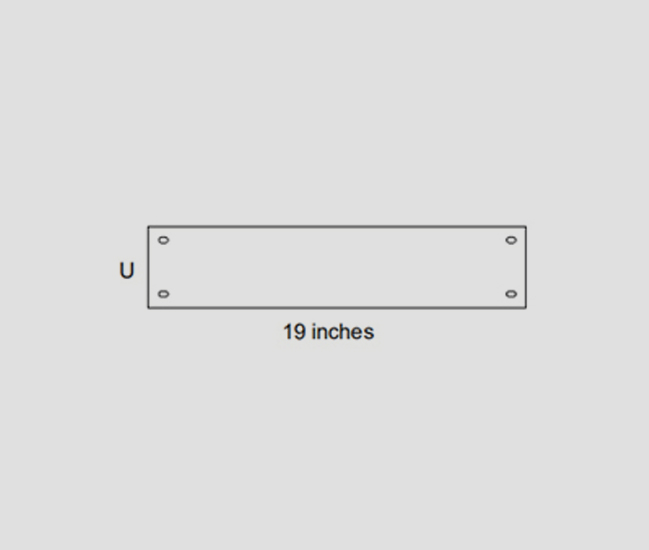

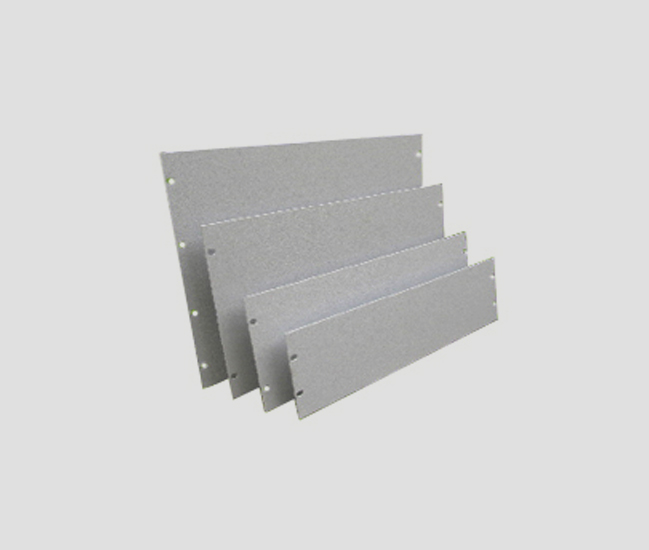

Blank Panels :
- Material - Aluminium Sheet 2.5mm
- Finish- Natural Anodise Powder Coating
- Size-1U, 2U, 3U, 4U, 5U, 6U, 9U, 12U( 1U=44.45 mm)
- Width- 19 inches.
