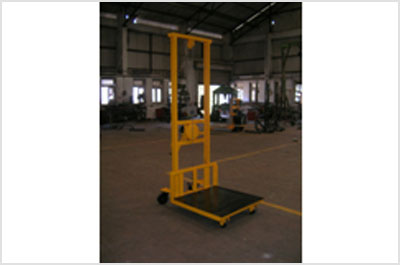

Manual Mechanical Stacker

Capacity upto 500 kgs.

Lifted height up to 2000 mm.

Rigid in construction.

Easy to use.

Pure mechanical operation. Lifting through triple spur gear winch.

No hydraulic hence no oil leakages.

Zero maintenance stacker.

Low initial cost.

Manual Hydraulic Stacker

Capacity upto 800 kgs.

Lifted height up to 2000 mm.

Rigid in construction.

Easy to use.

hydraulically operated. Lifting through hand pump and hydraulic cylinder.

Manual hydraulic operation hence no electrical power required.

Low operating and maintenance cost.

Low initial cost.

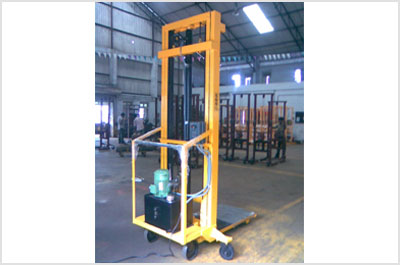

Electro Hydraulic Stacker

Capacity upto 2000 kgs.
Lifted height up to 4000 mm.
Rigid in construction.
Easy to use.
hydraulically operated. Lifting through Electric Motor, gear pump and hydraulic cylinder.
Electro hydraulic lifting and lowering through gravity hence electrical power is required only while lifting whereas while lowering electrical power is not required.
Low operating and maintenance cost.

Combined Electro Cum Manual Hydraulic Stacker

Capacity upto 2000 kgs.
Lifted height up to 4000 mm.
Rigid in construction.
Easy to use.
hydraulically operated. Lifting through Electric Motor,gear pump and hydraulic cylinder.
Electro-hydraulic lifting and lowering through gravity hence electrical power is required only while lifting whereas while lowering electrical power is not required.
Low operating and maintenance cost.
In this stacker an auxillary hand pump is provided in the power pack so that in case of power failure the material can be lifted through hand pump, so the time is saved and the material is stacked till the power is resumed.

Semi Electric Stacker Or Battery Lift Stacker

Capacity upto 2000 kgs.
Lifted height up to 4000 mm.
Rigid in construction.
Easy to use.
hydraulically operated. Lifting through d.c. Motor,gear pump and hydraulic cylinder.
Battery power is used to operate the system. Hence the stacker can be moved any where without any trailing wires.
A battery charger is provided to charge the batteries for the next operating shift.
Pushing pulling of the stacker is done manually hence it is called a semi electric stacker.

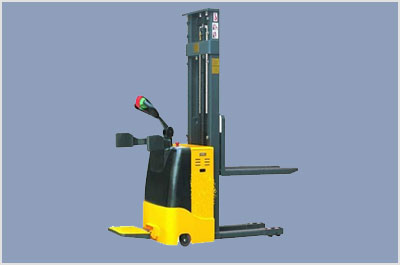

Full Electric Stacker

Capacity upto 2000 kgs.
Lifted height up to 4000 mm.
Rigid in construction.
Easy to use.
hydraulically operated. Lifting through d.c. Motor,gear pump and hydraulic cylinder.
Battery power is used to operate the system. Hence the stacker can be moved any where without any trailing wires.
A battery charger is provided to charge the batteries for the next operating shift.
Pushing pulling of the stacker is done electrically , the operator can stand on foot rest platform and maneuver the stacker through controls provided hence it is called a full electric stacker.
