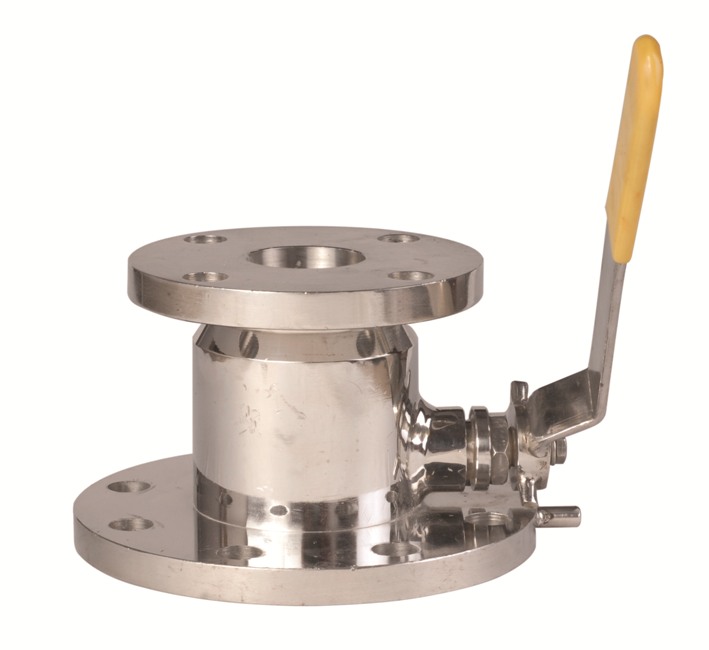

Ball Type Flush Bottom Tank Valve
Ball type flush bottom tank valve (lever operated and gear operated)
Technical Specification
HYDRAULIC TEST PRESSURE |
||
BODY |
30 Kg/cm2 (g) |
|
SEAT |
21 Kg/cm2 (g) |
|
AIR TEST |
||
SEAT |
7 Kg/cm2 (g) |
|
Bill Of Materials
|
DESCRIPTION |
MATERIALS |
1 |
BODY |
SS 316 |
2 |
SLEEVE |
SS 316 |
3 |
BALL |
SS 316 |
4 |
SPINDLE |
SS 316 |
5 |
GLAND |
SS 316 |
6 |
GLAND PACKING |
PTFE |
7 |
SEAT RING |
PTFE |
8 |
BODY SEAL |
PTFE |
9 |
STEM SEAL |
PTFE |
10 |
LEVER |
SS 304 |
Applicable Standard
- FACE TO FACE - ANSI B 16.10
- MFG. STD – BS 5351
- TESTING STANDARDS - API 598
