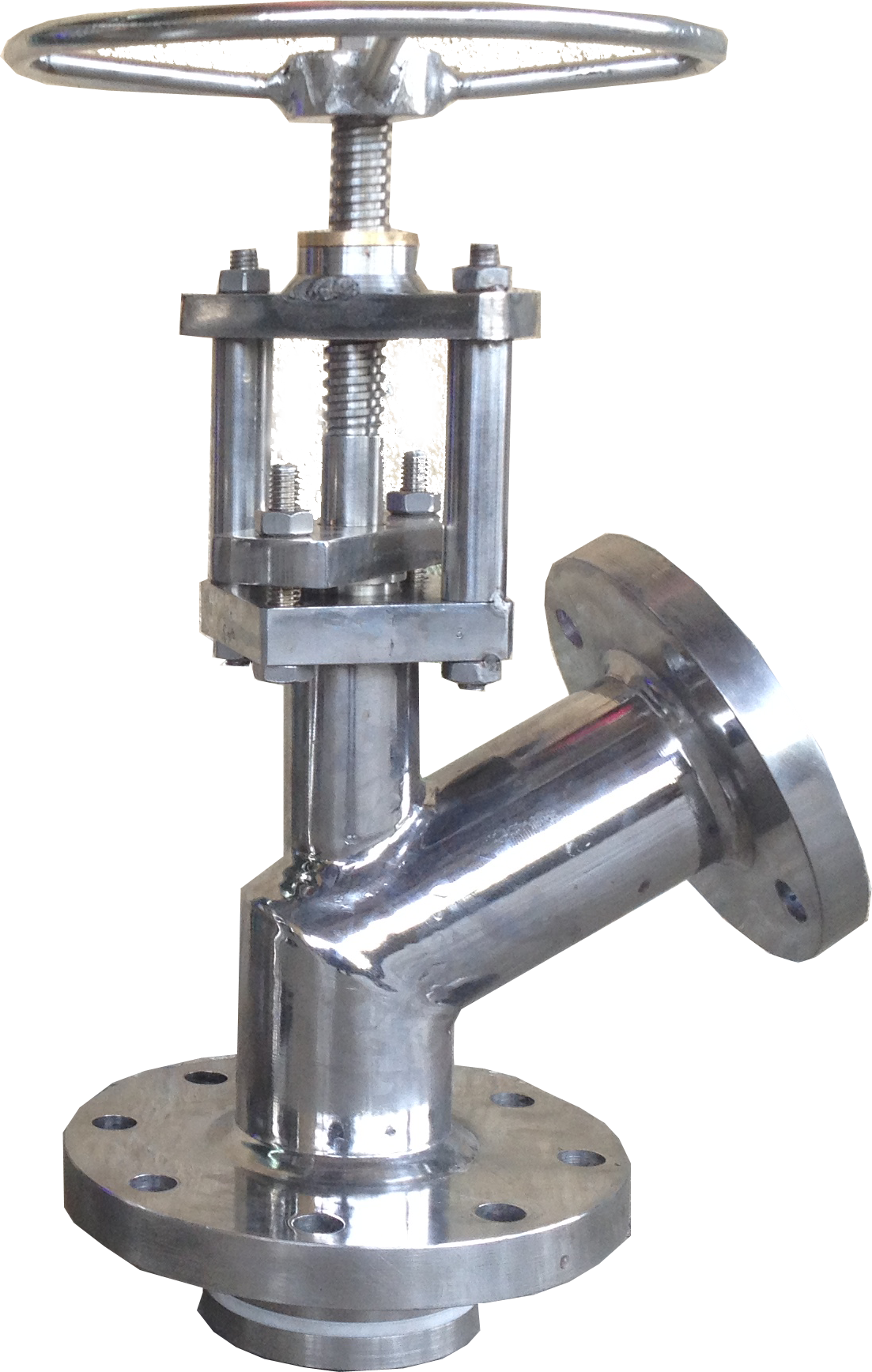

Y-Type Flush Bottom Tank Valve
We offer a wide range of flush bottom tank valves. These are available in opening inside tank and opening inside valve design with teflon seating and metal to metal seating. We can offer these valves with following features :
- Manual/Gear Operation
- Motorized/Pneumatic operation
- RTD for temperature indication
- Special Alloys
Technical Specification
HYDRAULIC TEST PRESSURE |
|
BODY |
30 Kg/cm2 (g) |
SEAT |
21 Kg/cm2 (g) |
AIR TEST |
|
SEAT |
7 Kg/cm2 (g) |
Bill Of Materials
| PARTS | MATERIALS |
| BODY | ASTM A216 GR. WCB 1351 GR. CF8 M / CF8 / CF3 M / CF3, ALLOY 20, INCONEL 600, HASTELLOY-B, HASTELLOY-C, MONEL (INVESTMENT CASTING) |
| DISC | AISI 304 / 316/ aLLOY 20, INCONEL 600, HASTELLOY-B, HASTELLOY-C, MONEL |
| CHECK NUT | AISI 304 / 316 |
| GLAND | AISI 304 / 316 |
| GLAND PACKING | TEFLON IMPREGNATED ASBESTOS/ TEFLON |
| YOKE PLATE | MILD STEEL / SS 304 |
| YOKE BUSH | GUN METAL |
| PILLAR STUD & NUT | M.S. / AISI 304 / 316 |
| SPINDLE | AISI 304 / 316 |
| HAND WHEEL | CAST IRON |
| HAND WHEEL NUT | MILD STEEL |
Applicable Standard
- Alloy 20, Inconel 600
- HASTELLOY - B
- HASTELLOY - C
- MONEL
