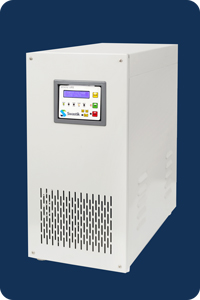

Static UPS – High Power
- Low Running Cost
- Silent Operation
- Fully Automatic
- No Interruption
- Static Transfer Switch
- Sine Wave Output
| Models | 5KVA | 6KVA | 8.5KVA | 11KVA |
| Battery Voltage | 72V | 96V | 144V | 180V |
| Input AC | ||||
| Peak Efficiency | > 85% | > 85% | > 90% | > 92% |
| Charger | ||||
| Output | Inverter Mode-230V ± 2% 50Hz Pure Sine Wave | |||
| Inverter | IGBT Module with H.F. PWM | |||
| Indications | ||||
| 1.Visual | Mains ON, Inverter ON, Overload, Battery Low, charging ON, System ON | |||
| 2. Audio | Mains to Inverter at Start, Battery Low early warning and overload | |||
| 3. Input | MCB, Over/Under Voltage cut-off | |||
| Protections | ||||
| 1. Battery | Fuse Link | |||
| 2. Output | Electronic Trip for Overload and Short Circuit | |||
| Change Over | Static Switch as standard | |||
| Models | 2.4/5.0/72V | |||
| Load* Option | A | B | C | |
| Tube | 16 | 9 | 16 | |
| Fan | 14 | 5 | 10 | |
| CFL | 10 | 6 | 10 | |
| TV | 3 | 1 | 2 | |
| Computer | 0 | 0 | 1 | |
| Dot Printer | 0 | 0 | 1 | |
| Mixer / W Machine | 1 | 0 | 0 | |
| Refrigerator | 1 | 0 | 0 | |
| Air Condition (1 ton) | 0 | 1 | 0 | |
| Water Motor/Cooler | 0 | 0 | 2 | |
Bunglows, Hospitals, Restaurants, Parlours, Petrol Pumps, Showrooms & Offices to run Refrigerator, Air Condition, Pump, Electric Motor, Cooler, Suction Machine, X-ray Machine, Dental Chair, etc.
| Models | 6KVA/96V | 8.5KVA/144V | 11KVA/180V | ||||||
| Load* Option | A | B | C | A | B | C | A | B | C |
| Tube | 20 | 12 | 7 | 22 | 15 | 12 | 32 | 12 | 20 |
| Fan | 18 | 16 | 4 | 12 | 6 | 10 | 18 | 3 | 10 |
| CFL | 16 | 10 | 5 | 10 | 6 | 10 | 12 | 4 | 12 |
| TV | 3 | 2 | 1 | 2 | 2 | 2 | 2 | 1 | 1 |
| Computer | 0 | 0 | 1 | 0 | 0 | 1 | 0 | 0 | 1 |
| Dot Printer | 0 | 0 | 1 | 0 | 0 | 1 | 0 | 0 | 1 |
| Mixer / W Machine | 1 | 1 | 0 | 1 | 0 | 1 | 1 | 0 | 0 |
| Refrigerator | 1 | 0 | 0 | 1 | 0 | 0 | 1 | 0 | 0 |
| Air Condition (1 ton) |
0 | 1 | 0 | 1 | 0 | 0 | 0 | 1 | 0 |
| Air Condition (1.5 ton) |
0 | 0 | 1 | 0 | 0 | 1 | 1 | 0 | 1 |
| Air Condition (2 ton) |
0 | 0 | 0 | 0 | 1 | 0 | 0 | 1 | 0 |
| Water Motor/Cooler | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 0 | 1 |
Bunglows, Hospitals, Restaurants, Parlours, Petrol Pumps, Showrooms & Offices to run Refrigerator, Air Condition, Pump, Electric Motor, Cooler, Suction Machine, X-ray Machine, Dental Chair, etc.
