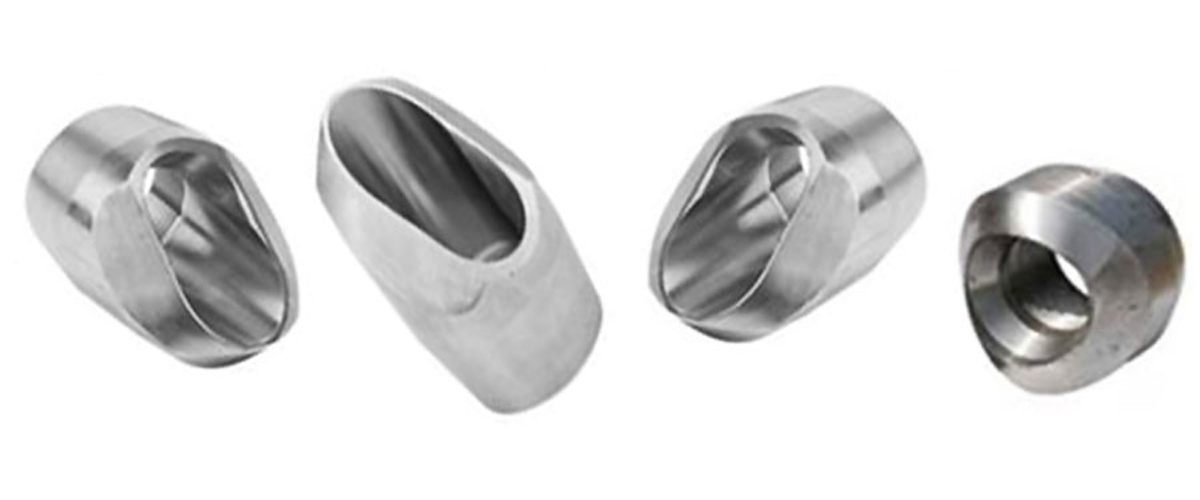

Thread 45° Lateral Fittings Manufacturer, Supplier and Exporter in Mumbai, India
| 45° Lateral Specifications | |||
|---|---|---|---|
| Family | Outlets Pipe Fitting | Shape | Latrolet |
| Material | Stainless Steel, Carbon Steel, Alloy Steel, Duplex Steel, Nickel Alloy | Make | TII |
| Size | 1/8″-4″ | Thickness | 3000 Class, 6000 Class |
| Type | Forged | Variation | |
| Finish | Shot Blast, Sand Blast, Electro polish | End | |
| Marking | TII-Specs-Description-Heat No. | Packing | Protected by Cap |

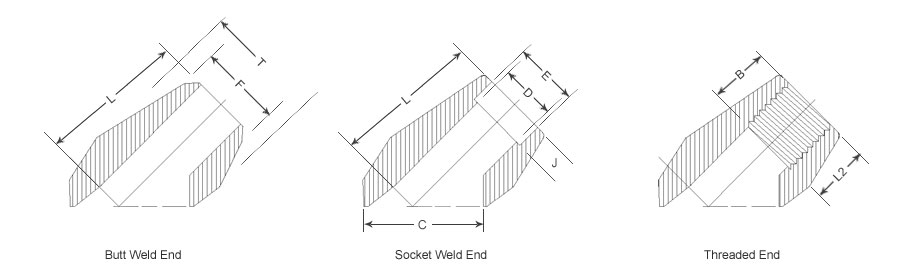

| Size Chart | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RATING | NOMINAL PIPE SIZE | |||||||||||||
| 3000 lb | inch | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 | 21/2 | 3 | 4 | |
| L | 40.5 | 40.5 | 40.5 | 47.6 | 55.6 | 60.3 | 66.7 | 81.0 | ||||||
| C | 34.9 | 34.9 | 34.9 | 43.7 | 54.0 | 67.5 | 76.2 | 104.8 | ||||||
| D | max min |
10.0 8.5 |
13.3 11.8 |
16.6 15.0 |
21.7 20.2 |
27.4 25.9 |
35.8 34.3 |
41.6 40.1 |
53.3 51.7 |
|||||
| F | 28.6 | 28.6 | 28.6 | 35.7 | 44.5 | 54.8 | 63.5 | 82. | ||||||
| T | 34.9 | 44.5 | 54.8 | 63.5 | 73.0 | 88.9 | ||||||||
| L | 40.5 | 40.5 | 47.6 | 55.6 | 60.3 | 66.7 | 81.0 | |||||||
| C | 34.9 | 34.9 | 43.7 | 54.0 | 67.5 | 76.2 | 104.8 | |||||||
| 6000 lb | D | max min |
7.1 5.6 |
9.9 8.4 |
12.5 11.0 |
16.3 14.8 |
21.5 19.9 |
30.2 28.7 |
34.7 33.0 |
43.6 42.1 |
||||
| F | 28.6 | 28.6 | 35.7 | 44.5 | 54.8 | 63.5 | 82.6 | |||||||
| T | 44.5 | 50.8 | 61.9 | 73.0 | 82.6 | 103.2 | ||||||||
| THREAD* | B | 8.1 | 9.1 | 10.9 | 12.7 | 14.7 | 17.0 | 17.8 | 19.0 | |||||
| L2 | 10.2 | 10.4 | 13.6 | 13.9 | 17.3 | 17.9 | 18.4 | 19.2 | ||||||
| SOCKET | E | max min |
14.3 14.1 |
17.8 17.5 |
22.0 21.7 |
27.3 27.0 |
34.1 33.8 |
42.8 42.5 |
48.9 48.6 |
61.4 61.1 |
||||
| J | min | 9.7 | 9.7 | 9.7 | 12.7 | 12.7 | 12.7 | 12.7 | 15.7 | |||||
| mm | 6 | 8 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | ||
