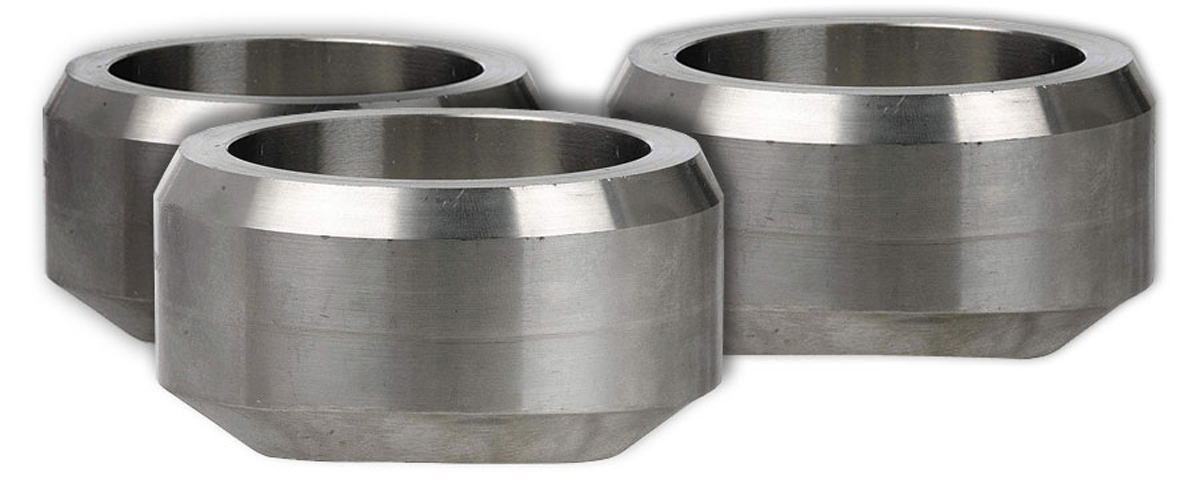

Forged Butt Weld Branch Fitting – Weldolet Manufacturer, Supplier and Exporter in Mumbai, India
| Weldolet Specifications |
| Family |
Butt Weld Branch |
Shape |
Weldolet |
| Material |
Stainless Steel, Carbon Steel, Alloy Steel, Duplex Steel, Nickel Alloy |
Make |
TII |
| Size |
1/8″-4″ |
Thickness |
SCH 5-SCH 160 |
| Type |
Seamless, Welded(ERW), Fabricated |
Variation |
|
| Finish |
Shot Blast, Sand Blast, Electro polish |
End |
Bevelled |
| Marking |
TII-Specs-Description-Heat No. |
Packing |
Protected by Cap |

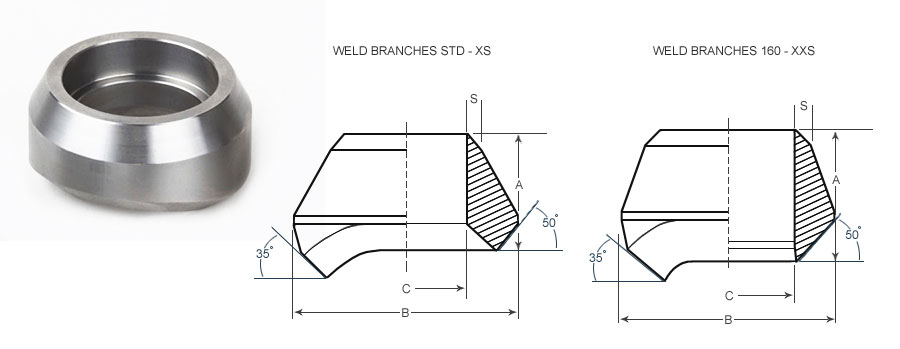

| Size Chart |
| Type / Schedule |
Nominal Pipe Size |
| Inch |
1/8 |
1/4 |
3/8 |
1/2 |
3/4 |
1 |
1 1/4 |
1 1/2 |
2 |
2 1/2 |
3 |
4 |
| Standard Weight & Extra Strong |
A |
14.3 |
14.3 |
19.0 |
19.0 |
22.2 |
27.0 |
31.7 |
33.3 |
38.1 |
41.3 |
44.4 |
50.8 |
| B |
25.4 |
25.4 |
31.7 |
34.9 |
44.5 |
54.0 |
65.1 |
73.0 |
88.9 |
103.2 |
122.2 |
152.4 |
| C |
15.9 |
15.9 |
19.0 |
23.8 |
30.2 |
36.5 |
44.5 |
50.8 |
65.1 |
76.2 |
93.7 |
120.6 |
| Schedule 160 & Double Extra Strong |
A |
|
|
|
28.6 |
31.7 |
38.1 |
44.5 |
50.8 |
55.6 |
61.9 |
73.0 |
84.1 |
| B |
|
|
|
34.9 |
44.5 |
50.8 |
61.9 |
69.9 |
81.0 |
96.8 |
120.6 |
152.4 |
| C |
|
|
|
14.3 |
19.0 |
25.4 |
33.3 |
38.1 |
42.9 |
54.0 |
73.0 |
98.4 |
| mm |
6 |
8 |
10 |
155 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
