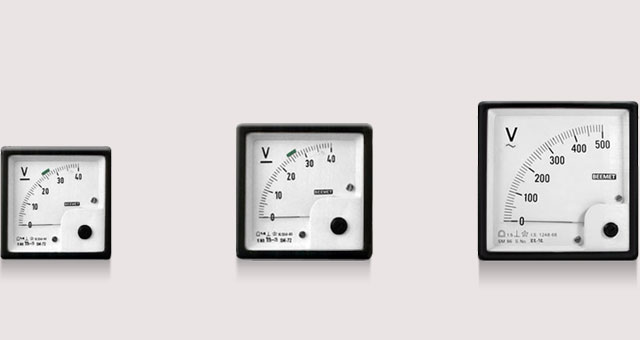

Ammeter / Voltmeter

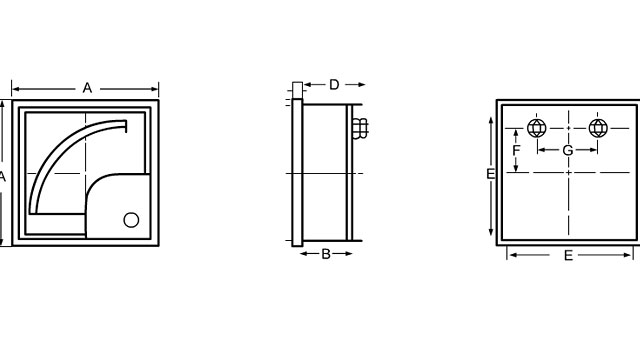

| Model | A | B | C | D | E | F | G | |
|---|---|---|---|---|---|---|---|---|
| CM-72 | 72 | 33 | 6 | 41 | 66 | 18 | 38 | |
| CM-96 | 96m | 33 | 6 | 41 | 90 | 30 | 40 | |
| Class of Accuracy | Panel | |||||||
| 1.5 | 67x675 | |||||||
| 1.5 | 91x91 | |||||||
Key Features:
- Compact in size (build in depth 33mm).
- Rugged movement ensures sustained accuracy and reliability.
- Square bezel permits edge to edge mounting, allowing maximum use of panel space.
- Clear scaling for easy reading.
Switchboard instruments are designed to an internationally accepted standard.The dimensions comply with the requirements of DIN 43700 and scales with DIN 43802. The performance confirms to IS 1248-83/93. The Cases are made of flame-retardardant plastic material which has high tracking index for maximum electrical strength and safety.
| Model | A | B | C | C' | D | D' | E | F | F' | G | G' | H |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DCF-65 | 12 | 27 | 65 | 65 | 48 | 48 | 25 | 24 | 24 | 24 | 24 | 4 |
| DCF-83 | 15 | 25 | 83 | 83 | 57 | 57 | 38 | 28.5 | 28.5 | 28.5 | 28.5 | 3.5 |
| DCF-83 | 16 | 27 | 120 | 102 | 102 | 90 | 38 | 51 | 51 | 51 | 39 | 3.5 |
Key Features:
- Tough one piece moulded acrylic front giving shadow free dial illumination and an elegant crystal clear appearance capable of fitting into modern equipment styles & colour.
- Choice of coloured masks for lower area available.
- Strong rear body case moulding of thermosetting plastic.
- High stability moving coil movement with pivot, jewel & spring.

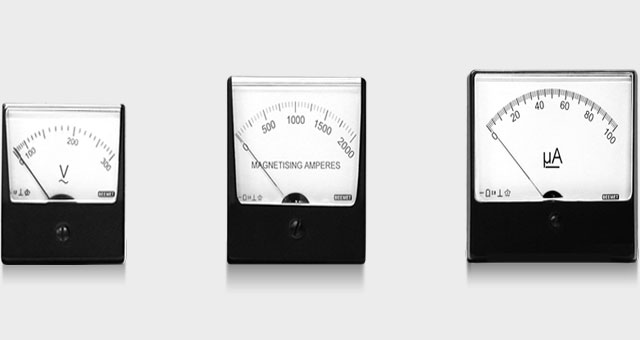

The CF range of three instruments ( Size 2 1/2", 3 1/2", 4 1/2" ) provides a contemporary styled yet cost effective quality solution for various meter application.

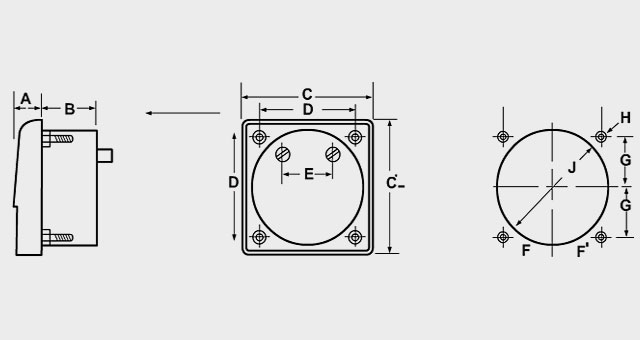

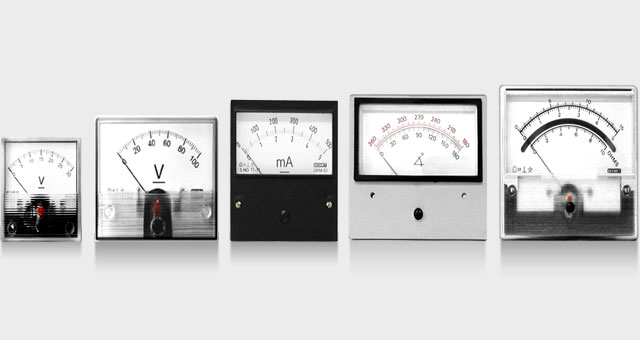

DRM/ARM/SRM Series

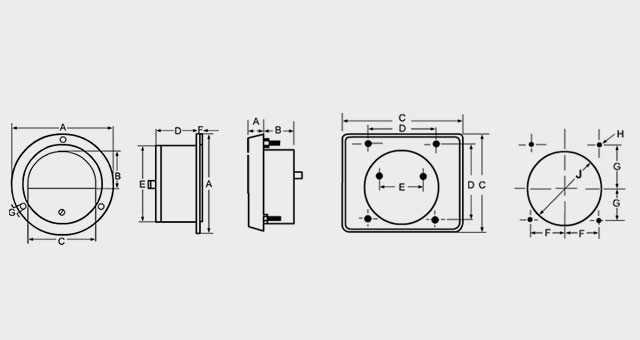

| Model | A | B | C | D | E | E' | F | G | G' | H | J |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DCM-65 | 2.5 | 10 | 27 | 55 | 65 | 65 | 25 | 62.5 | 32.5 | 38 | 36 |
| DRM-80R | 3 | 13 | 22.5 | 54 | 83 | 64 | 31 | 80 | 39 | 23.5 | 25 |
| DRM-83 | 3 | 10.5 | 25 | 65 | 83 | 83 | 38 | 76 | 38 | 35 | 41.5 |
| DRM-106 | 4 | 12 | 27 | 65 | 106 | 84 | 36 | 98.5 | 50 | 33 | 44 |
| DRM-106 | 3 | 12 | 27 | 70 | 120 | 102 | 38 | 115 | 55 | 37.5 | 49 |
Key Features:
- Rear mounting gives complete safety in transit & enhances the outlook of the panel.
- DRM-106 has a glass front whereas all the other models have clear acrylic fronts.
- Only the meter dial is visible, providing clear & well defined scale markings.
- High stability moving coil movement with pivot, jewel & spring.
The RM range of five back of panel mounting instruments is uniquely styled to allow maximum use of front panel space.

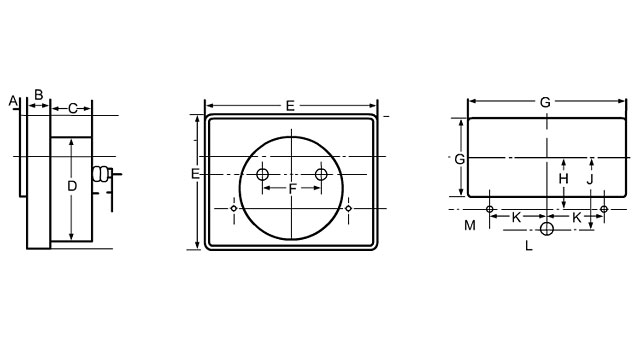

| Model | A | B | C | C' | D | D' | E | F | F' | G | G' | H |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DCM-65 | 85 | 35 | 55 | - | 30 | 65 | 5 | 4 | 65 | |||
| DRM-106 | 3 | 12 | 106 | 84 | 60 | 66 | 36 | 30 | 30 | 37.5 | 28.5 | 3.5 |

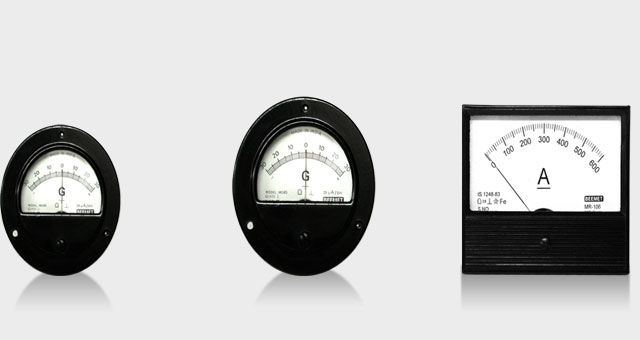

Key Features:
- Traditionally styled range of meter available in round (65 mm dia) & rectangular (106x84 mm) sizes.
- Strong body case manufactured from fully thermosetting phenolic plastic.
- Glass front for long lasting clear visibility.

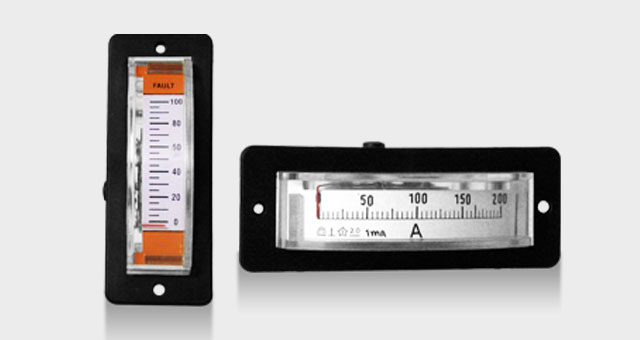

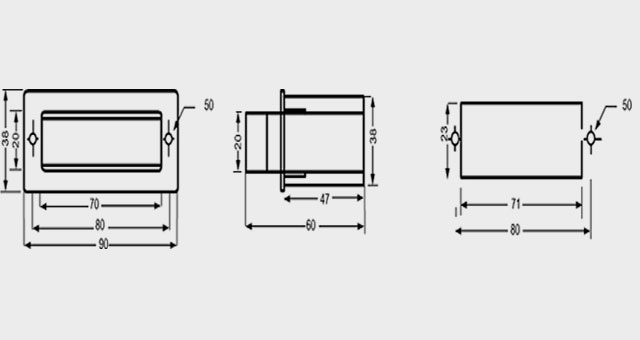

EW/CW Series
- EW 100 is uniquely styled & constructed to provide a slim landscape appearance to minimize panel space requirements.
- Ruggedly designed with high stability moving coil movement.
- Constructed with transperant acrylic front with bezel moulded in black ABS.
- Can be installed in vertical or horizontal position.

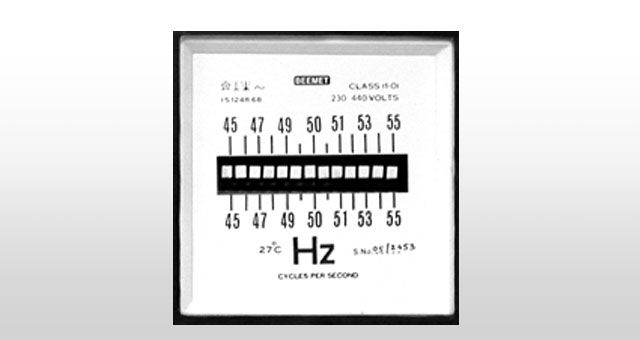

Frequency Meter
Key Features:
- Vibrating Reed type frequency meters are available in size 72 x 72 & 96 x 96mm suitable 110V, 230V & 440V AC Operation.
| Model | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| SM-72 | 72 | 33 | 6 | 41 | 66 | 18 | 38 |
| SM-96 | 96 | 33 | 6 | 41 | 90 | 30 | 40 |
| Class of Accuracy | Panel |
|---|---|
| 1.5 | 67x67 |
| 1.5 | 91x91 |

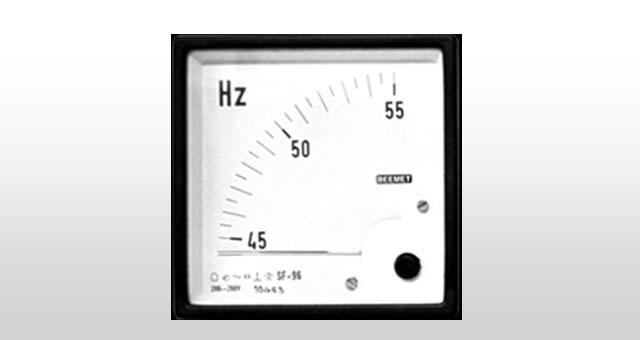

Key Features:
- Frequency Meters pointer type with inbuilt transducer are available in size 72 X 72, 96 X 96 mm suitable for 110V, 230V & 440V AC.
| Model | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| SM-72 | 72 | 33 | 6 | 41 | 66 | 18 | 38 |
| SM-96 | 96 | 33 | 6 | 41 | 90 | 30 | 40 |
| Class of Accuracy | Panel |
|---|---|
| 1.5 | 67x67 |
| 1.5 | 91x91 |

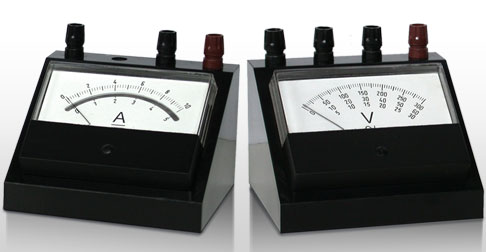

Educational Meter
Key Features:
- BEEMET Portable Desk Top instruments are specially designed for easy use in educational institutions, laboratories & workshops.
- Meters are inclined for easy reading & mounted on ABS plastic moulded desk type stand with connections on top terminals.

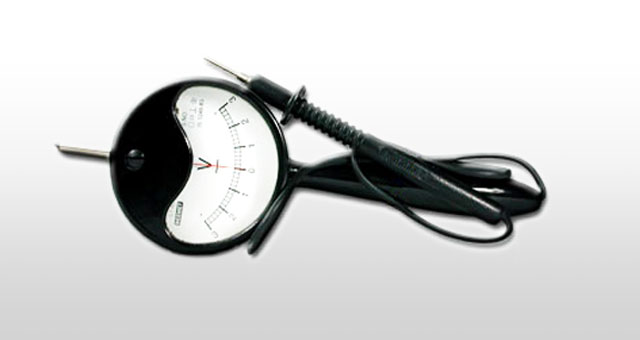

Battery Cell Meter
Key Features:
- The Cell Tester is housed in black phenolic moulded case of 65mm diameter.
- A terminal spike is fitted on the top of the instrument which can be directly connected to one end of a battery terminal.
- At the other end a flexible lead passes through a bakelite handle terminated in a 150mm long insulated prod.
- This Centre zero instruments help to read the voltage irrespective of polarity.
- Ranges: 3-0-3V, 30-0-30V.
