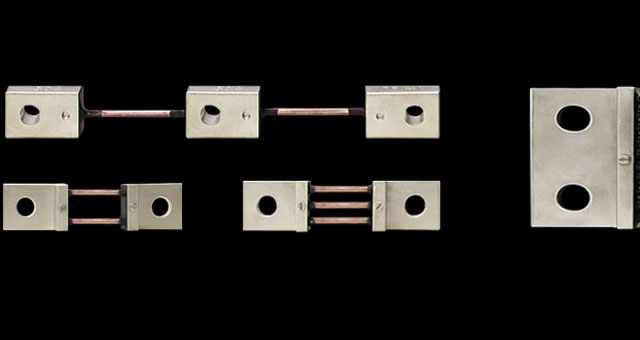

Shunts
| Accuracy class | Overload Capacity | Temperature Coefficient | Temperature rise |
| 1.0 % | Continuous overload : 1.2 times rated current | 0.002 % per° C | When mounted with free ventilation maximum rise 120° C at the centre & 90° C at the ends. |
- Shunts are used with Moving Coil Ammeters for the measurement of current in DC Circuits.
- External Shunts are available with current rating from 1 Amp. to 10,000 Amp. & Millivolt drops of 50mV, 60mV, 75mV, 200mV.
- Shunts are supplied with leads of standard resistance 0.025 ohms.
