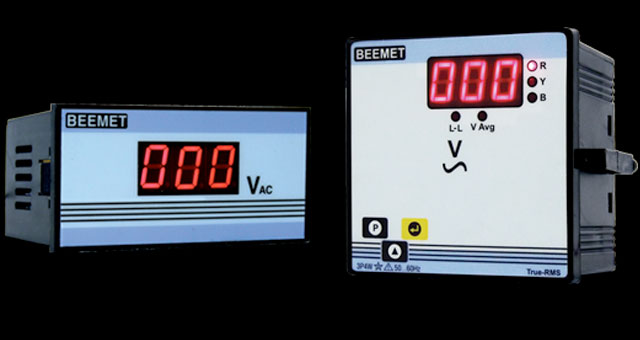

Digital Meter
| Specification | |
|---|---|
| System | 1 Phase |
| Aux. Supply | 230V / 110VAC 50Hz (-20% + 15%) |
| Burden on Aux. | < 3 VA |
| Voltage Input | See Range |
| Temp | 0-55°C |
| Humidity | < 90% RH (non condensing) |
| Accuracy | 0.5% of FS ± 2 Digit |
| Weight | 300 gms |
| Model | Bezzel | Depth (behind bezzel) | Panel Cut Out |
|---|---|---|---|
| 96x96 | 96x96m | 80 mm | 92x92 mm |
| 48x96 | 48x96m | 60 mm | 44x92 mm |
| Ranges | |||
| DC mV | 0 - 200 mV | ||
| DC V | 0-2 / 20 / 200 V | ||
| AC mV | 0 - 200 mV | ||
| AC V | 0-2 / 20 / 100 V / 200 / 500 V | ||
Key Features:
- 3 1/2 Digit - Dual Slop A/D Conversion
- Super bright LED display for crystal clear long distance day light viewing.
- Built in Transducer.
- Compact size
- Push - Fit Mounting in 48 x 96 Model

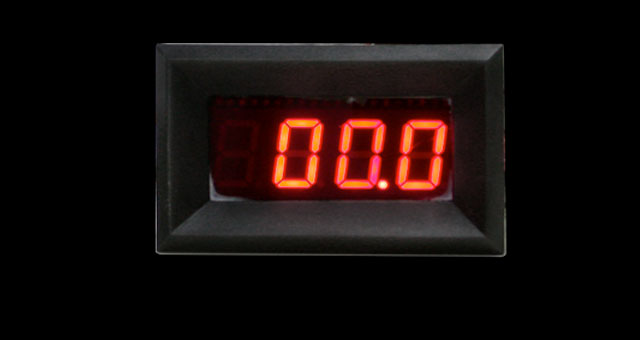

BEEMET 3 1/2 digit LED DC Panel Module is a very compact package incorporating dual slope A/D converter, with 200mV full scale input sensitivity. The use of large size LED makes the module easily readable. The single 5V DC operation enables the module to be easily operated with the most commonly used system power source.
Key Features:
- Auto zeroing is provided the circuit itself & automatic input polarity indication.
- High input impedance > 100M Ohms.
- Display - 14.2mm LED Red - standard or Green - optional
Multifunction Meter
| Specification | |
|---|---|
| System | 3 Phase 3 Wire |
| Aux. Supply | 230V 110VAC 50Hz (-20% + 15%) |
| Burden on Aux. | < 4 VA |
| Voltage Input | 110 / 415 / 440 VAC (L-L) 500Vmax |
| Current Input | 1 Amps / 5 Amps |
| Burden on CT | 0.2 VA |
| Temp | 0-55°C |
| Humidity | < 90% RH (non condensing) |
| Weight | <300 gms |
| Accuracy | |||
| Voltage | 0.5% of FS ± 2 Digit | ||
| Current | 0.5% of FS ± 2 Digit | ||
| Resolution | |||
| Volts | 1V | ||
| Amps | 0-99 : 0.1 A 100-999 : 1A > 1000 : 0.01 KA | ||
Key Features:
- State of Art Microcontroller Based Design.
- Display Input/Output Voltage.
- Built in Solid state selector switch for phase selection.
- Super bright LED display for crystal clear long distance day Light viewing.
- Auto scrolling / Manual.
- All CT ratio user Programmable through frong Key Pad.
- Built in Transducer.
- Compact Size.

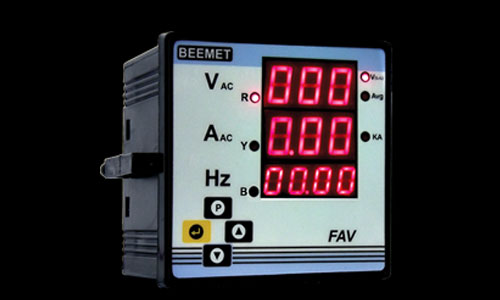

| Specification | |
|---|---|
| System | 3 Phase 3 Wire |
| Aux. Supply | 230V 110VAC 50Hz (-20% + 15%) |
| Burden on Aux. | < 4 VA |
| Voltage Input | 110 / 415 / 440 VAC (L-L) 500Vmax |
| Current Input | 1 Amps / 5 Amps |
| Burden on CT | 0.2 VA |
| Temp | 0-55°C |
| Humidity | < 90% RH (non condensing) |
| Weight | <500 gms |
| Accuracy | |||
| Voltage | 0.5% of FS ± 2 Digit | ||
| Current | 0.5% of FS ± 2 Digit | ||
| Resolution | |||
| Volts | 1V | ||
| Amps | 0-99 : 0.1 A 100-999 : 1A > 1000 : 0.01 KA | ||
Key Features:
- State of Art Microcontroller Based Design.
- Built in Solid state selector switch for phase selection
- Super bright LED display for crystal clear long distance day light viewing
- All CT ratios user Programmable through front Key Pad.
- Built in Transducer
- Compact Size
- Four Digit Frequency Meter.

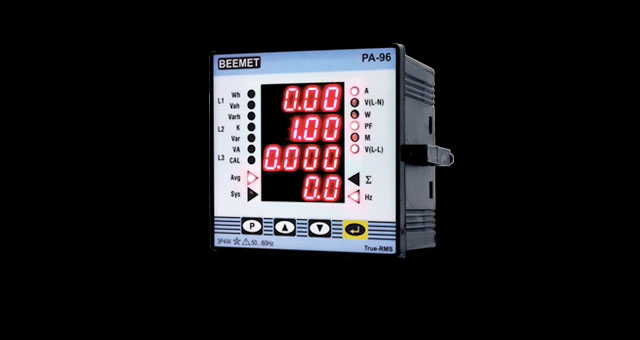

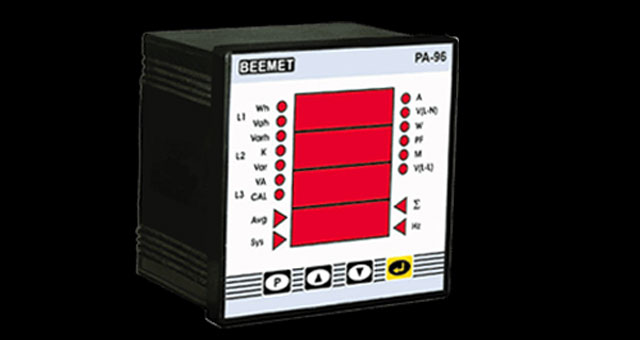

Power Analyser
- State of Art Microcontroller Based Design.
- 4 line ultra bright red LED display to show phase wise & system parameters on same page.
- Site programmable CT & PT ratio.
- True RMS measurement.
- Auto scrolling facility.
- Password protection.
- EEprom retains energy parameters on power fail.
- Monitors Import & Export energy.
- Computer interface (RS 485).
- Pulse output for PLC/SCADA interface.
- Optional: Data logging of all parameters with date & time stamp. (site programmable logging time interval).
