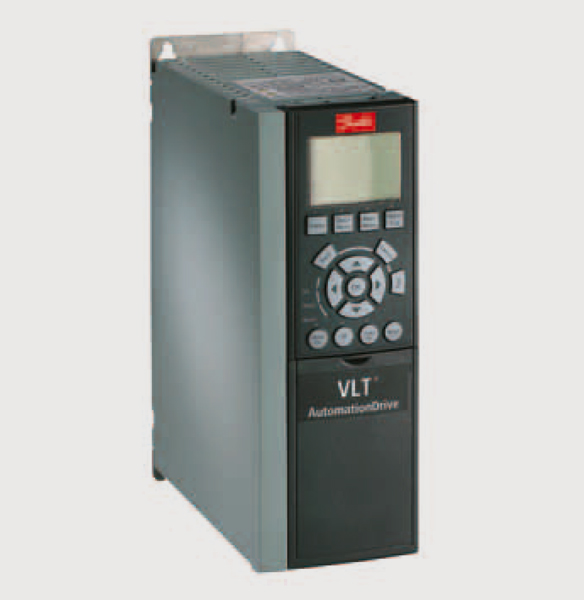

VLT® FC300 Series

The VLT® AutomationDrive is a single drive concept that covers the entire range of application, which is a major benefit in commissioning, operating and maintaining the equipment. The VLT® AutomationDrive series offer an intelligent plug-and-play technology and unmatched reliability making drive operation pure childs play.

Features and benefits

Product Range

• 0.25 - 37 kW (200 - 240 V)
• 0.37 - 800 kW (380 - 500 V)
• 0.75 - 75 KW (525 - 600V)
• 11 kW – 1.4 MW (525 - 690V

Enclosures

The drive meets requirements for enclosure class IP 20/Chassis. Optional IP21/NEMA 1, IP55/NEMA 12, IP 54/NEMA12 or IP66 NEMA 4X.

Smart logic controller

Safety

The VLT® AutomationDrive comes standard with the safe stop functionality suitable for category 3 installations according to EN 954-1. This feature prevents the drive from starting unintended.

Hot pluggable LCP

The Local Control Panel (LCP) can be plugged in or out during operation.

Intelligent heat management

Options

Options for bus communication, synchronisation, user programs, etc., are delivered ready to plug-and-play.

Display options

• Graphical Local Control Panel(LCP 102)
• Numerical Local Control Panel (LCP 101)
• LCP Panel Mounting Kit
• Blind Cover

Application option

24V input option for control voltage.

Fieldbus options

• PROFIBUS DP V1 (MCA 101)
• DeviceNet (MCA 104)
• CAN Open (MCA 105)
• PROFINET (MCA 120)
• EtherNet IP (MCA 121)
• odbus TCP (MCA 122)

I/O options

• General Purpose I/O (MCB 101)
• Encoder Input (MCB 102)
• Resolver Input (MCB 103)
• Relay Option (MCB 105)
• Safe PLC I/O (MCB 108)
• PTC Thermistor Card (MCB 112)
• Ext. Relay Card (MCB 113)
• VLT Sensor Input (MCB 114)

Motion control options

• Motion Control (MCO 305)
• Synchronizing Control (MCO 350)
• Positioning Control (MCO 351)
• Center Winder (MCO 352)

Power Options

• Advanced Harmonic Filter (AHF 005/010 MCE)
• Sine-Wave Filters (MCC 101)
• dU/dt filter (MCC 102)

Other accessories

• IP21/NEMA 1 Kit
• Profibus Adaptor
• Sub-D9 Connector
• Decoupling Plate for Fieldbus Cables USB Connection cable to PC
