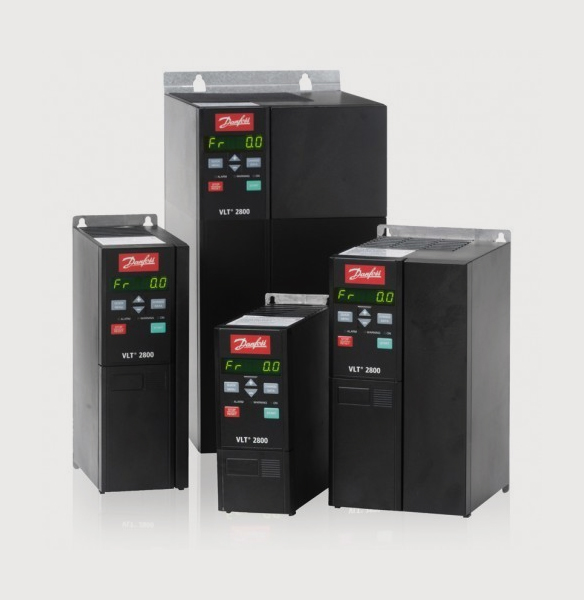

VLT®2800 Series

The VLT® 2800 series is among the smallest multipurpose drives in the market. Designed for space saving side by side mounting. Choose to have it with e.g. Motor Coils, RFI filter, LC+1B filters. The VLT® 2800 is an advanced and versatile drive, easy to operate. The quick menu includes all parameters basically needed for commissioning the drive. Offers fast installation and service

Features and benefits

Product Range

• 0.55 - 18.5 kW (3 phase 380 - 480 V ± 10 %; 50/60 Hz)
• 0.37 - 1.5 kW (Combined 1 and 3 phase 200 - 240 V ± 10 %; 50/60 Hz)
• 2.2 - 3.7 kW (3 phase 200 - 240 V ± 10 %; 50/60 Hz)
• Variable output frequency between 0 and 1000 Hz

Product safety
Speed compensation precise stop
Automatic motor tuning
No derating at 45°C
Flexible mounting
EMC filter and DC coils

Braking facilities

• DC-braking - approx. 20% braking torque
• AC-braking - approx. 20% braking torque
• Dynamic braking
• - Brake chopper built-in
• - 160% braking torque
• LCP2 Alpha numeric display, with copy function
• MCT10 software
