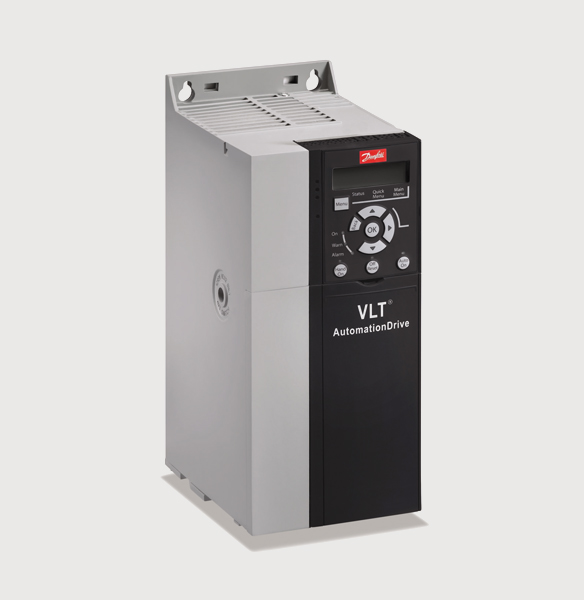

The VLT® AutomationDrive FC 360 is a reliable, energy effi cient and userfriendly solution placed in a price/ performance sweet spot, making it a preferred choice for OEMs. Designed to work in harsh and humid environments, the drive provides reliable operation in industries such as textile, plastic & rubber, metal work, material handling, food & beverage, and building materials. The drive enables precise and effi cient motor control of a wide range of industrial applications such as extruders, winders, conveyors, drawing benches, ring frame, texturizing, pumps, and fans. The effi cient cooling concept ensures there is no forced air over the printed circuit board, which improves reliability. Also, a removable fan makes it possible to clean the inside of the drive quickly and easily, thereby reducing the risk of downtime. FC 360 reduces initial costs and eff ort with a wide range of built-in features that simplify installation and commissioning, including an EMC fi lter, built-in brake chopper up to 22kW, and a user-friendly graphic LCP that supports English and Chinese. A built-in DC choke reduces harmonics to less than 43% ThiD , signifi - cantly extending the lifetime of the DC capacitors. Application selection guides enable users to set up common applications easily.
IP 20
| Feature | Benefit |
|---|---|
| Reliable | Maximum Uptime |
| Max ambient temp 50 ºC (up to 45 ºC without derating in normal operation) | Reliable operation in many environments |
| Coated PCB | Prepared for harsh environments |
| Unique cooling concept with no forced air flowover electronics | Unequalled robustness - maximum uptime |
| User friendly | Saves commissioning and operating cost |
| Graphic LCP supporting English and Chinese | Easy setup |
| Enhanced Numeric LCP | Easy setup |
| Application selection and guidance | Easy commissioning |
| Removable cooling fan | Fast cleaning and extended lifetime |
| Integrated DC choke | Small power cables, less harmonics |
| Built-in EMC filter | Meets class C3 |
| Versatile | Energy saving |
| Automatic Energy Optimizer function | Saves 5-15% energy and reduces operation costs |
| Built-in PID controller | Eliminates external controller |
| Feed-forward PID | Higher stability for workbench |
| Kinetic backup | Controlled ramp down at mains fail can reduce material waste |
| Built-in brake chopper up to 22kW | Saves panel space and cost (no need to buy external braking chopper) |
