⇓ Ultrasonic Plastic Welding Equipments

Ultrasonic energy is mechanical vibratory energy which operates at frequencies beyond audible sound, or 18,000 Hz (18,000 Hz being the upper threshold of the normal human hearing range). Two basic frequencies are used; 20,000 Hz and 40,000 Hz, depending on the application. Selection is based upon the required power levels, the amplitude of vibration required and the size of the ultrasonic tool to be used. Frequency is important because it directly effects the power available and the tool size. It is easier to generate and control high power levels at the lower frequency. Also, ultrasonic tools are resonant members whose size is inversely proportional to their operating frequency. The generation of ultrasonic energy starts with conversion of conventional 50 or 60 Hz electrical power to 20,000 or 40,000 Hz electrical energy by a solid state power supply.

PRODUCTS

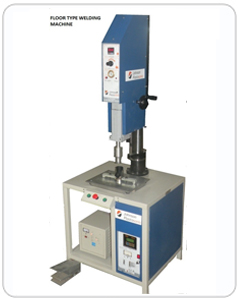

•   Bench type Ultrasonic welding Machines
•   Ultrasonic hand held gun

The machines are available in Different Frequencies & Power

Frequency :                               Powers :

15 khz for bigger jobs                    200w, 1000w,

20 khz industrial standard &          1500w, 2000w & 2500w.

35 khz for precise applications

Ultrasonic Generators

Features :

•   Microcontroller based
•   Auto Tunning Facility
•   IGBT based efficient power circuit
•   PLC interface 4 line backlit LCD display
•   Parts counter
•   LED power indicators
•   Variable 5 programs memory
•   3 different tunings- Delay, weld & hold
•   Various self diagnosis indicators : high / low frequency, overload, high voltage etc.
•   Variable amptitude facility available.
•   Electronic amplitude selection.
•   No need to change booster
•   Weight : 16kg.
