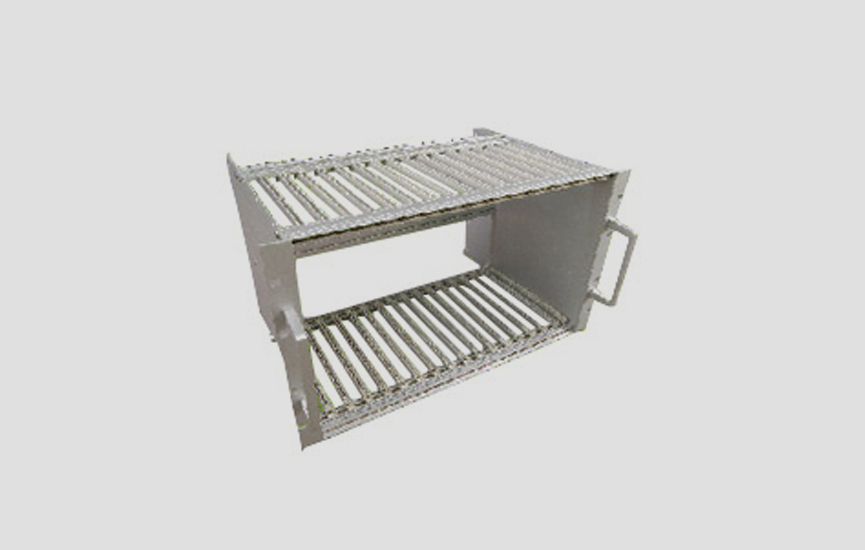

Card Frames (Sub Racks)
We are Manufacturer, Supplier, Exporter of 19 inch Subrack, Standard Heatsinks, Heatsinks, Aluminum Heatsinks, Heat Sinks Extrusion Profiles, Standard Heat Sinks. Our setup is situated in Pune, Maharashtra, India.
Features:
- Side Panels provided with holes at the pitch of 15 mm ,It allows flexible design adjustments.
- Easy to Assemble.
- Top & Bottom cover - Plain or Ventilated
- Support Profiles for mounting in 19" Racks.
- Standard Package are Side Panel- 2, Front Profile-2, Rear Profile-2, Side Profile-2 and Hardware Set- 1

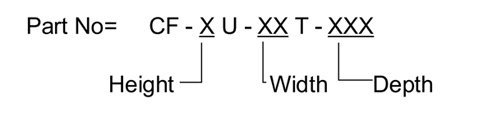

- Ordering Information
Size :
- Height- 3U,4U,6U (1U=44.45 mm) Width-42T,63T,81T,84T (1T=5.08 mm)
- Depth-200 , 260 , 320 mm
Accessories :
- Card Guide- Pitch 148 & 208 screw on / Snapon Material- Polycarbonate , Norell.
- Metal Card Guide-Pitch as Per requirement Finish-Natural anodizing , Nickel Plating.
- Threaded Strips- M2.5 for Cardguide Mounting M3 for Front & Rear Plate Mounting.
- Front & Rear Panels.
- Plug in Modules.
- Handles 1U, 2U, 3U, 4U, 5U
- Top & Bottom Cover-Plain / Ventilated
- Facia Plates.
Material :
Side Panel-2.5 mm Aluminum, Profiles - Aluminum Extruded Section
Finish :
Natural Anodised / Alodine / Yellow Chromate / Powder Coating

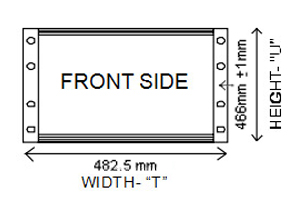

Dimensions :
19" Mounting
| Height | Overall | Usable |
|---|---|---|
| 2U | 88 | 68 |
| 3U | 132.6 | 112.4 |
| 4U | 177 | 157 |
| 5U | 221.6 | 201.4 |
| 6U | 266 | 246 |
| Height | Overall |
|---|---|
| 2U | 76.20 |
| 3U | 57.10 |
| 4U | 101.60 |
| 5U | 146.10 |
| 6U | 190.60 |
| Height | Overall | Usable |
|---|---|---|
| 42T | 269.35 | 213.40 |
| 63T | 375.90 | 320 |
| 81T | 482.60 | 411.50 |
| 84T | 482 | 426.70 |
