Open Frame 2 Post Rack
We are Manufacturer, Supplier, Exporter of Standard Heatsinks, Heatsinks, Aluminum Heatsinks, Heat Sinks Extrusion Profiles, Standard Heat Sinks. Our setup is situated in Pune, Maharashtra, India.

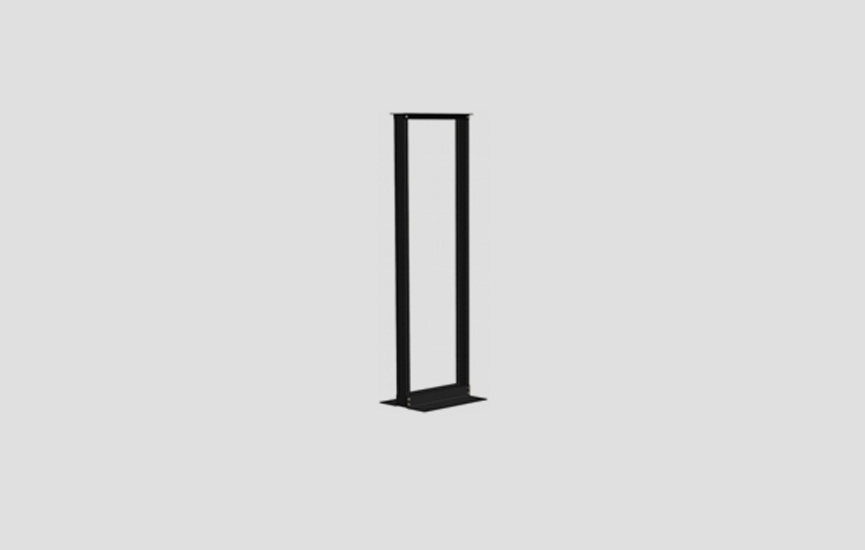

2 Post Open Frame Racks are suitable for High density applications Rigid Extruded aluminum profiles makes it sturdy and light weight Confirms to DIN-41494 Manufactured Under ISO 9001-2015 Manufacturing & Quality Management System
Accessories(optional) :
- Cable Manager
- Rack Mounting Hardware
- Power Distribution Unit - 2U 5/15Amp
- Cantilever Shelves - 1U / 2U
Technical Specification :
- Frame Construction
- Vertical Profiles - Aluminum Extruded Profiles
- Base Angles - Mild Steel 4 mm Thick
- Top Angles - Mild Steel 3 mm Thick
- Finish - Black Powder Coating
- Height Options- 22U , 36U , 42U , 45U , 48U , 52U
- Panel Mounting Holes - M6 Tapping on both side (Conductive)
- Numbering - White Color Screen Printing on Vertical Profiles
Standard Package :
- Vertical Profiles - 2 nos
- Base Angles - 2 nos
- Top Angles - 2 nos
- M 12 X 25 Hex Bolt - 12 nos - For Rack Assembly
