Jyoti Heatsinks Pvt. Ltd.

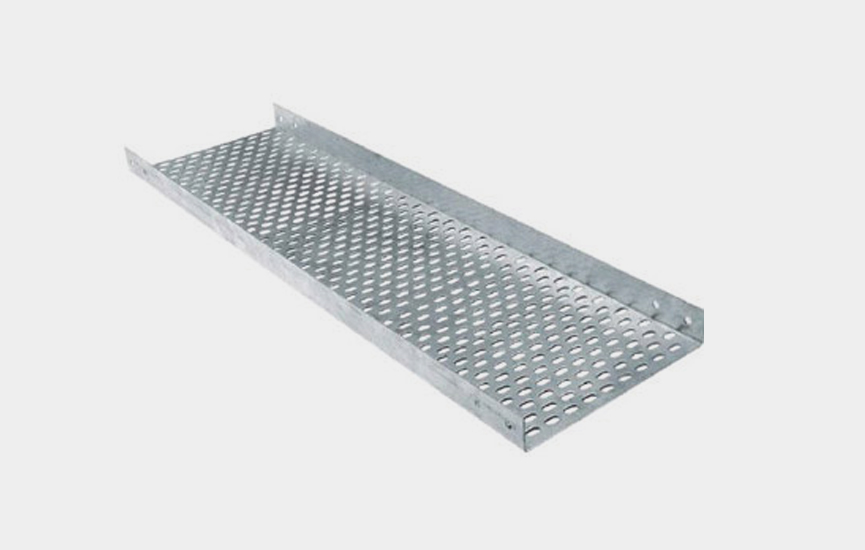

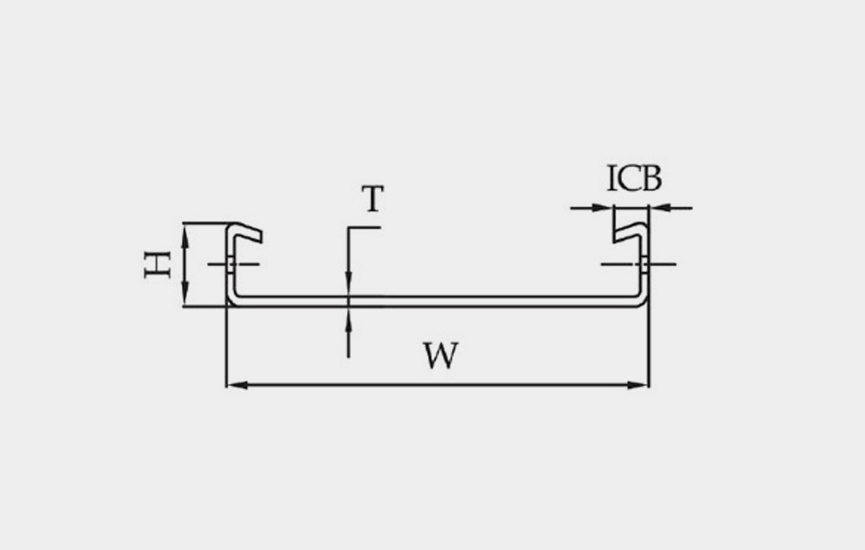

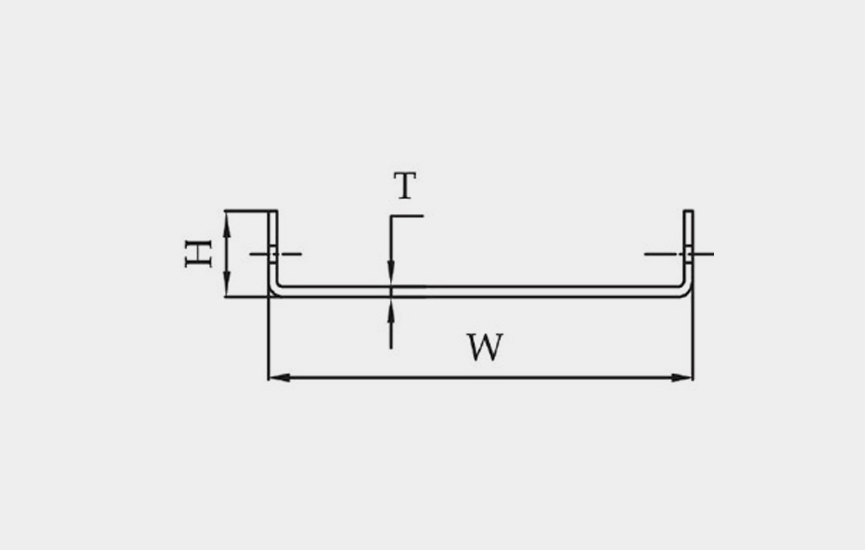

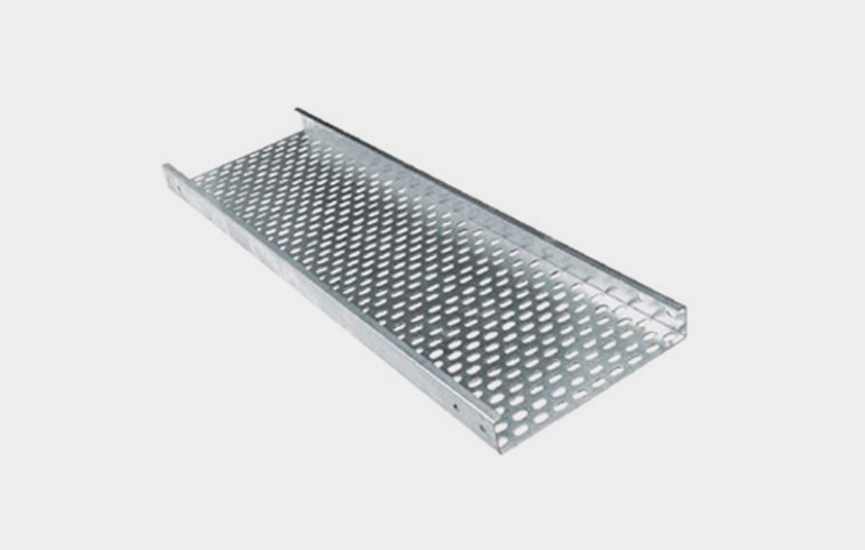

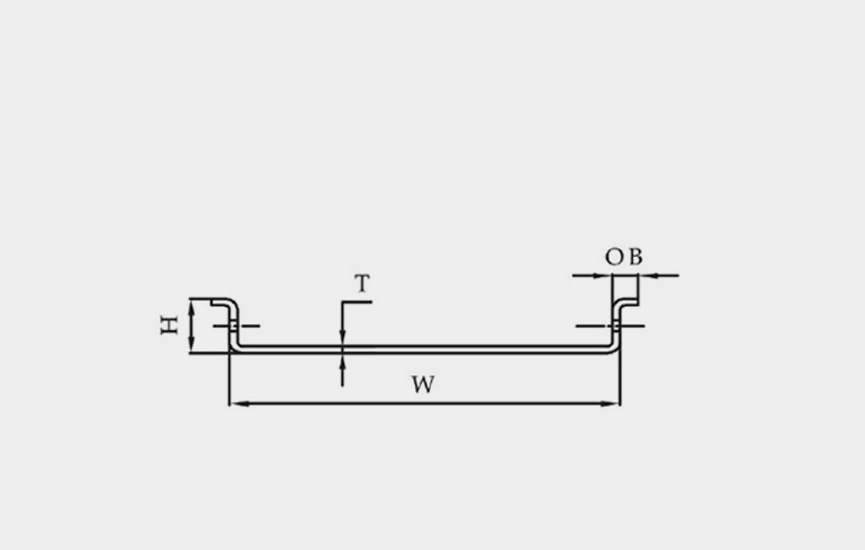

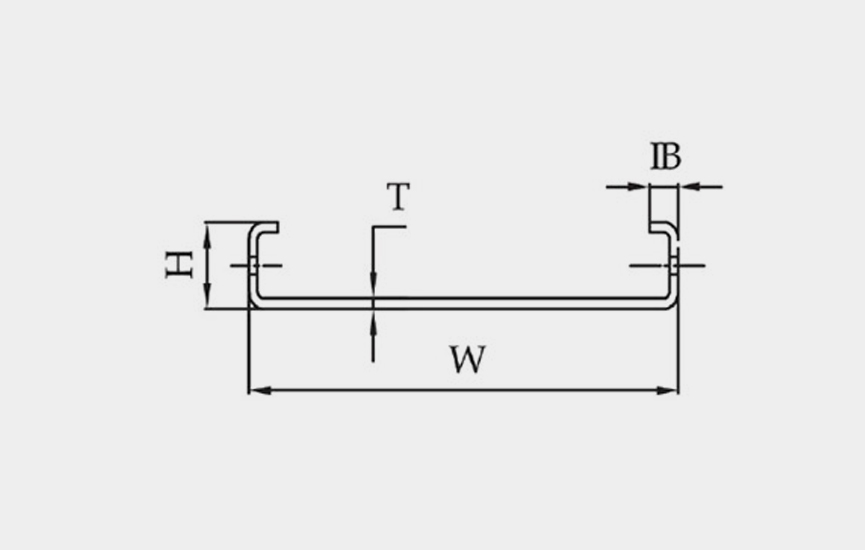

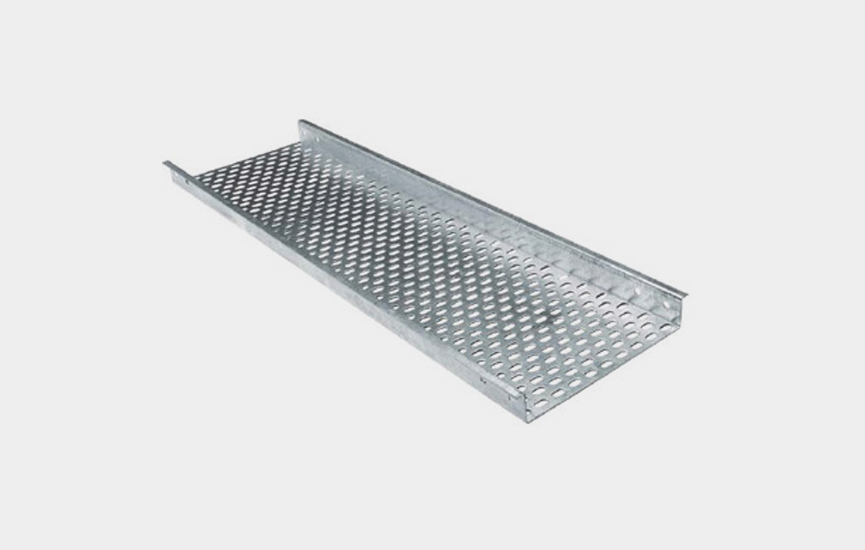

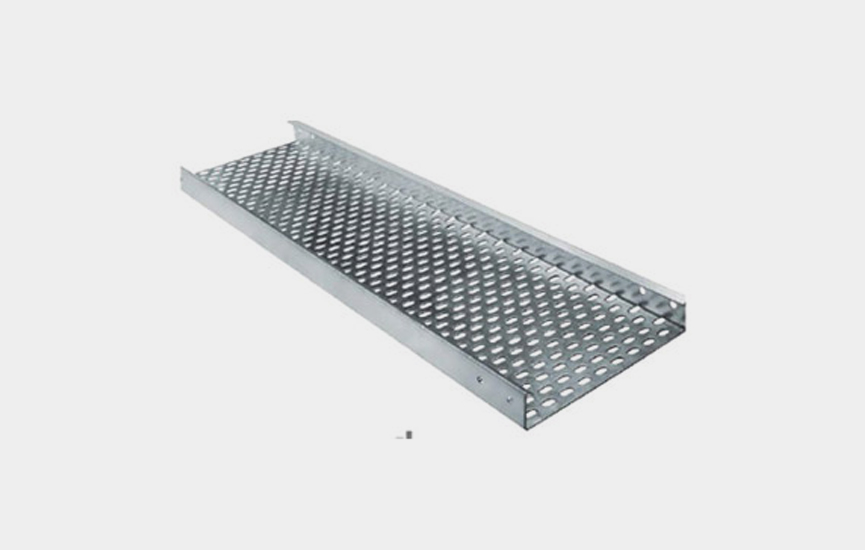

STRENGTH	Light Duty, Medium Duty & Heavy Duty
WIDTH (W)	50mm to 1200 mm
HEIGHT (H)	25mm to 100 mm
THICKNESS (T)	1.2 mm, 1.6 mm, 2mm, 2.5 mm & 3 mm
INWARD BEND (IB)	10mm to 25 mm
INCLINED BEND (ICB)	10 mm to 25mm
OUTER BEND (OB)	10 mm to 25mm
LENGTH (L)	2500mm / 3000 mm & 2444 mm( for Aluminum)

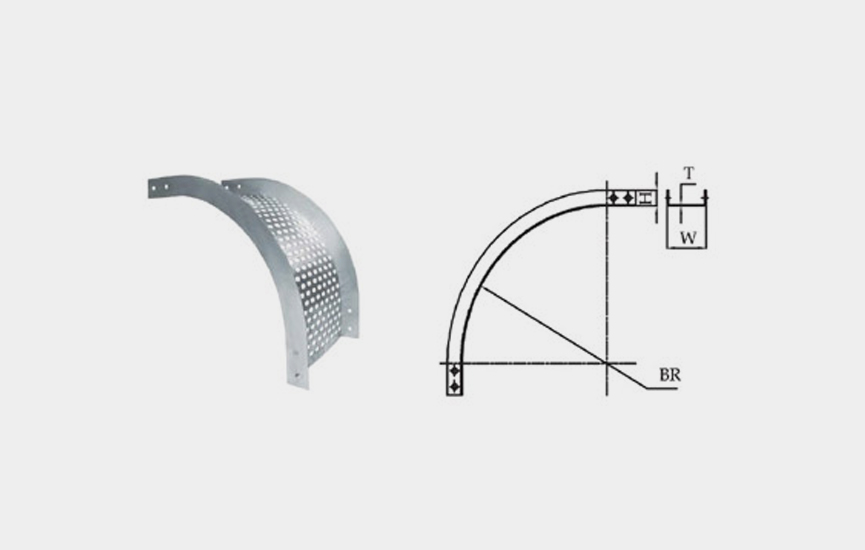

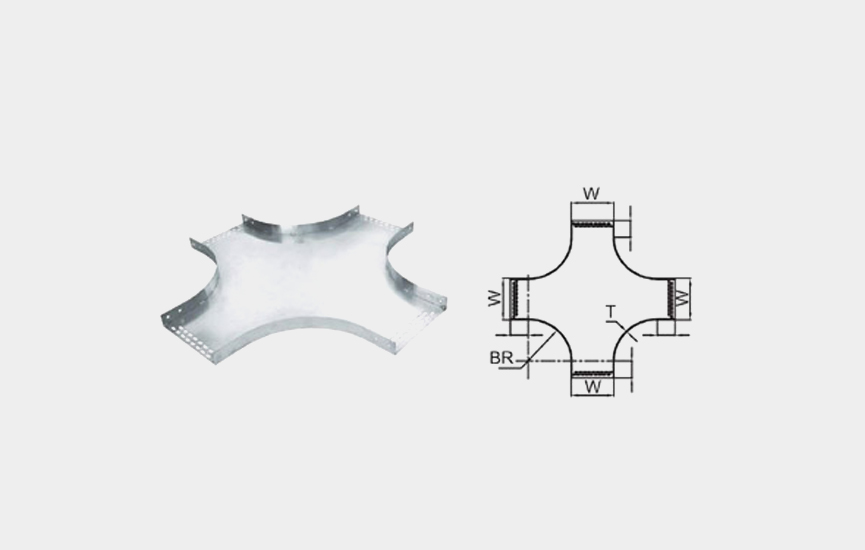

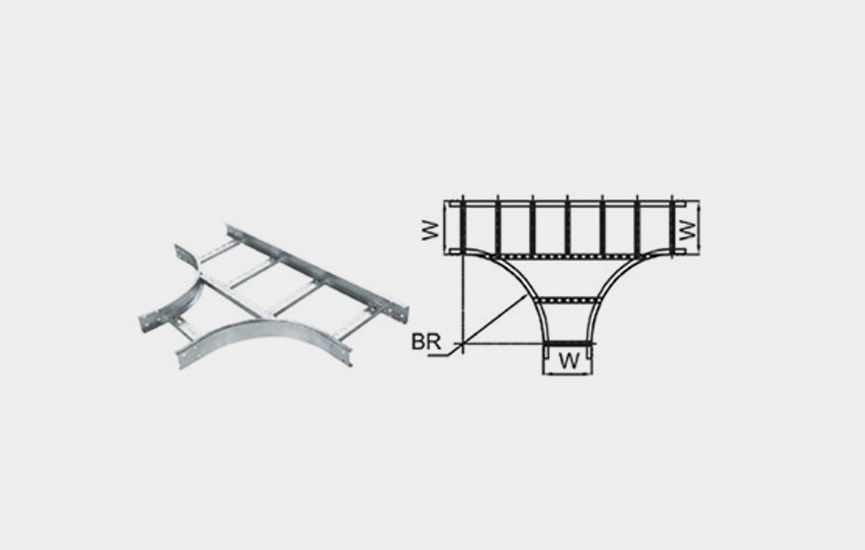

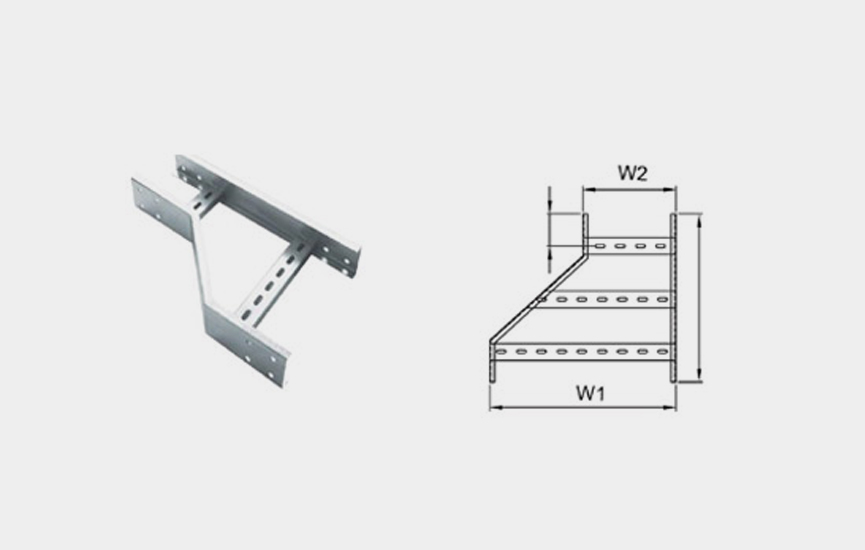

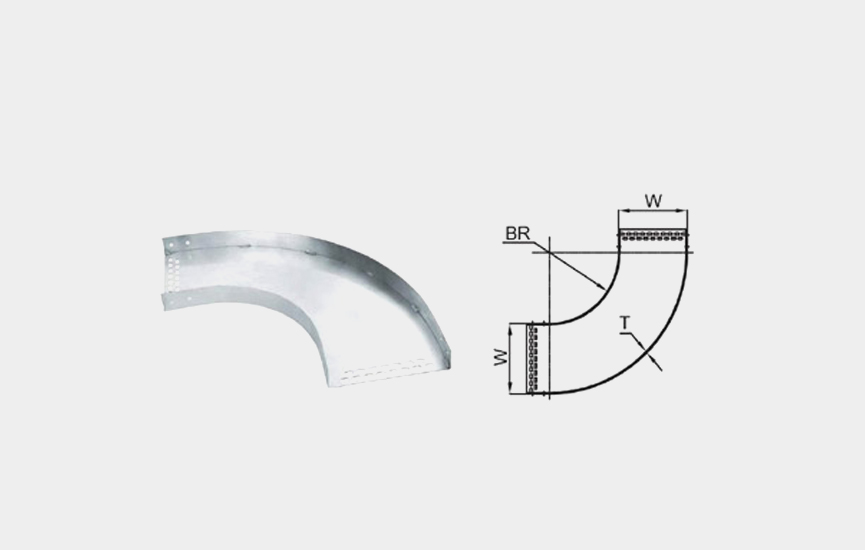

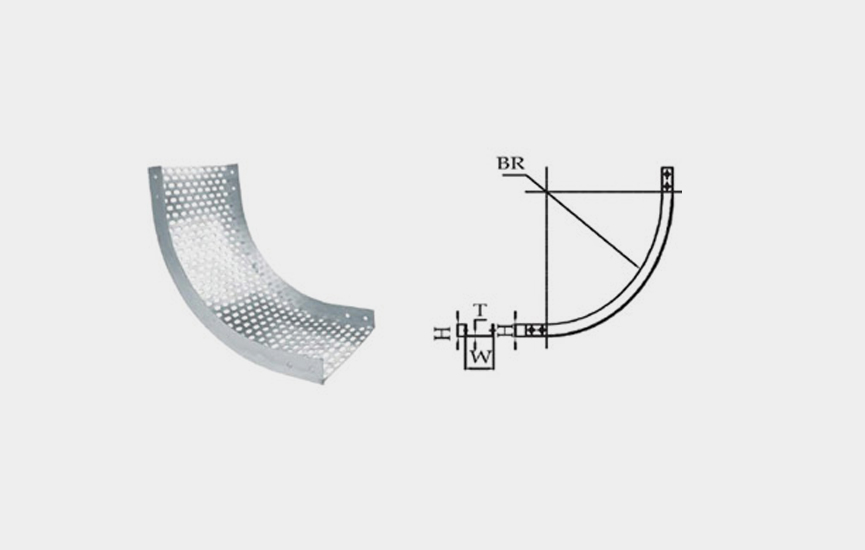

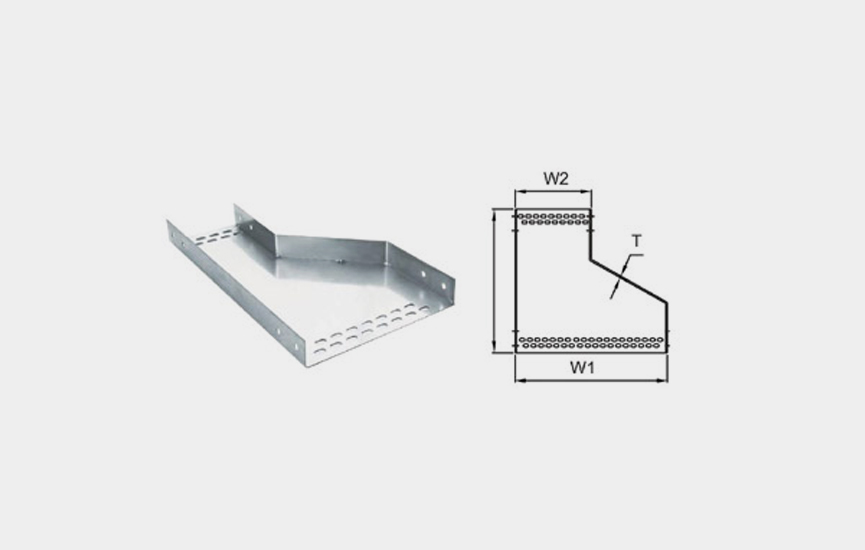

Types	Horizontal Bend, Inside Verticle Bend, Outside Vertical Bend, Tee Bend, Cross Bend, Reducer, Left Hand Reducer, Right Hand Reducer
BENDING RADIUS(BR)	150 mm to 900 mm
WIDTH(W)	As per cable Tray Width
HEIGHT (H)	As per cable Tray Height
THICKNESS(T)	As per cable Tray Thickness
FINISH	As per cable Tray Finishing

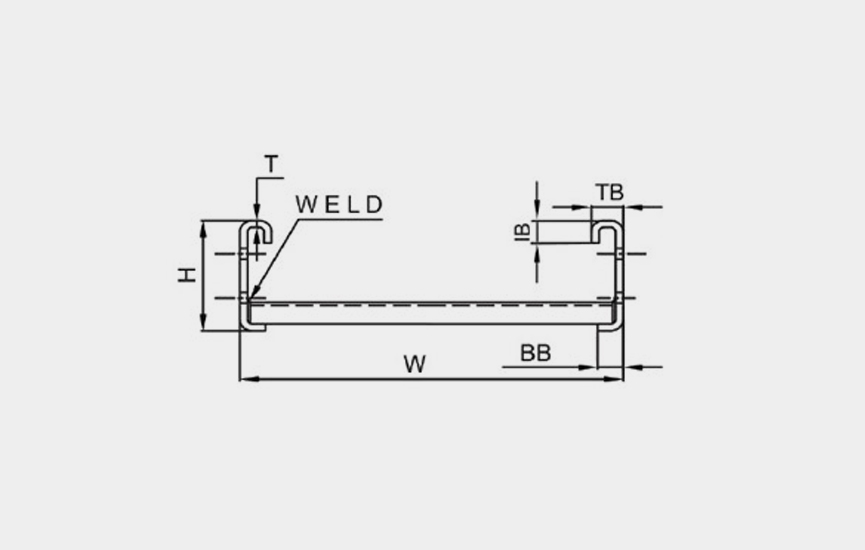

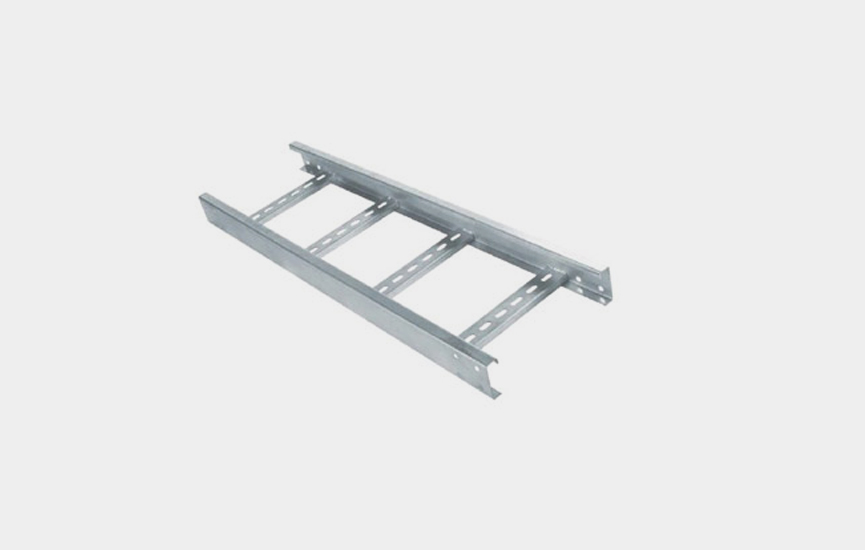

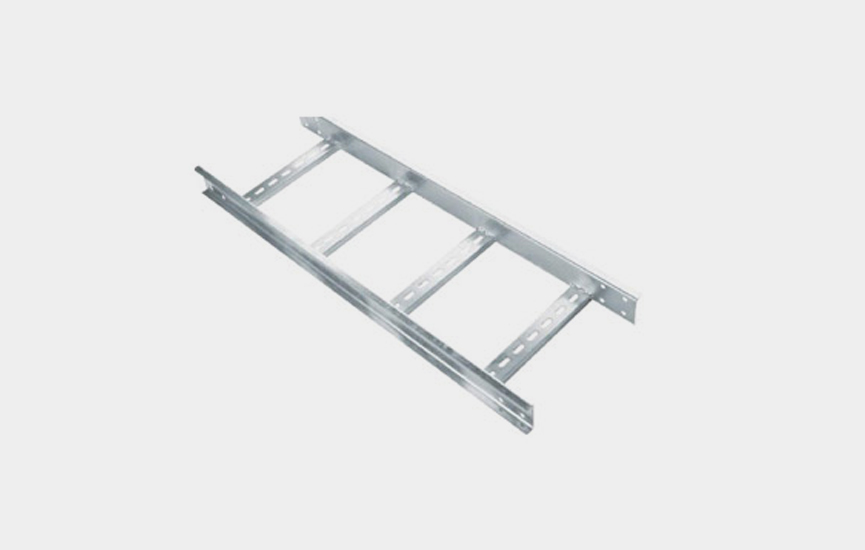

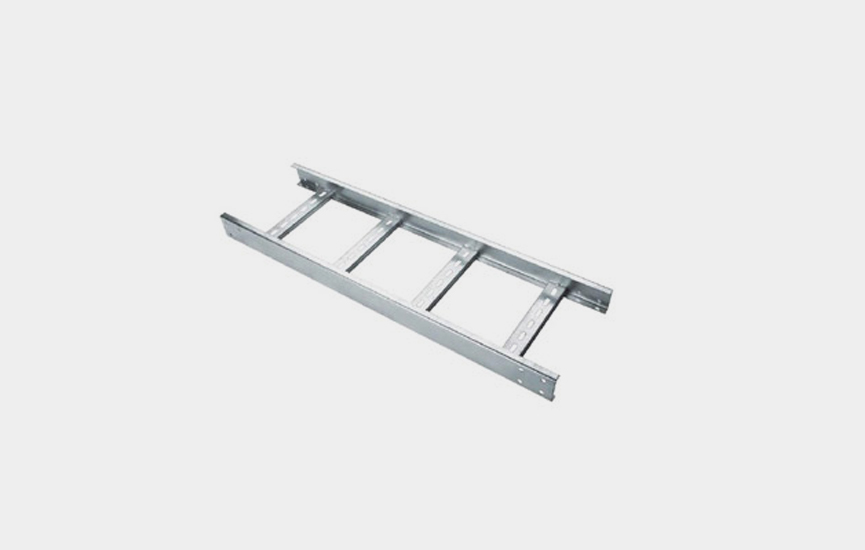

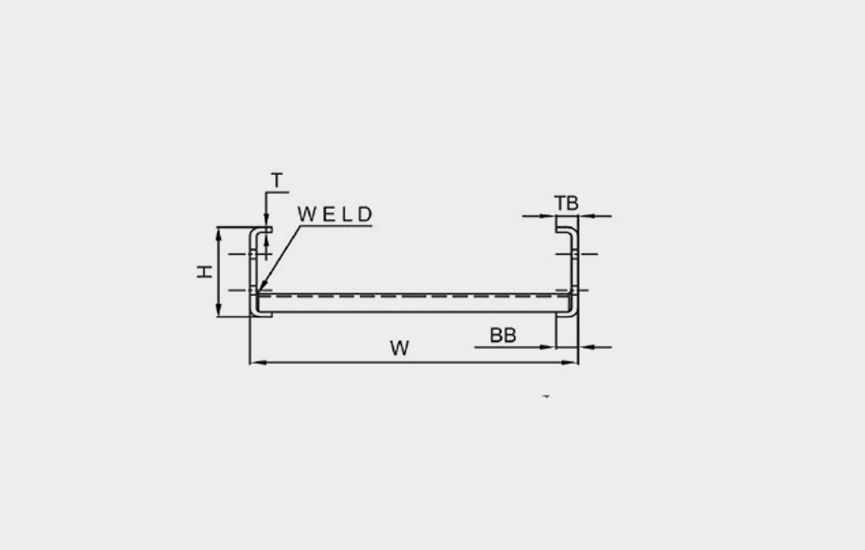

STRENGTH	Light Duty, Medium Duty, Heavy Duty

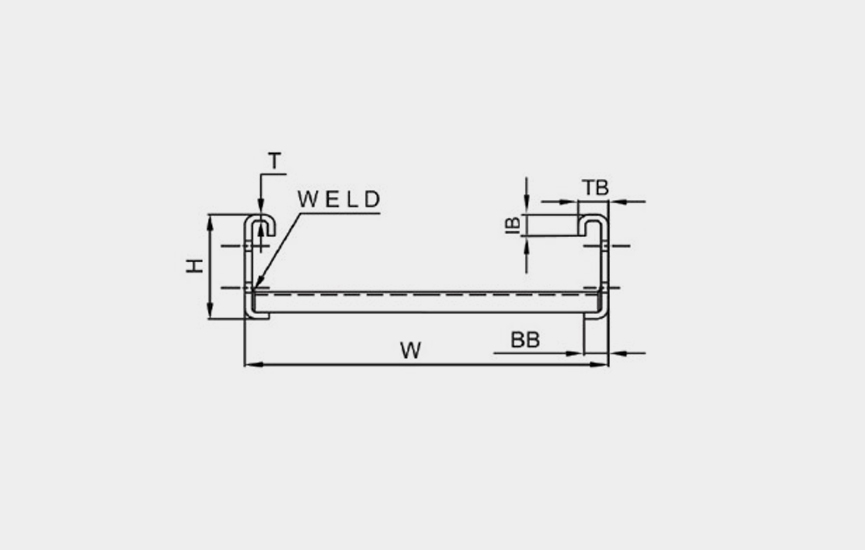

WIDTH	50 mm to 1200 mm
SIDE CHANNEL HEIGHT (H)	50 mm to 150 mm
RUN WIDTH	30 mm to 50 mm
RUN HEIGHT	10 mm to 20 mm
RUN C TO C	250 mm / 300 mm
THICKNESS (T)	1.6 mm, 2mm, 2.5mm, 3mm
INWARD BEND(IB)	10 mm to 25 mm
TOP BEND(TB)	10 mm to 25 mm
BOTTOM BEND(BB)	10 mm to 25 mm
LENGTH(L)	2500 mm / 3000 mm & 2444 mm (for Aluminium)

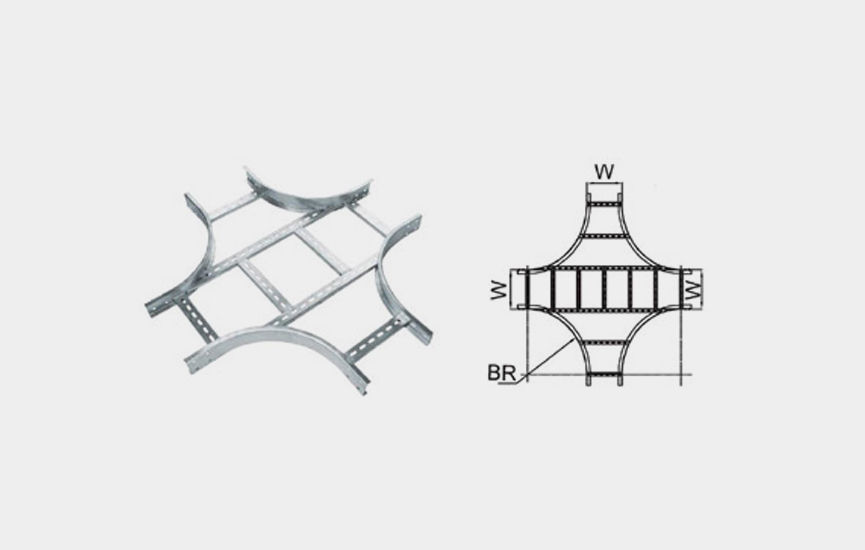

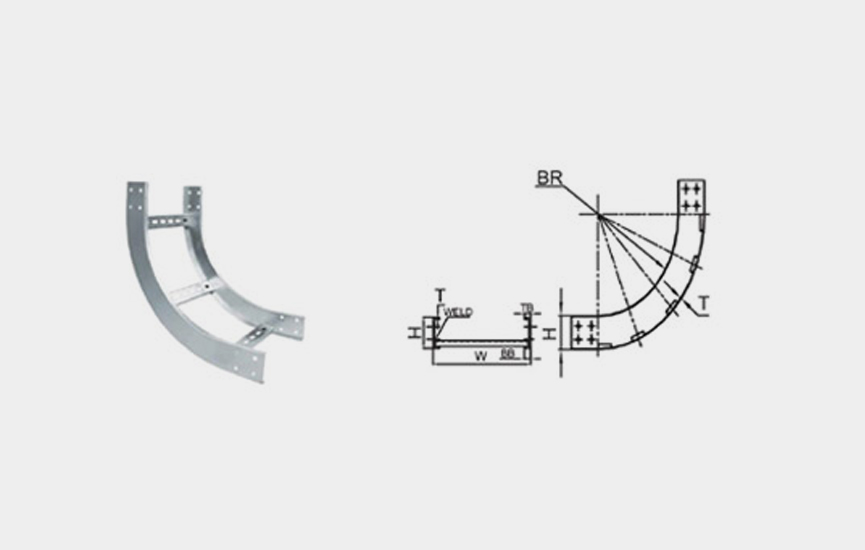

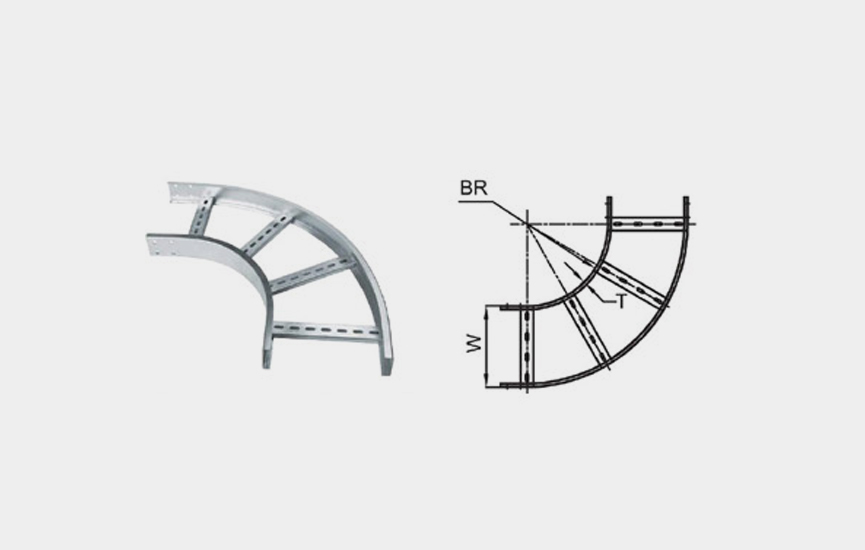

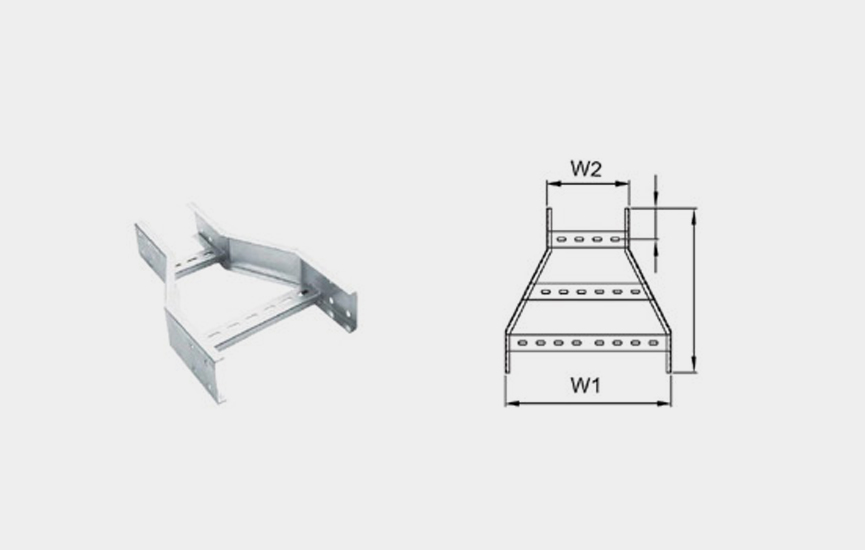

Types	Horizontal Bend, Inside Verticle Bend, Outside Vertical Bend, Tee Bend, Cross Bend, Reducer, Left Hand Reducer, Right Hand Reducer
BENDING RADIUS(BR)	150 mm to 900 mm
WIDTH(W)	As per cable Tray Width
HEIGHT (H)	As per cable Tray Height
THICKNESS(T)	As per cable Tray Thickness
FINISH	As per cable Tray Finishing
