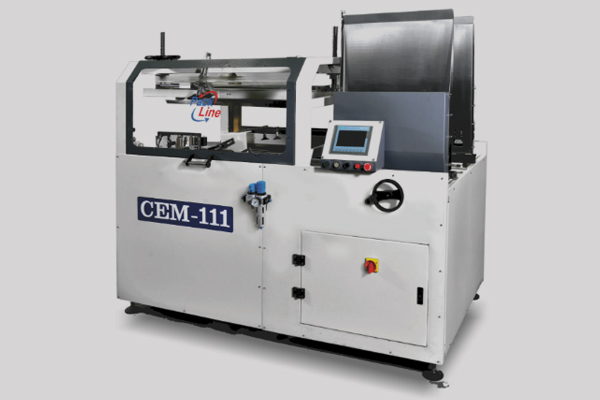

High Speed Case Erector: Model CEM-111 & CEM-112

One of the best and reliable product comes from our pack line series is our Case Erector machine that runs reliably at the stipulated speed in two different models. It is one of the easy to operate and maintainable machine. It is an ideal solution for cost cutting in terms of manpower.

This affordable case erector is packed with all versatility and feature required to meet the applications. The high quality construction and reliability features of our Pack Line series case erector facilitate all the same benefits as those gained with more expensive models..

Parameters	Specifications CEM-111	Specifications CEM-112
Machine Size	L-2400 mm, W-1250 mm, H-1850 mm	L-3560 mm, W-1450 mm, H-2050 mm
Speed	25 cases/min	40 cases/min
Case Size (mm)	L:240-510, W:190-400, H:120-380	L:240-510, W:190-400, H:120-380
Air Consumption	10 CFM at 5 bar	15 CFM at 5 bar
Electricals	1.0 kw 1 ph, 230 V, 50 Hz	1.0 kw 1 ph, 230 V, 50 Hz
Machine Weight	750 kg	1000 kg
