Palletizer

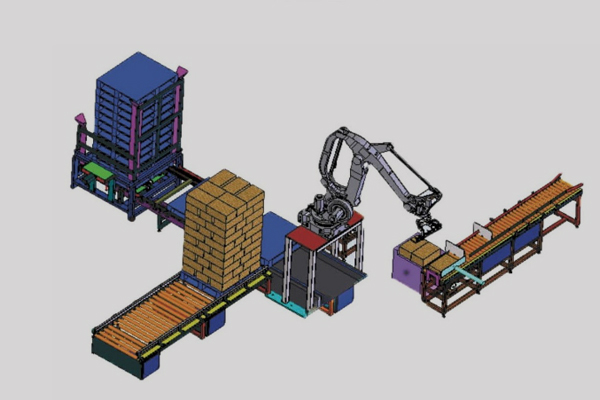

Our robotic palletizer are made with specialized features with quality, efficiency and effective palletizing process. Pack line has recognized by Yaskawa as unique expertise in applying robotic palletizing system. Single line system with single feeding lane/single lane discharge and also with multilane system. With greater precision and consistency, minimizing and reducing product loss to due to damage and also removal of human interactions and reducing work place injuries, makes this system a unique solution for your warehouse needs.

Parameters	Specifications
Vertical Reach	3393 mm
Horizontal Reach	2702 mm
Repeatability	+/- 0.2 mm
Speed	8 cycles/min
Payload	180 kgs (With pick-up head)
Pallet Size	1400 mm x 1200 mm
Electricals	5 KVA 3 phase, 440 V, 50 Hz
Machine Weight	1700 kg
