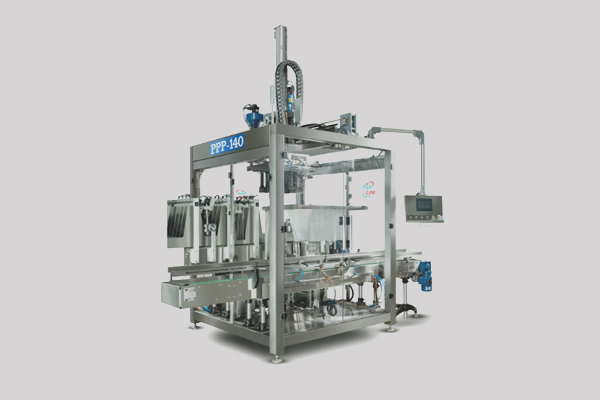

Pick And Place Packer: Model PPP-140

A simple yet rigid pick & Place case packer with robust structure, this system is an economically efficient packaging system mainly for the glass bottle packaging.

This is a two axis servo controlled vacuum gripper with intermitted servo system. It can be quickly changeover for different product and it can be integrated for packing different packing lines. With a small foot print, this pack line series pick & Placer is an economical and reliable case packer.

Parameters	Specifications
Machine Size and Machine Weight	L-3291 mm,W-1635 mm,H-3610 mm
X-Axis Travel	750 mm
Z-Axis Travel	670 mm
MOC	Robust SS-304 Tubular structure with Polycarbonate doors/guarding and safety features.
Infeed Conveyor Width (Product)	510 mm
Max Matrix Size	W : 450 mm, H : 300 mm, L : 820 mm
Max Lifting Weight	60 kgs inclusive of Gripper Heads
Case Conveyer	Suitable Case Conveyor Max Carton width : 460 mm
Pick-Up Heads	Pneumatically operated- Bottle Gripper / Clamp type
Matrix Collatation	Will be proposed separately depending upon product and packing matrix.(Not part of this machine)
Product Change Over	Push pull type pickup head design to facilitate quick changeover.Separate software recipe for each of the different product.
