Class 600 Flanges
Flawlessly engineered to perfection our range of Class 600 Flanges is offered in excellent finish. Our vast resources and expertise in product supply, has enabled us to cater to diverse needs of clients / buyers from industrial arena. Further, these are offered in 20 different nominal pipe sizes like 1/2", 3/4", 1", 1 ¼", 1 ½", 2, 2 ½", 3, 3 ½", 4", 5", 6", 8", 10", 12", 14", 16", 18", 20", 24" inches. These specific designed threaded flanges are highly reliable and appropriate choice for heavy an d large scale industries.

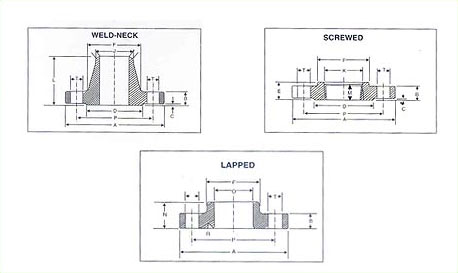

Technical Specifications
| N.B. | A | B | C | D | E | F | G | H | J | K | L | M | N | O | P | R | T | No. of Holes |
| 15 | 95 | 14.3 | 6.4 | 35 | 22 | 38 | 22.4 | 9.5 | 21.3 | 23.5 | 52 | 16 | 22 | 23.0 | 66.7 | 3.0 | 15.9 | 4 |
| 20 | 117 | 15.9 | 6.4 | 43 | 25 | 48 | 27.7 | 11.0 | 26.7 | 29.0 | 57 | 16 | 25 | 28.0 | 82.6 | 3.0 | 19.0 | 4 |
| 25 | 124 | 17.5 | 6.4 | 51 | 27 | 54 | 34.5 | 12.5 | 33.4 | 36.0 | 62 | 17 | 27 | 35.0 | 88.9 | 3.0 | 19.0 | 4 |
| 32 | 133 | 20.6 | 6.4 | 64 | 29 | 64 | 43.2 | 14.5 | 42.2 | 44.5 | 67 | 21 | 29 | 43.5 | 98.4 | 5.0 | 19.0 | 4 |
| 40 | 156 | 22.2 | 6.4 | 73 | 32 | 70 | 49.5 | 16.0 | 48.3 | 50.5 | 70 | 22 | 32 | 50.0 | 114.3 | 6.5 | 22.2 | 4 |
| 50 | 165 | 25.4 | 6.4 | 92 | 37 | 84 | 62.0 | 17.5 | 60.3 | 63.5 | 73 | 29 | 37 | 62.5 | 127.0 | 8.0 | 19.0 | 8 |
| 65 | 190 | 28.6 | 6.4 | 105 | 41 | 100 | 74.7 | 19.0 | 73.0 | 76.0 | 79 | 32 | 41 | 75.5 | 149.2 | 8.0 | 22.2 | 8 |
| 80 | 210 | 31.8 | 6.4 | 127 | 46 | 117 | 90.7 | 20.5 | 88.9 | 92.0 | 83 | 35 | 46 | 91.5 | 168.3 | 9.5 | 22.2 | 8 |
| 90 | 229 | 34.9 | 6.4 | 140 | 49 | 133 | 103.4 | - | 101.6 | 105.0 | 86 | 40 | 49 | 104.0 | 184.2 | 9.5 | 25.4 | 8 |
| 100 | 273 | 38.1 | 6.4 | 157 | 54 | 152 | 116.1 | - | 114.3 | 118.0 | 102 | 41 | 54 | 117.0 | 215.9 | 11.0 | 25.4 | 8 |
| 125 | 330 | 44.4 | 6.4 | 186 | 60 | 189 | 143.8 | - | 141.3 | 145.0 | 114 | 48 | 60 | 145.0 | 266.7 | 11.0 | 28.6 | 8 |
| 150 | 356 | 47.6 | 6.4 | 216 | 67 | 222 | 170.7 | - | 168.3 | 171.0 | 117 | 51 | 67 | 171.0 | 292.1 | 12.5 | 28.6 | 12 |
| 200 | 419 | 55.6 | 6.4 | 270 | 76 | 273 | 221.5 | - | 219.1 | 222.0 | 133 | 57 | 76 | 222.0 | 349.2 | 12.5 | 31.8 | 12 |
| 250 | 508 | 63.5 | 6.4 | 324 | 86 | 343 | 276.4 | - | 273.0 | 276.0 | 152 | 65 | 111 | 277.0 | 431.8 | 12.5 | 34.9 | 16 |
| 300 | 559 | 66.7 | 6.4 | 381 | 92 | 400 | 327.2 | - | 323.9 | 329.0 | 156 | 70 | 117 | 328.0 | 489.0 | 12.5 | 34.9 | 20 |
| 350 | 603 | 69.8 | 6.4 | 413 | 94 | 432 | 359.2 | - | 355.6 | 360.0 | 165 | 73 | 127 | 360.0 | 527.0 | 12.5 | 38.1 | 20 |
| 400 | 686 | 76.2 | 6.4 | 470 | 106 | 495 | 410.5 | - | 406.4 | 411.0 | 178 | 78 | 140 | 411.0 | 603.2 | 12.5 | 41.3 | 20 |
| 450 | 7432 | 82.6 | 6.4 | 533 | 117 | 546 | 461.8 | - | 457.2 | 462.0 | 184 | 79 | 152 | 462.0 | 654.0 | 12.5 | 44.4 | 20 |
| 500 | 813 | 88.9 | 6.4 | 584 | 122 | 610 | 513.1 | - | 508.0 | 513.0 | 190 | 83 | 165 | 514.0 | 723.9 | 12.5 | 44.4 | 24 |
| 600 | 940 | 101.6 | 6.4 | 692 | 140 | 718 | 616.0 | - | 609.6 | 614.0 | 203 | 92 | 184 | 616.0 | 838.2 | 12.5 | 50.8 | 24 |
