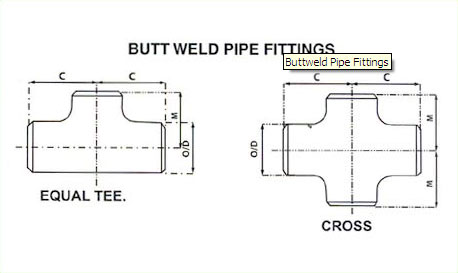

Equal Tee & Cross

We are engaged in manufacture and supply of a comprehensive range of butt weld pipe fittings, which is available in a variety of shapes such as equal tee fittings, cross equal fittings, unequal tee fittings & cross unequal fittings. Flawlessly engineered to perfection using latest machines and technology, these butt weld pipe fittings are widely used in a multitude of industries around the world. Long lasting in quality, these pipe fittings are available at competitive prices.

Technical Specifications

Nominal Pipe Size (NPS)	Outside Diameter at Bevel (O/D)	Run 'C'	Outlet 'M'
1/2''	21.3	25	25
3/4''	26.7	29	29
1''	33.4	38	38
1.1/4''	42.2	48	48
1.1/2''	48.3	57	57
2''	60.3	64	64
2.1/2''	73.0	76	76
3''	88.9	86	86
3.1/2''	101.6	95	95
4''	114.3	105	105
5''	141.3	124	124
6''	168.3	143	143
8''	219.1	178	178
10''	273.0	216	216
12''	323.8	254	254
14''	355.6	279	279
16''	406.4	305	305
18''	457.0	343	343
20''	508.0	381	381
22''	559.0	419	419
24''	610.0	432	432
26''	660.0	495	495
28''	711.0	521	521
30''	762.0	559	559
32''	813.0	597	597
34''	864.0	635	635
36''	914.0	673	673

Unequal Tee & Cross Unequal

We manufacture and supply a flawlessly engineered Unequal Tee & Cross Unequal that consists of a triplet, or a three ways and "T" pieces that can be used to either combine or split a fluid flow. These tees are capable of handling any high or low pressure flow of liquid through it. The tees are with the same inlet and outlet sizes, but clients can also avail from us 'reducing' tees as well that have one or two ends with different in dimension, this is called an unequal tee. Due to their dimensional difference, these tee fittings help with the capacity to control the volume when required. Similarly the unequal crosses offers nearly the same function as that of the tees, except for providing two 900 units of outlets opposite each other.

Technical Specifications

Nominal Pipe Size(NPS)	Outside Diameterat Bevel (O/D)S		Center-to-Center		Nominal Pipe Size(NPS)	Outside Diameterat Bevel (O/D)		Center-to-Center
	Run	Outlet	Run 'C'	Outlet 'M'		Run	Outlet	Run 'C'	Outlet 'M'
½'' x 3/8	21.3	17.3	25	25	10'' x 8''	273.0	219.1	216	203
½'' x ¼''	21.3	13.7	25	25	10'' x 6''	273.0	168.3	216	194
					10'' x 5''	273.0	141.3	216	191
¾'' x ½''	26.7	21.3	29	29	10'' x 4''	273.0	114.3	216	184
¾'' x 3/8''	26.7	17.3	29	29
					12'' x 10''	323.8	273.0	254	241
1'' x ¾''	33.4	26.7	38	38	12'' x 8''	323.8	219.1	254	229
1'' x ½''	33.4	21.3	38	38	12'' x 6''	323.8	168.3	254	219
					12'' x 5''	323.8	141.3	254	216
1.1/4'' x 1''	42.2	33.4	48	48
1.1/4'' x 3/4''	42.2	26.7	48	48	14'' x 12''	355.6	323.8	279	270
1.1/4 x ½''	42.2	21.3	48	48	14'' x 10''	355.6	273.0	279	257
					14'' x 8''	355.6	219.1	279	248
1.1/2'' x 1.1/4''	48.3	42.2	57	57	14'' x 6''	355.6	168.3	279	238
1.1/2'' x 1''	48.3	33.4	57	57
1.1/2'' x ¾	48.3	26.7	57	57	16'' x 14''	406.4	355.6	305	305
1.1/2'' x 1/2''	48.3	21.3	57	57	16'' x 12''	406.4	323.8	305	295
					16'' x 10''	406.4	273.0	305	283
2'' x 1.1/2''	60.3	48.3	64	60	16'' x 8''	406.4	219.1	305	273
2'' x 1.1/4''	60.3	42.2	64	57	16'' x 6''	406.4	168.3	305	264
2'' x 1''	60.3	33.4	64	51
2'' x 3/4''	60.3	26.7	64	44	18'' x 16''	457.0	406.4	343	330
					18'' x 14''	457.0	355.6	343	330
2.1/2'' x 2''	73.0	60.3	76	70	18'' x 12''	457.0	323.8	343	321
2.1/2'' x 1.1/2''	73.0	48.3	76	67	18'' x 10''	457.0	273.0	343	308
2.1/2'' x 1.1/4''	73.0	42.2	76	64	18'' x 8''	457.0	219.1	343	298
2.1/2'' x 1''	73.0	33.4	76	57
					20'' x 18''	508.0	457.0	381	368
3'' x 2.1/2''	88.9	73.0	86	83	20'' x 16''	508.0	406.4	381	356
3'' x 2''	88.9	60.3	86	76	20'' x 14''	508.0	355.6	381	356
3'' x 1.1/2''	88.9	48.3	86	73	20'' x 12''	508.0	323.8	381	346
3'' x 1.1/4''	88.9	42.2	86	70	20'' x 10''	508.0	273.0	381	333
					20'' x 8''	508.0	219.1	381	324
3.1/2'' x 3''	101.6	88.9	95	92
3.1/2'' x 2.1/2''	101.6	73.0	95	89	22'' x 20''	559.0	508.0	419	406
3.1/2'' x 2''	101.6	60.3	95	83	22'' x 18''	559.0	457.0	419	394
3.1/2'' x 1.1/2''	101.6	48.3	95	79	22'' x 16''	559.0	406.4	419	381
					22'' x 14''	559.0	355.6	419	381
4'' x 3.1/2''	114.3	101.6	105	102	22'' x 12''	559.0	323.8	419	371
4'' x 3''	114.3	88.9	105	98	22'' x 10''	559.0	273.0	419	359
4'' x 2.1/2''	114.3	73.0	105	95
4'' x 2''	114.3	60.3	105	89	24'' x 22''	610.0	559.0	432	432
4'' x 1.1/2''	114.3	48.3	105	86	24'' x 20''	610.0	508.0	432	432
					24'' x 18''	610.0	457.0	432	419
5'' x 4''	141.3	114.3	124	117	24'' x 16''	610.0	406.4	432	406
5'' x 3.1/2''	141.3	101.6	124	114	24'' x 14''	610.0	355.6	432	406
5'' x 3''	141.3	88.9	124	111	24'' x 12''	610.0	323.8	432	397
5'' x 2.1/2''	141.3	73.0	124	108	24'' x 10''	610.0	273.0	432	384
5'' x 2''	141.3	60.3	124	105
					26'' x 24''	660.0	610.0	495	483
6'' x 5''	168.3	141.3	143	137	26'' x 22''	660.0	559.0	495	470
6'' x 4''	168.3	114.3	143	130	26'' x 20''	660.0	508.0	495	457
6'' x 3.1/2''	168.3	101.6	143	127	26'' x 18''	660.0	457.0	495	444
6'' x 3''	168.3	88.9	143	124	26'' x 16''	660.0	406.4	495	432
6'' x 2.1/2''	168.3	73.0	143	121	26'' x 14''	660.0	355.6	495	432
					26'' x 12''	660.0	323.8	495	422
8'' x 6''	219.1	168.3	178	168
8'' x 5''	219.1	141.3	178	162	28'' x 26''	711.0	660.0	521	521
8'' x 4''	219.1	114.3	178	156	28'' x 24''	711.0	610.0	521	508
8'' x 3.1/2''	219.1	101.6	178	152	28'' x 22''	711.0	559.0	521	495
					28'' x 20''	711.0	508.0	521	483
