Butt Weld Pipe Fittings
Navkar Fittings & Forgings Private LimitedNavkar Fittings & Forgings is one of the leaders amongst manufacturers and exporters of high quality pipe fittings, buttweld and socketweld fittings in alloy steel, carbon steel, stainless steel, nickel alloys. Our products have found various applications in different industrial requirements, including - Oil & Gas, Chemical, Petrochemical, Power Plant, Pulp & Paper, Environmental & Water Projects, Engineering Projects and more.

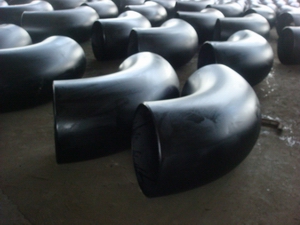

Elbow (90o, 45o, 180o)
With a vision to be to be an industry leader in all our manufacture of best quality butt weld pipe fittings, we bring forth our range of Elbow (90o, 45o, 180o) that are suitable to meet diverse material specification. All of these angular elbows are extremely durable and are available in various shapes like bent, triangular, rectangular etc. due to these high precision, strong made elbows, help in maintaining multiple connection of pipes and to prevent fluid leakage.
90o - radius - 10S - with Light I.P.S- available in Stainless steel, Nickel & Aluminium alloys
45o-radius- Standard I.P.S- available in Stainless steel, Nickel & Aluminium alloys
180o-radius- Extra Heavy I.P.S- available in Stainless steel, Nickel & Aluminium alloys
Application Areas :
- Gas Plants
- Power Plants
- Chemical Plants
- Chemical Plants
- Metallurgy Industry
- Ship-building Industry
- Construction Industry
Technical Specifications as per B 16.9
| Nominal Pipe Size (NPS) |
Outside Diameter at Bevel (O/D) |
Dimension A | Dimension B | Center to Center O |
Back to Face K |
| 1/2'' | 21.3 | 38.0 | 16 | 76 | 48 |
| 3/4'' | 26.7 | 38.0 | 19 | 76 | 51 |
| 1'' | 33.4 | 38.0 | 22 | 76 | 56 |
| 1.1/4'' | 42.2 | 48.0 | 25 | 95 | 70 |
| 1.1/2'' | 48.3 | 57.0 | 29 | 114 | 83 |
| 2'' | 60.3 | 76.0 | 35 | 152 | 106 |
| 2.1/2'' | 73.0 | 95.0 | 44 | 190 | 132 |
| 3'' | 88.9 | 114.0 | 51 | 229 | 159 |
| 3.1/2'' | 101.6 | 133.0 | 57 | 267 | 184 |
| 4'' | 114.3 | 152.0 | 64 | 305 | 210 |
| 5'' | 141.3 | 190.0 | 79 | 381 | 262 |
| 6'' | 168.3 | 229.0 | 95 | 457 | 313 |
| 8'' | 219.1 | 305.0 | 127 | 610 | 414 |
| 10'' | 273.0 | 381.0 | 159 | 762 | 518 |
| 12'' | 323.8 | 457.0 | 190 | 914 | 619 |
| 14'' | 355.6 | 533.0 | 222 | 1067 | 711 |
| 16'' | 406.4 | 610.0 | 254 | 1219 | 813 |
| 18'' | 457.0 | 686.0 | 286 | 1372 | 914 |
| 20'' | 508.0 | 762.0 | 318 | 1524 | 1016 |
| 22'' | 559.0 | 838.0 | 343 | 1676 | 1118 |
| 24'' | 610.0 | 914.0 | 381 | 1829 | 1219 |
| 26'' | 660.0 | 991.0 | 406 | --- | --- |
| 28'' | 711.0 | 1067.0 | 438 | --- | --- |
| 30'' | 762.0 | 1143.0 | 470 | --- | --- |
| 32'' | 813.0 | 1219.0 | 502 | --- | --- |
| 34'' | 864.0 | 1295.0 | 533 | --- | --- |
| 36'' | 914.0 | 1372.0 | 565 | --- | --- |
Technical Specifications as per B 16.28
| Nominal Pipe Size (NPS) |
Outside Diameter at Bevel (O/D) |
Dimension A | Dimension B | Center to Center O |
Back to Face K |
| 1/2'' | 21.3 | --- | --- | --- | --- |
| 3/4'' | 26.7 | --- | --- | --- | --- |
| 1'' | 33.4 | 25 | --- | 51 | 41 |
| 1.1/4'' | 42.2 | 32 | --- | 64 | 52 |
| 1.1/2'' | 48.3 | 38 | --- | 76 | 62 |
| 2'' | 60.3 | 51 | --- | 102 | 81 |
| 2.1/2'' | 73.0 | 64 | --- | 127 | 100 |
| 3'' | 88.9 | 76 | 31.6 | 152 | 121 |
| 3.1/2'' | 101.6 | 89 | 36.8 | 178 | 140 |
| 4'' | 114.3 | 102 | 42.1 | 203 | 159 |
| 5'' | 141.3 | 127 | 52.6 | 254 | 197 |
| 6'' | 168.3 | 152 | 63.4 | 305 | 237 |
| 8'' | 219.1 | 203 | 84.2 | 406 | 313 |
| 10'' | 273.0 | 254 | 105.2 | 508 | 391 |
| 12'' | 323.8 | 305 | 126.3 | 610 | 467 |
| 14'' | 355.6 | 356 | 147.3 | 711 | 533 |
| 16'' | 406.4 | 406 | 168.3 | 813 | 610 |
| 18'' | 457.0 | 457 | 189.4 | 914 | 686 |
| 20'' | 508.0 | 508 | 210.4 | 1016 | 762 |
| 22'' | 559.0 | 559 | 231.5 | 1118 | 838 |
| 24'' | 610.0 | 610 | 252.5 | 1219 | 914 |
